Installing the Autosampler
Installing the Thermostatted Autosampler
13 If an Agilent Chemstation is the controller, connect either
❏ The GPIB cable to the detector
❏ The LAN connector to the LAN interface
14 Connect the APG remote cable (optional) for non Agilent 1100 series
instruments.
15 Turn ON power by pushing the button at the lower left hand side of the
sampler.
NOTE The sampler is turned ON when the line power switch is pressed and the
green indicator lamp is illuminated. The detector is turned OFF when the
line power switch is protruding and the green light is OFF.
WARNING To disconnect the sampler from the line, unplug the power cord. The
power supply still uses some power, even if the power switch at the front
of the panel is turned OFF.
WARNING To avoid personal injury, keep fingers away from the needle area during
Autosampler operation. Do not attempt to insert or remove a vial or a
plate when the needle is positioned.

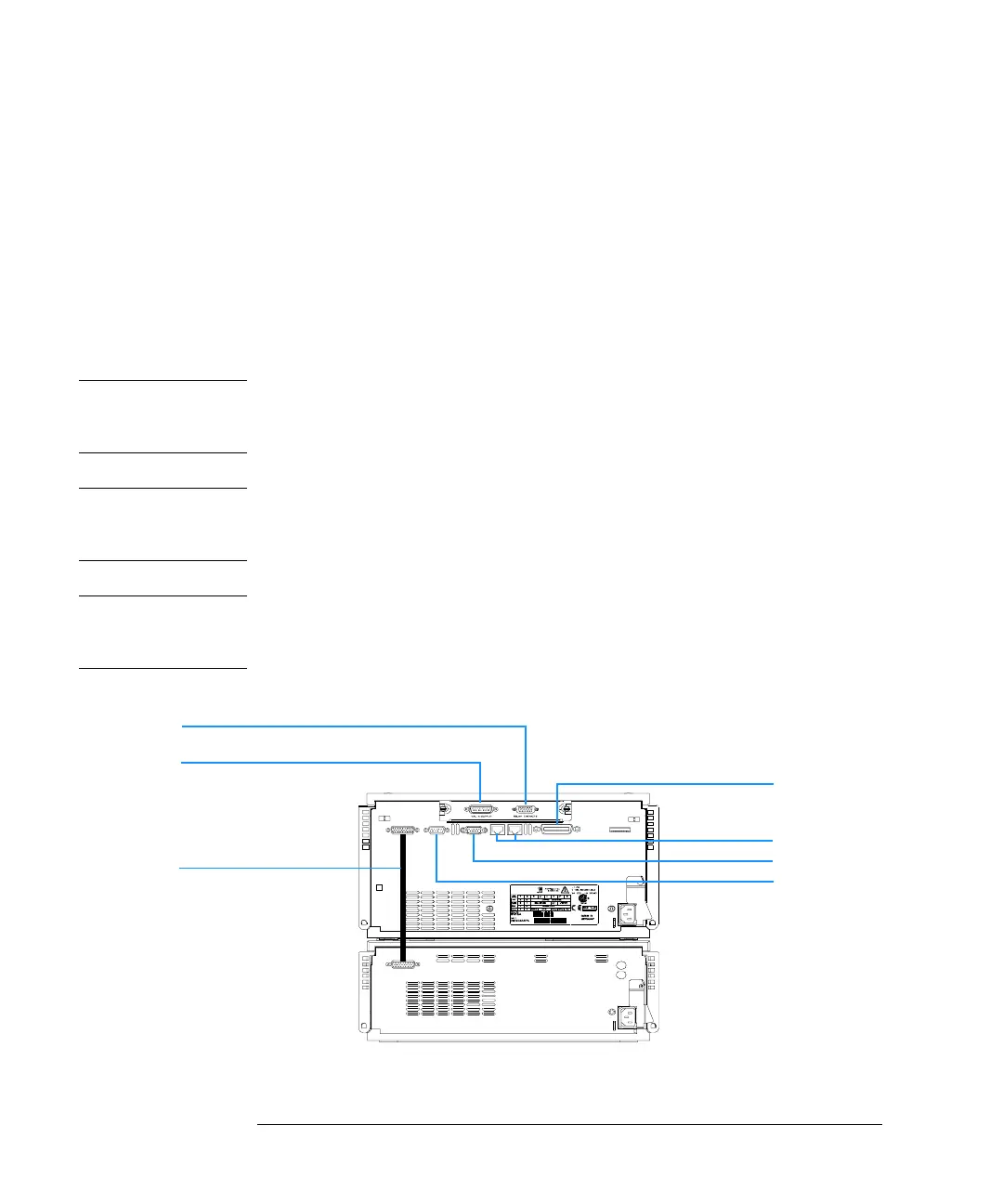

Figure 9 Cable Connections
GPIB
RS232
CAN-bu
Remote
Vial number
Relay
Thermostat -
Autosampler cable
