Introduction to the Autosampler
Electrical Connections
Electrical Connections
WARNING Never use cables other than the ones supplied by Agilent Technologies
to ensure proper functionality and compliance with safety or EMC
regulations.

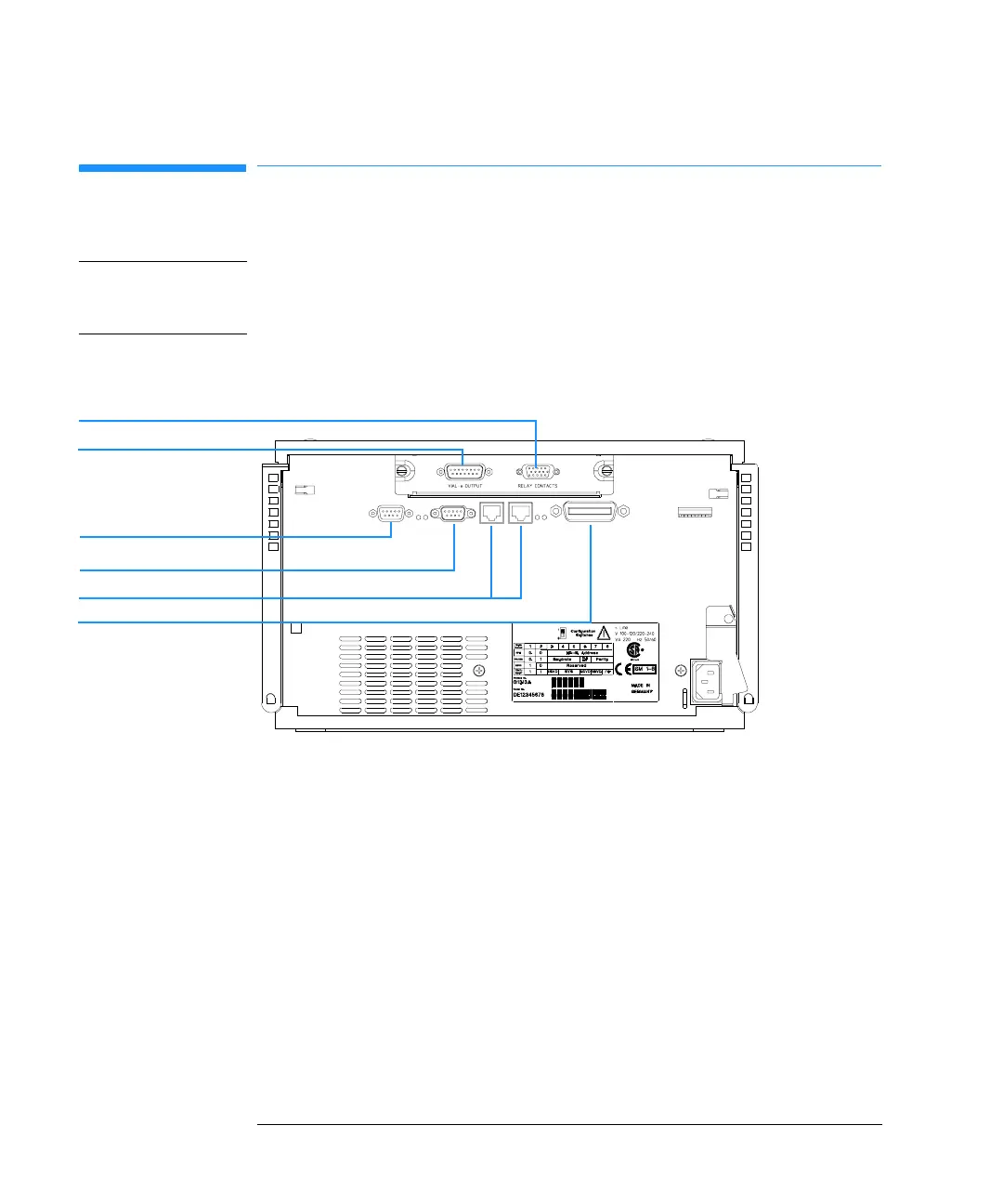

Figure 37 Autosampler Electrical Connections
• The GPIB connector is used to connect the autosamplers with a
computer. The address and control switch module next to the GPIB
connector determines the GPIB address of your autosamplers. The
switches are preset to a default address (see Table 50 on page 232)
which is recognized once after power on.
• The CAN bus is a serial bus with high-speed data transfer. The two
connectors for the CAN bus are used for internal Agilent 1100 Series
module data transfer and synchronization.
• The REMOTE connector may be used in combination with other
analytical instruments from Agilent Technologies if you want to use
features such as common shut down, prepare, and so on.
• The RS-232 connector may be used to control the autosamplers from a
computer through an RS-232 connection, using appropriate software.
GPIB
RS232C
CAN-bus
Remote
Vial number output
Relay contacts
