Web Interface 20
Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide 309
Recalling Files via the Web Interface
To recall setup files, reference waveform data files, or mask files from
your PC via the oscilloscope's web interface:
1 Access the oscilloscope's web interface (see "Accessing the Web
Interface" on page 302).
2 When the oscilloscope's web interface is displayed, select the Save/Recall
tab from the left side of the Welcome screen.
3 Click the Recall link.

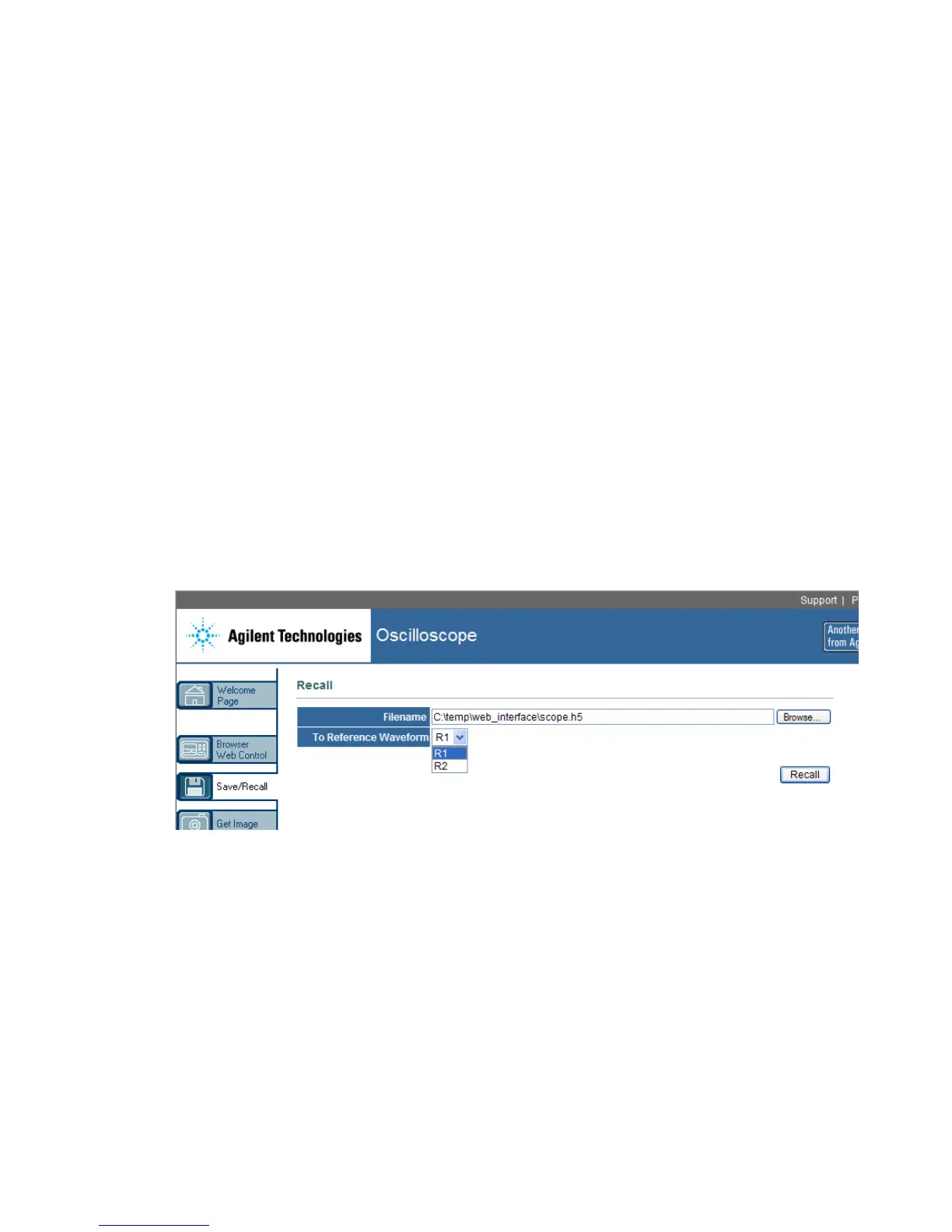

4 On the Recall page:
a Click Browse....
b In the "Choose file" dialog, select the file you want to recall; then,
click Open.
c When recalling reference waveform data files, select the To Reference
Waveform location.
d Click Recall.
Get Image
To save (or print) the oscilloscope's display from the web interface:
1 Access the oscilloscope's web interface (see "Accessing the Web
Interface" on page 302).
