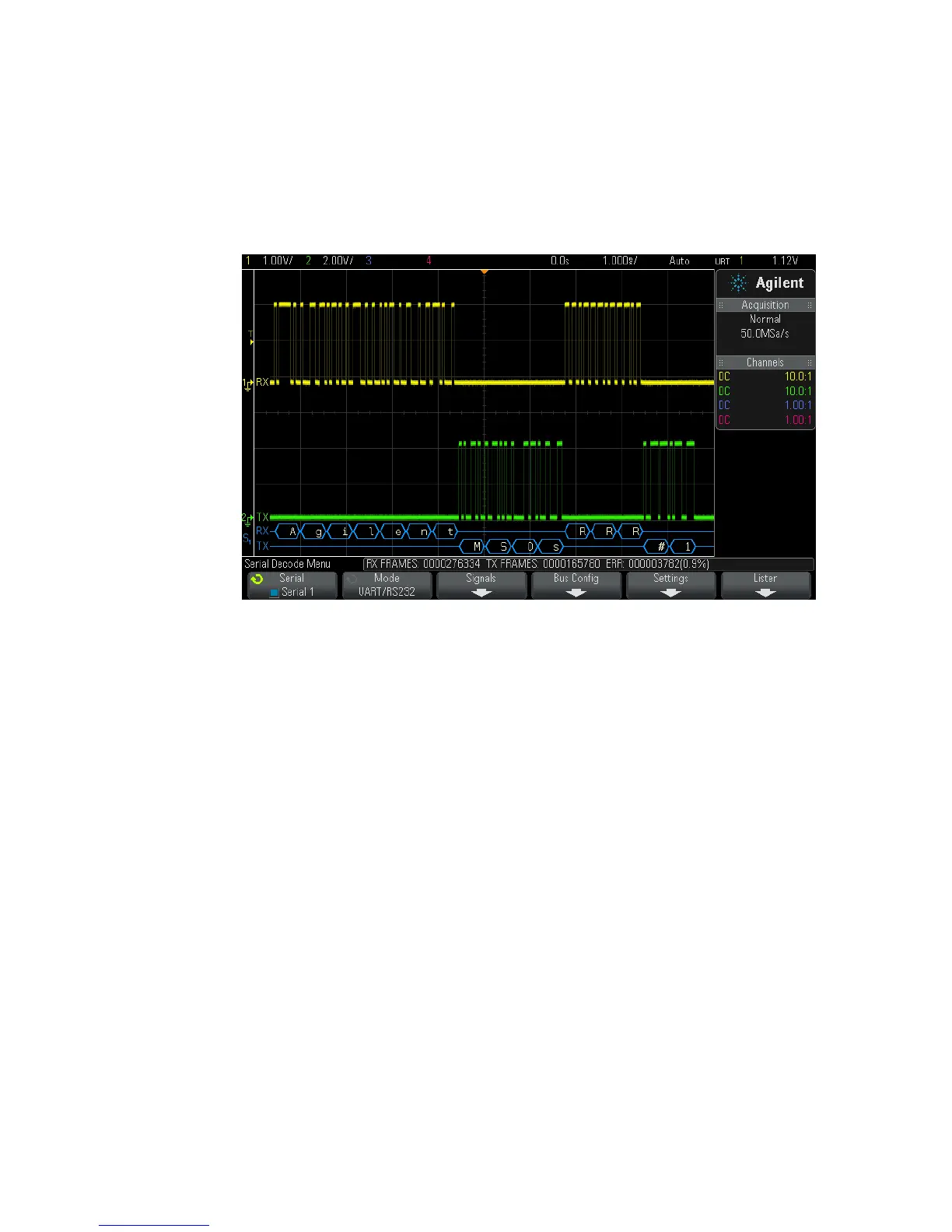

Interpreting UART/RS232 Decode
• Angled waveforms show an active bus (inside a packet/frame).
• Mid- level blue lines show an idle bus.
• When using 5- 8 bit formats, the decoded data is displayed in white (in
binary, hex, or ASCII).
• When using the 9 bit format, all data words are displayed in green,
including the 9th bit. The 9th bit is displayed on the left.
• When a data word value is selected for framing, it is displayed in light
blue. When using 9- bit data words, the 9th bit will also be displayed in
light blue.
• Decoded text is truncated at the end of the associated frame when
there is insufficient space within frame boundaries.
• Pink vertical bars indicate you need to expand the horizontal scale (and
run again) to see decode.
• When the horizontal scale setting does not permit the display of all
available decoded data, red dots will appear in the decoded bus to
mark the location of hidden data. Expand the horizontal scale to allow
the data to display.
• An unknown (undefined) bus is shown in red.
