Note:
If you do not see this window, check to see if the window is hidden behind your browser
window or your web browser settings are set to block pop-ups. To use this feature, you need to
set your web browser to allow pop-ups for your instrument’s IP address.
Remote SCPI commands requires the Telnet feature on the computer. The Telnet feature is
available from a variety of sources. Some software updates can block (break) this Telnet
connection (e.g. Internet Explorer 7). When using Internet Explorer as a browser, only versions
<Internet Explorer 7 enable the Web-Enabled MXG SCPI feature.

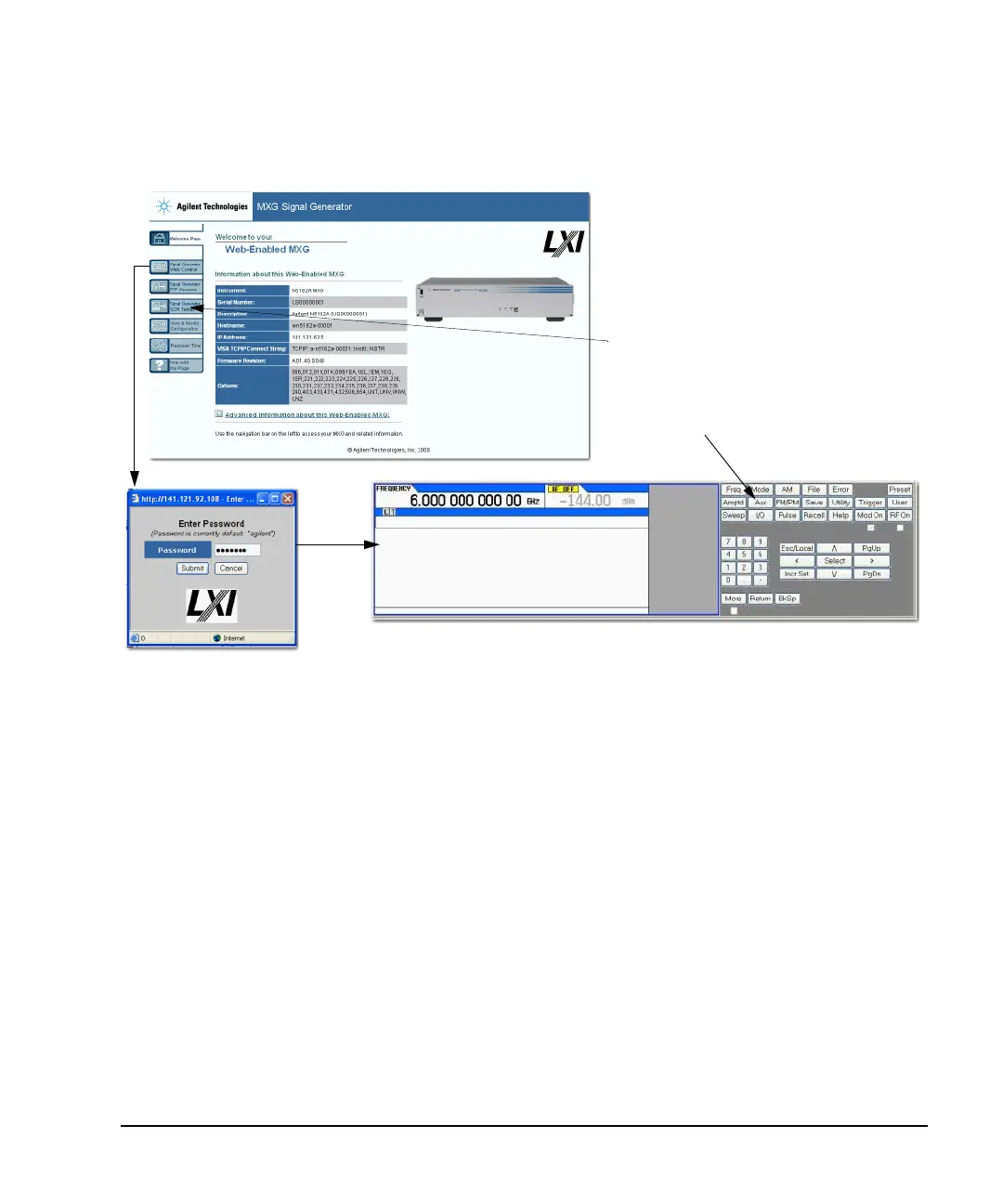

To operate the signal generator, click the keys.
The Agilent MXG ATE supports LXI Class B*
functionality. For more information on the LXI
standards, refer to
http://www.lxistandard.org/home.
*LXI Class B Compliance testing using IEEE
1588-2008 not available at release.
If the SCPI Telnet softkey is not active, to display the SCPI
Telnet box:
1) On the PC, click Start > Run
2) In the dialogue box type: Telnet xxx.xxx.xxx.xx
[IP address of MXG] 5024 [This is the port number for
connecting to the MXG.]
Note: Telnet port 5023 is available for backwards
compatibility (i.e
. for firmware ver
sions <A.01
.50).
To Next Page
