Agilent N5161A/62A/81A/82A/83A MXG Signal Generators Installation Guide 11
Getting Started
Configuring the Display (N5181A/82A/83A Only)
Configuring the Display (N5181A/82A/83A Only)
1
Screen saver settings are persistent states; they are unaffected by preset or a power cycle.
Use the arrow keys, numeric keypad, or front panel knob to adjust numeric values.

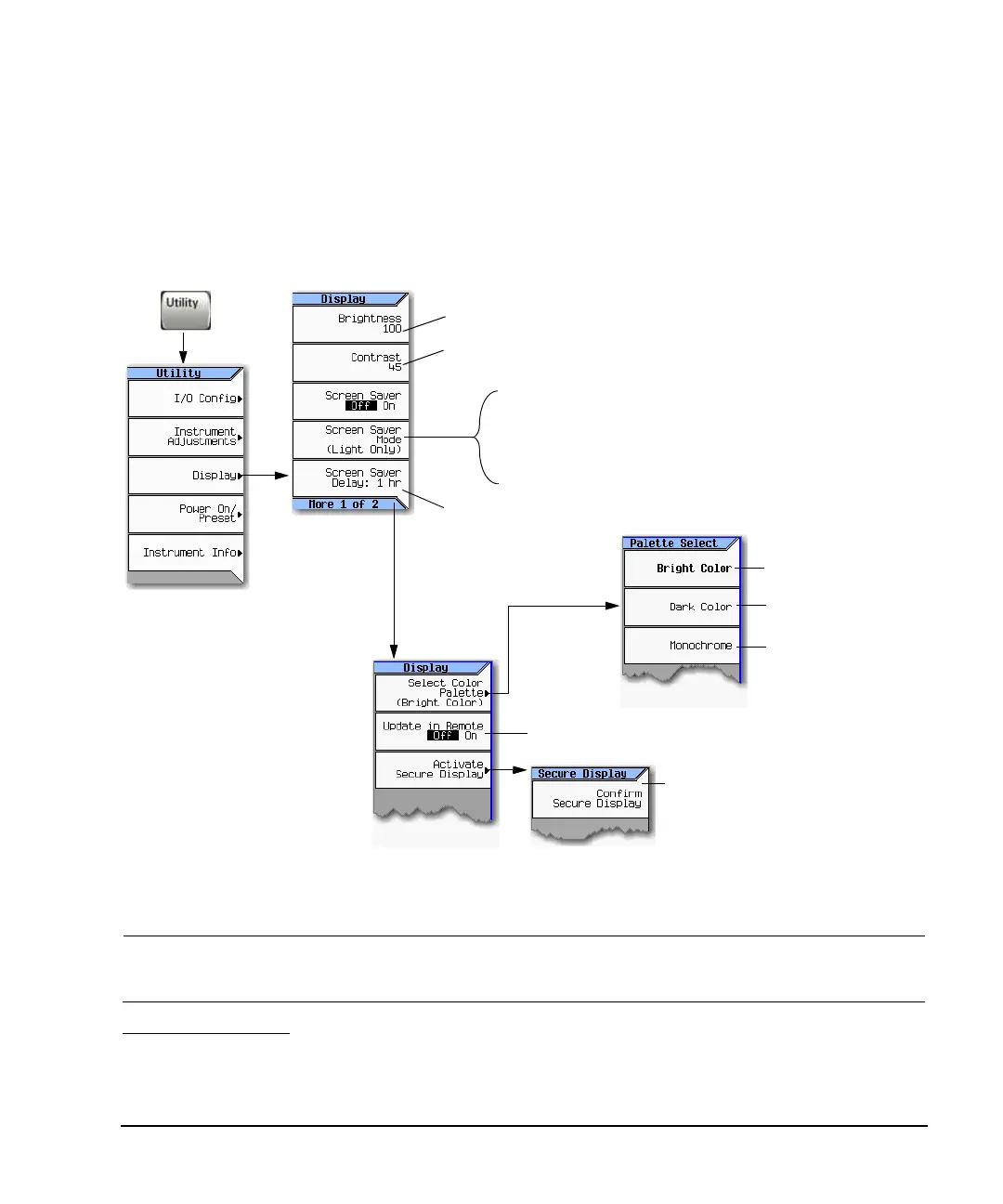

Figure 2-3 Display Softkeys
NOTE With both brightness and contrast set to minimum, the display may be too dark to see the softkeys. If this
happens, use Figure 2-3 to locate the brightness and contrast softkeys and adjust their values so that you can
see the display.
1
For the N5161A/62A the softkey menus and features mentioned in this guide are only available through the Web-Enabled MXG
or through SCPI commands. Refer to the “Configuring the MXG ATE” on page 7, the Installation Guide, the Programming
Guide, and to the SCPI Command Reference.
For details on a key, press Help and then the desired key.
Range: 0—100
Range: 35—55
Range: 1—12 hours, in 1 hour increments
Light Only turns the display light off, leaving the text visible at a low intensity.
Light & Text turns the display light and the text off.
If the display remains unchanged for long periods of time, use this mode to prevent the tex
from burning the display.
When on, commands executed through the remote control bus
update the signal generator display accordingly.
Bright without color
Dark text on a light background
Light text on a dark background
The display blanks, except for the message
Secure Display Activated, and the front panel keys
are disabled.
For information on using the secure display, refer to
the User’s Guide.
