Agilent N5161A/62A/81A/82A/83A MXG Signal Generators Installation Guide 27
Operation Verification
Checking the Output Power
N5183A Test Procedure

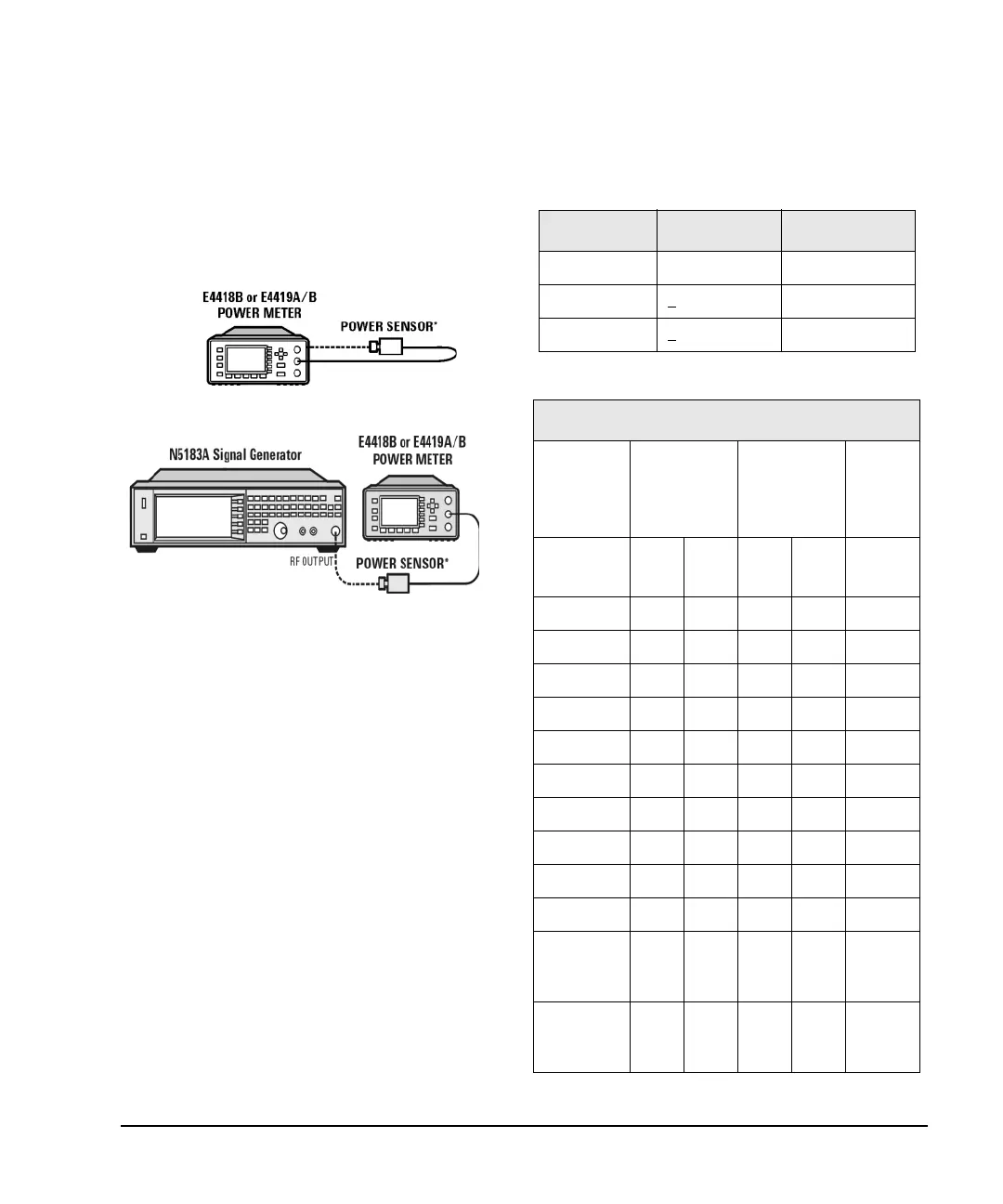

Test Setup
1. Zero and calibrate the power sensor to the power
meter:
2. Connect the equipment as shown:
3. Preset the signal generator: Press
Preset.
4. Turn RF on: Press RF On/Off so that the RF On/Off
LED lights.
5. Turn modulation off: Press
Mod On/Off so that the
Mod On/Off LED turns off.
6. Set the frequency: Press
Frequency and enter the first
frequency value listed in Table 3-8.
7. Set the amplitude: Press
Amplitude and enter the
amplitude value for that frequency.
8. Configure the power meter for the measurement.
a. Press the
Frequency Cal Fac button on the
power meter.
b. Select a power meter channel (if applicable).
c. Use the arrow keys to enter the frequency at
which to measure the power.
9. Measure the output power level.
10. Repeat steps 6 through 9 to measure power at each of
the 15 frequencies listed in Table 3-8.
11. Confirm that the measured power levels are within the
limits listed in the table.
*Refer to Table 3-7
on page 27
Table 3-7 Power Sensors by Frequency and Options
N5183A Frequency Power Sensor
Option 520/540 < 5GHz E9304A
Option 520 >
5GHz 8485A
Option 540 >
5GHz 8487A
Table 3-8 Leveled Output Power Limits
N5183A Output Power
Frequency Amplitude
(dBm)
Standard
Power
Amplitude
(dBm)
Option 1EA
Limits
a
b
(dB)
a.Limit values are due to power meter uncertainty.
520 532/
540
520 532/
540
200 MHz 11 7 15 14 ±2
300 MHz 11 7 15 14 ±2
500 MHz 11 7 15 14 ±2
800 MHz 11 7 15 14 ±2
1.0 GHz 11 7 15 14 ±2
2.0 GHz 11 7 15 14 ±2
3.1 GHz 11 7 15 14 ±2
5.0 GHz 11 7 18 15 ±2
10 GHz 11 7 18 15 ±2
20 GHz 11 7 18 13 ±2
31.8 GHz
(Option
532)
-- 7 -- 13 ±2
40 GHz
(Option
540)
-- 7 -- 12 ±2
