3 Functions and Measurements
58 N9342C/43C/44C User’s Guide
To Make a Basic Average Power Measurement
You can follow the steps below to make a basic
average power measurement.
1 Press [Preset] to perform a factory preset.
2 Press [MODE] > {Power Meter} > [ENTER] to turn on
the power meter.
3 Zero and calibrate the meter. Press {Zeroing} to
make a zero operation of the power sensor
followed by a calibration operation.
4 Connect the power sensor to the RF Input
50 MHz port. The analyzer supports the U2000
series power sensors.
5 Connect the external attenuation, if required,
with the power sensor used.
6 Connect the power sensor to the signal to be
measured. A typical base transceiver station
connection is after the output of the power
amplifier and duplexer. The connection requires
a 2 ft. cable and two Type- N barrel connectors,
in addition to the power sensor and external
attenuator.

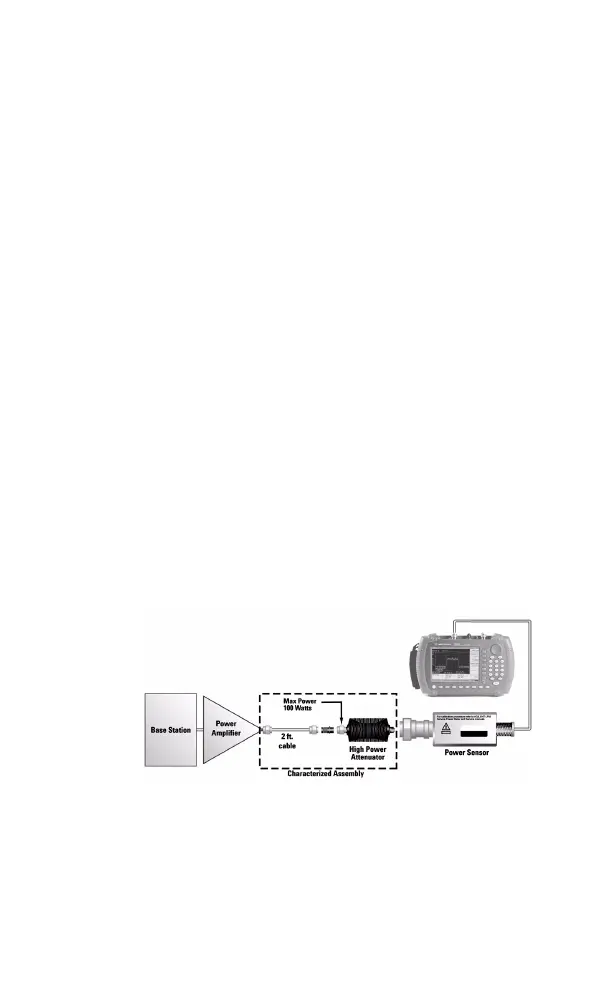

Figure 3-23 Connection with base station
