Installing the flow manifold
7
Installing the flow manifold
This section describes the installation of the current version of the manifold.
For information about the early version, see the Appendix.
Caution Always hold the manifold by its support bracket to avoid damaging board
components.
1. Route the ribbon cable behind the manifold assembly as shown in
Figure 1. Then, slide the manifold and bracket assembly into the slot
until the bracket seats flush against the end of the rails. See Figure 2.

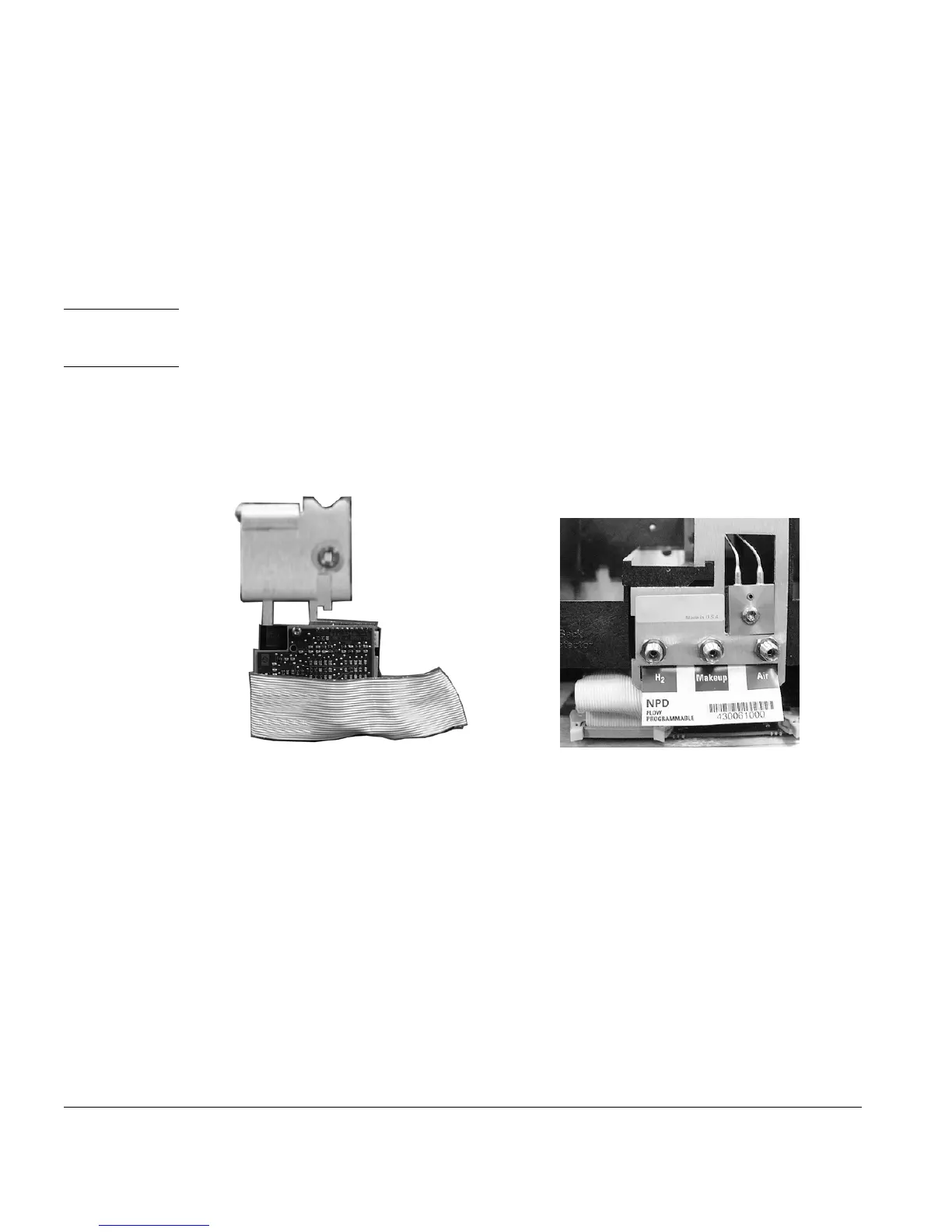

Figure 1. Routing the ribbon cable
Back view of manifold Manifold installed with cable routed to left
