Agilent Technologies TwisTorr 74 FS AG User Manual

Technical Information
J1 – IN-OUT
17
TwisT
orr 74 FS AG On-board Controller User Manual / 87-901-054-01 167/192
How to connect the input of the controller
The typical connections of the input of the TWISTORR 74 FS AG
On-board to an external system are described below. Two cases are
considered:
1. the customer supplies the 24 Vdc
2. the customer does not supply the 24 Vdc.
Note that a 24 Vdc, 30 mA voltage, a GROUND signal and the input
pins are available on the connector.

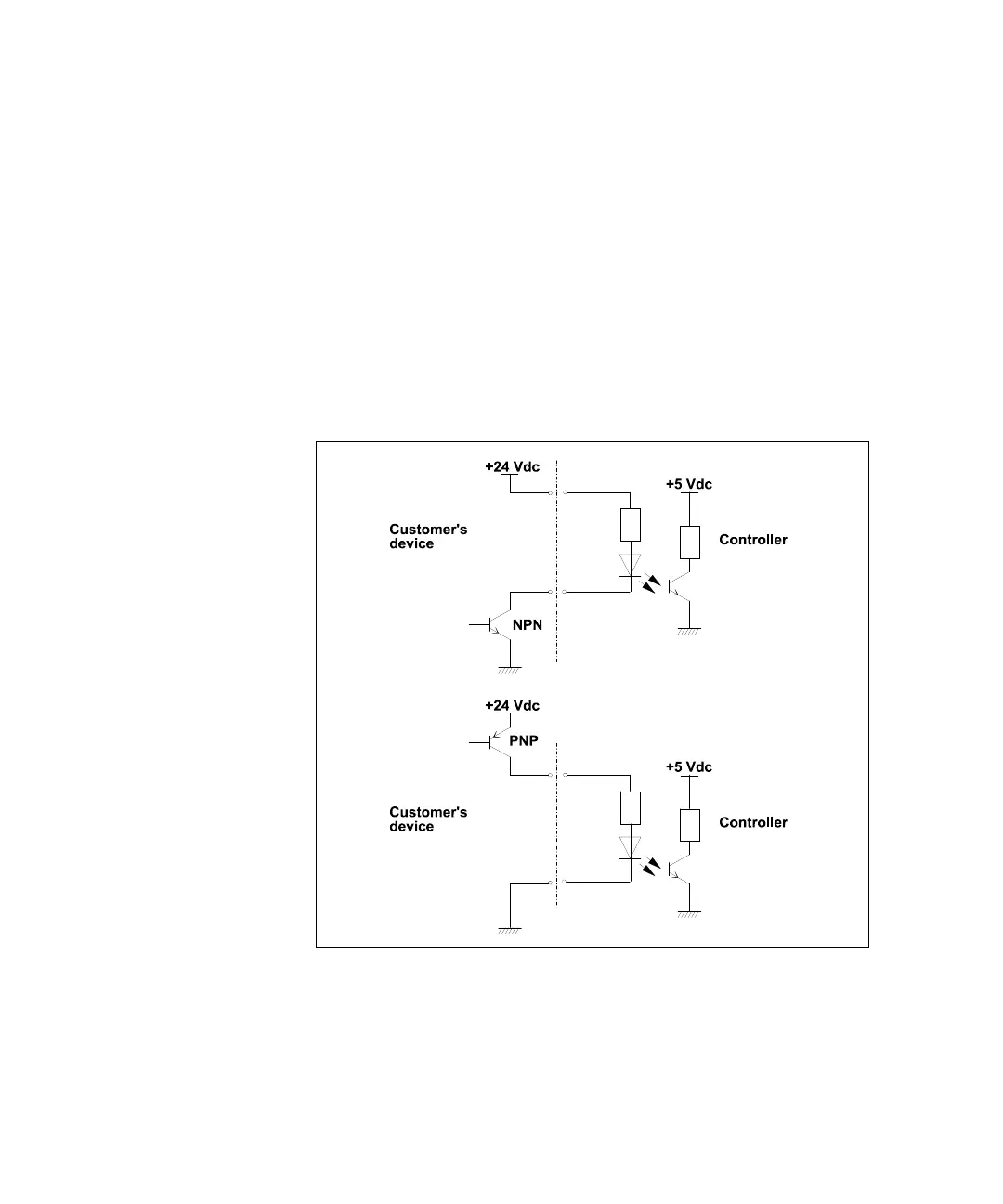

Figure 21 Case 1 external power supply

Agilent Technologies TwisTorr 74 FS AG Specifications

General

Brand	Agilent Technologies
Model	TwisTorr 74 FS AG
Category	Controller
Language	English
