Setup and Calibration of the CP-8400/8410
CP-8400 AutoSampler & CP-8410 AutoInjector 19

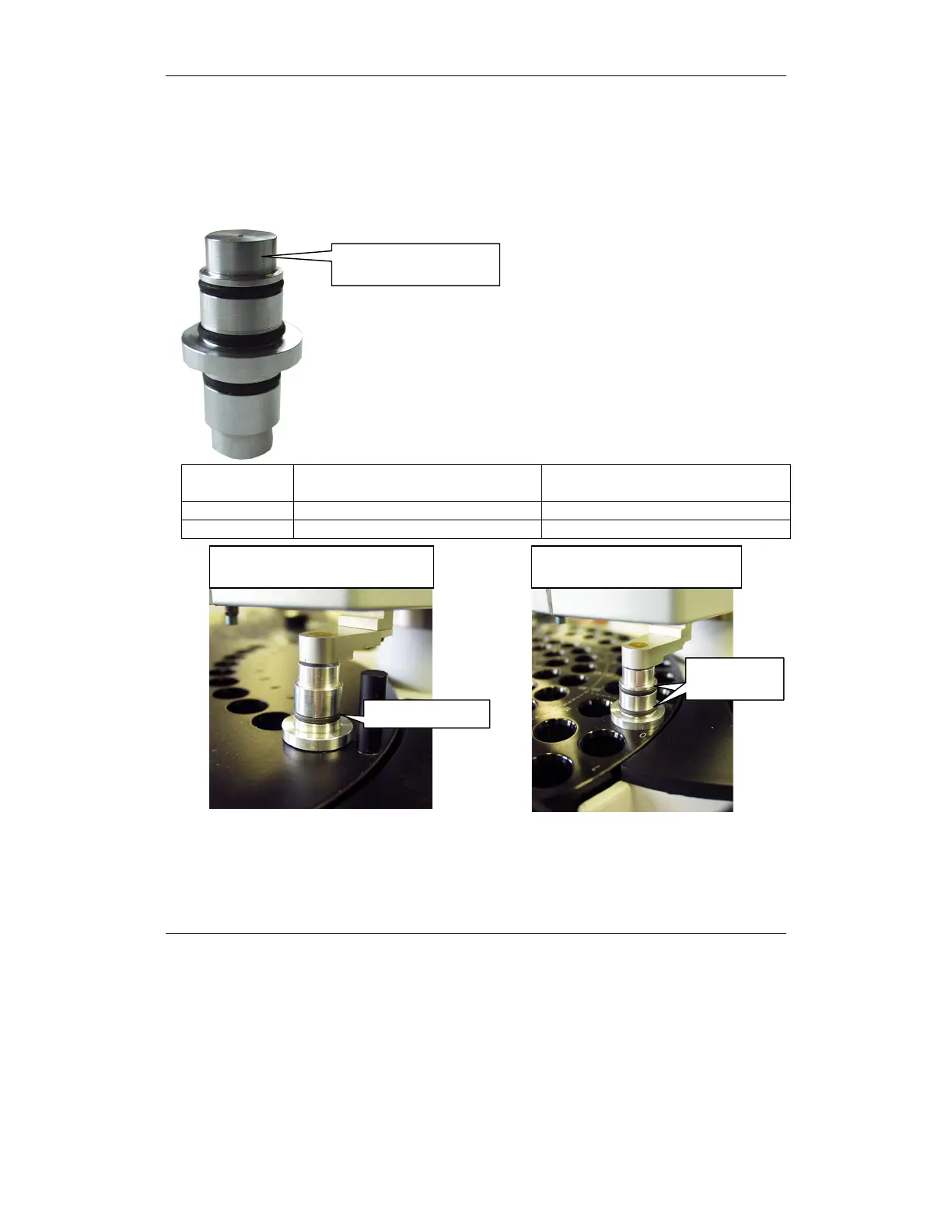

Vial Calibration tool
In order to accurately calibrate vial positions, a calibration tool (CP740889) is used.
The calibration tool simulates a standard vial. The tool is used for
both the CP-8400 and CP-8410 AutoSamplers.
The calibration tool can be placed (depending of the tray-material)
in two different ways in the tray.
See the table below for the correct position.
CP-8400
Calibration Vial in Position 0
CP-8410
Calibration Vial in Position 1
Metal tray Two O-rings visible Two O-rings visible
Polymer tray - One O-ring visible
For the correct calibration procedure of the sampler vial position, please refer to the
Setup and Calibration section of this manual.
One O-ring visible
Two O-rings
visible
CP-8410 (polymer tray)
calibration tool in vial position 1
CP-8400 (metal tray)
calibration tool in vial position 0
Vial calibration tool
