3.4.10 Interface X2: Ethernet (LAN)
Connector X2 is an Ethernet communication port.

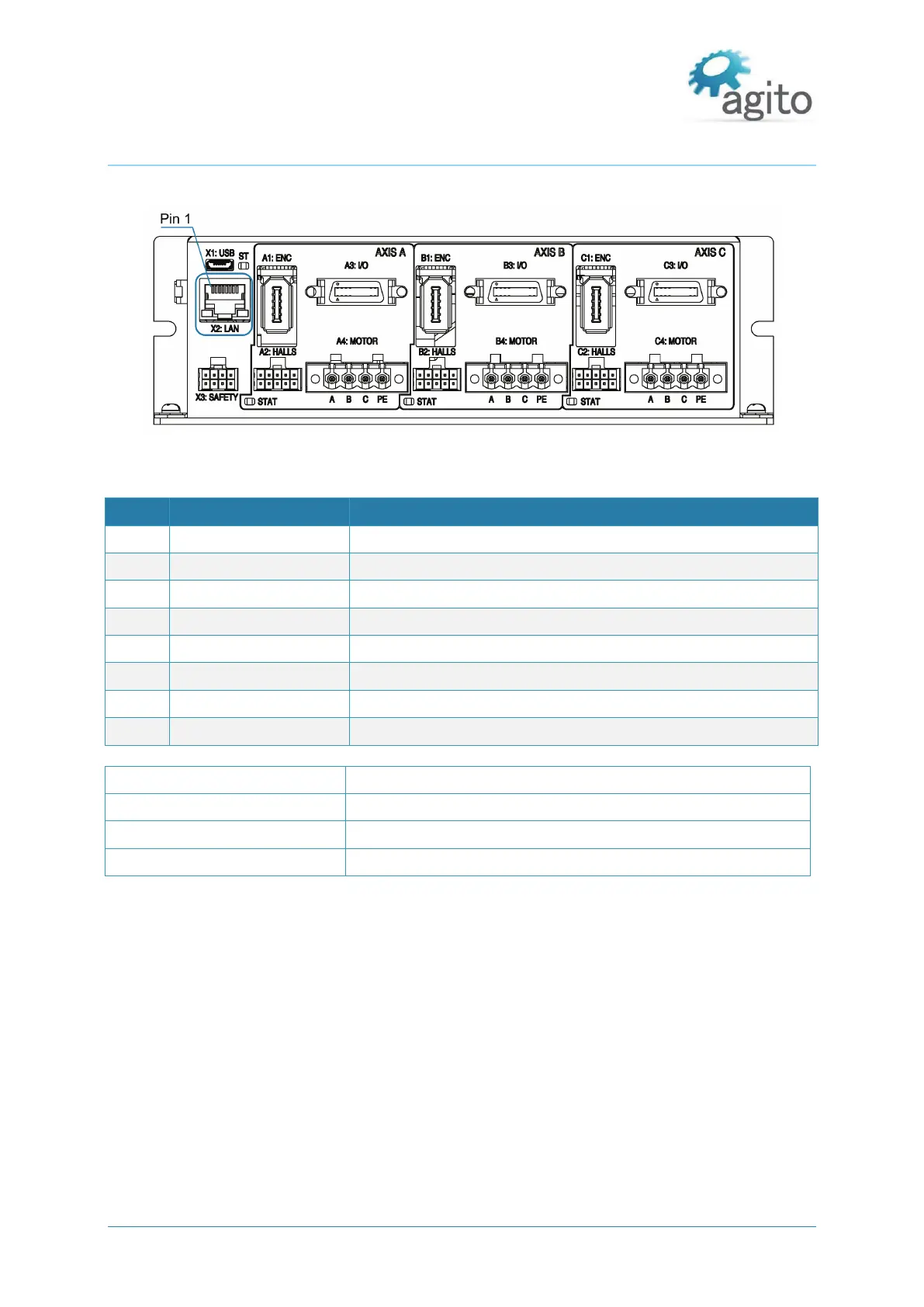

Figure 19: Ethernet Connector
Connector X13: LAN (Ethernet)
Pin # Name Description
1 TX+_D1 Transmit data +
2 TX-_D1 Transmit data -
3 RX+_D2 Receive data +
4 BI+_D3 Bi-directional +
5 BI-_D3 Bi-directional +
6 RX-_D2 Receive data -
7 BI+_D4 Bi-directional +
8 BI-_D4 Bi-directional -
Connector type RJ45 LAN 10/100Base-T connector
Mating connector part number Any CAT5e compatible shielded connector
Cable CAT5e or higher, standard Ethernet straight cable
Wiring 26 AWG, insulation rated for 100 V
