3.4.11 Interfaces X8, X9: CAN, RS232, RS485
Connectors X8 and X9 are serial RJ45 communication ports.

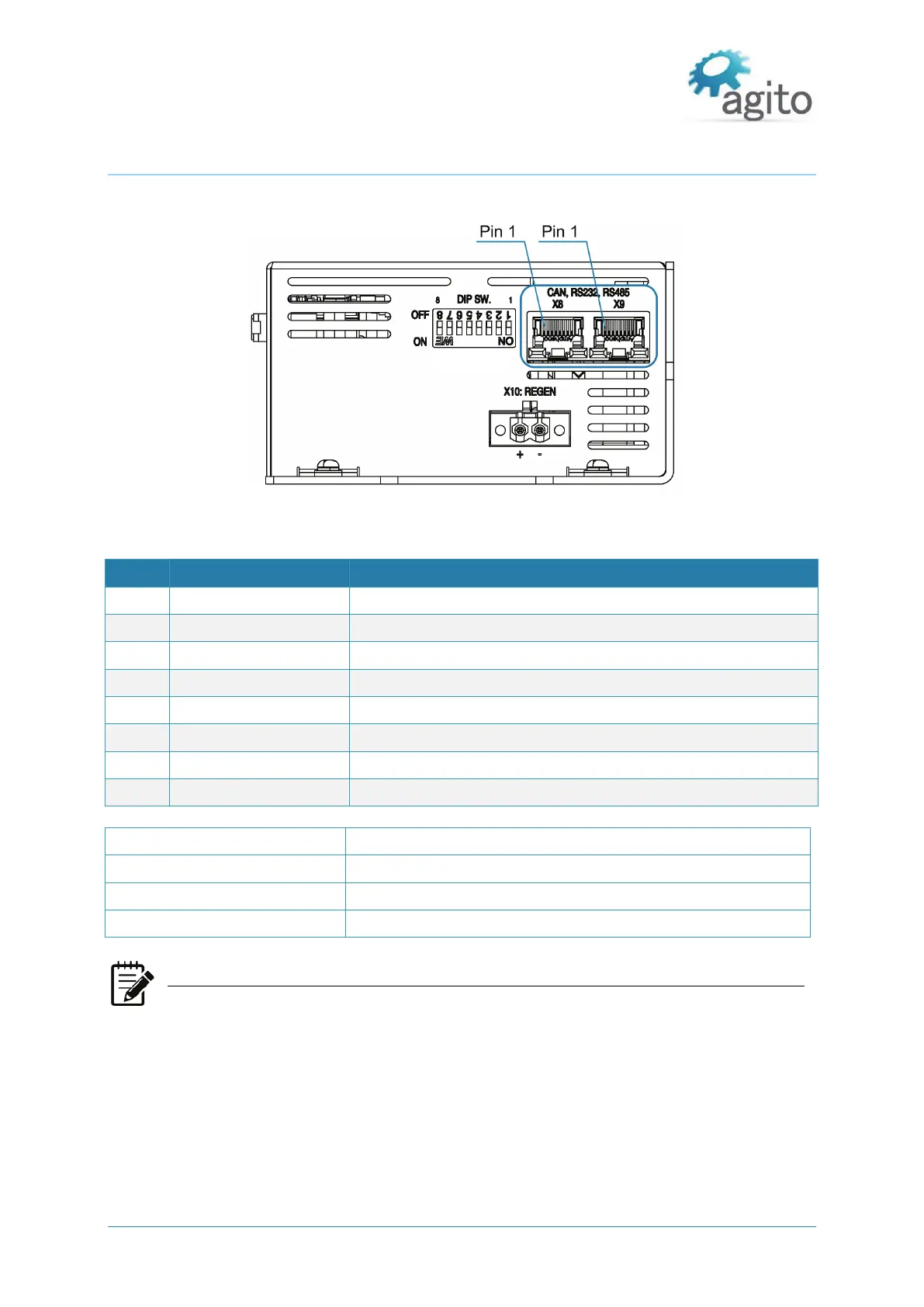

Figure 20: Serial Communication Connectors
Connector X8 and X9: CAN, RS232, RS485
Pin # Name Description
1 GND Digital Ground
2 RS232_RX RS232 input (product receive)
3 RS232_TX RS232 output (product transmit)
4 RS485_B RS485 bus, inverted
5 RS485_A RS485 bus, not inverted
6 Sync Reserved for future use
7 CAN_L CAN bus, Low
8 CAN_H CAN bus, High
Connector type RJ45 LAN 10/100Base-T connector
Mating connector part number Any CAT5e compatible shielded connector
Cable CAT5e or higher, standard Ethernet straight cable
Wiring 26 AWG, insulation rated for 100V
Dual port connector
The serial port is a dual-port RJ45 connector. The two ports have identical pinouts and
are interchangeable. Two ports are provided to support daisy chain connection of a CAN
bus or RS485. It can be also used to connect two types of communication channels at the
same time, instead of splitting a cable from a single RJ45 connector.
