System Design
AGD301 Product Manual Rev.2.0 Page 6
1.3 System Design

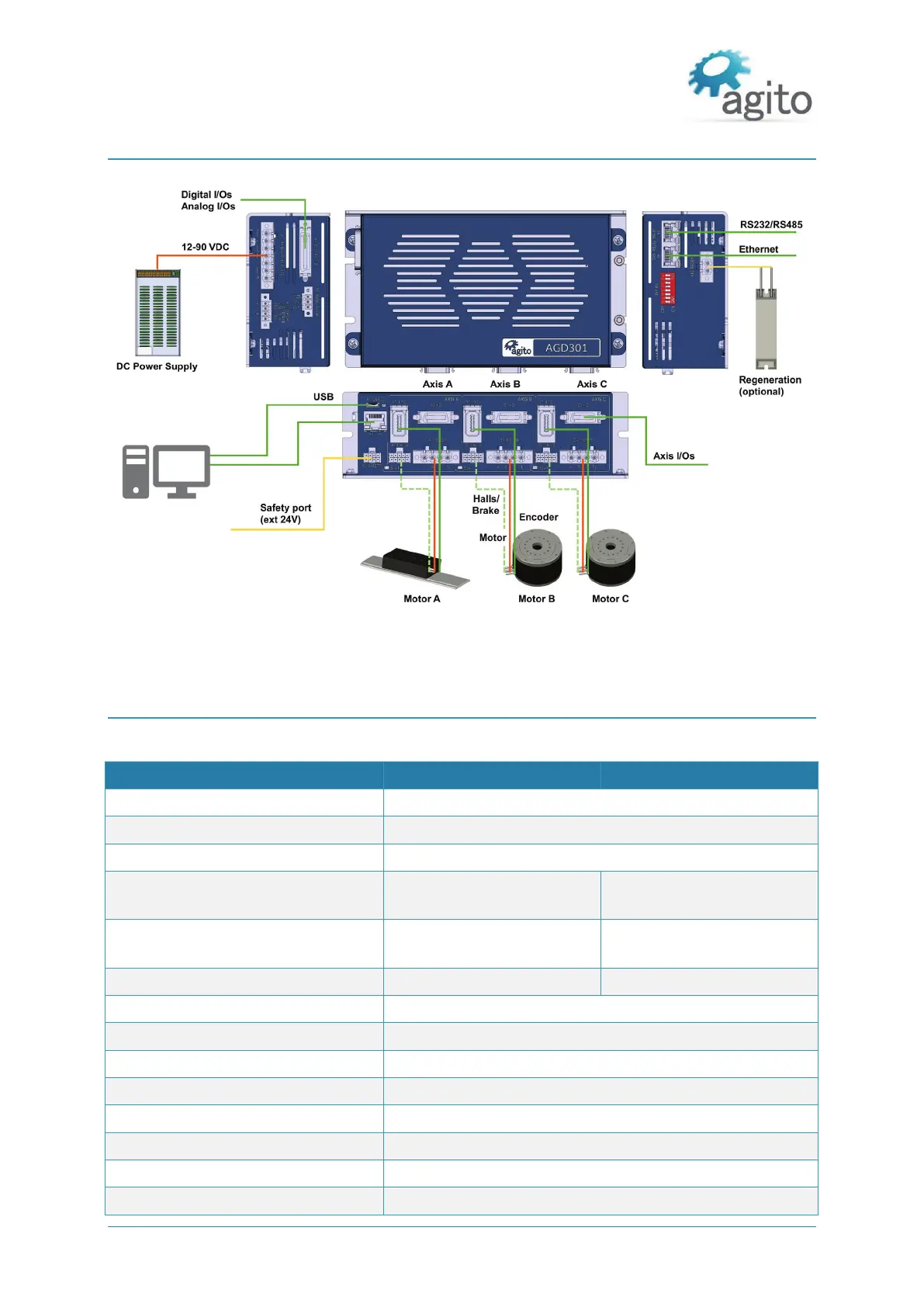

Figure 2. System connections and wiring
1.4 Electrical and Mechanical Specifications
Electrical Specifications
Feature AGD301-ET-2D05 AGD301-ET-2D09
Number of axes 3
Power supply 12–90 VDC
Logic power supply (optional) * 12–36 VDC
Continuous output current
(Internally limited by firmware)
5.6 A
rms
per axis 5.6 A
rms
per axis
Peak output current
(Internally limited by firmware)
11.2 A
rms
11.2 A
rms
Output power @ 90 VDC 504 kVA 504 kVA
Peak current time 3 sec
Output frequency 0–599 Hz
Isolated digital inputs 27
Isolated digital outputs 17
Differential inputs 8
Differential outputs
Analog inputs 4 (12 bit)
Analog outputs 4 (16 bit)
