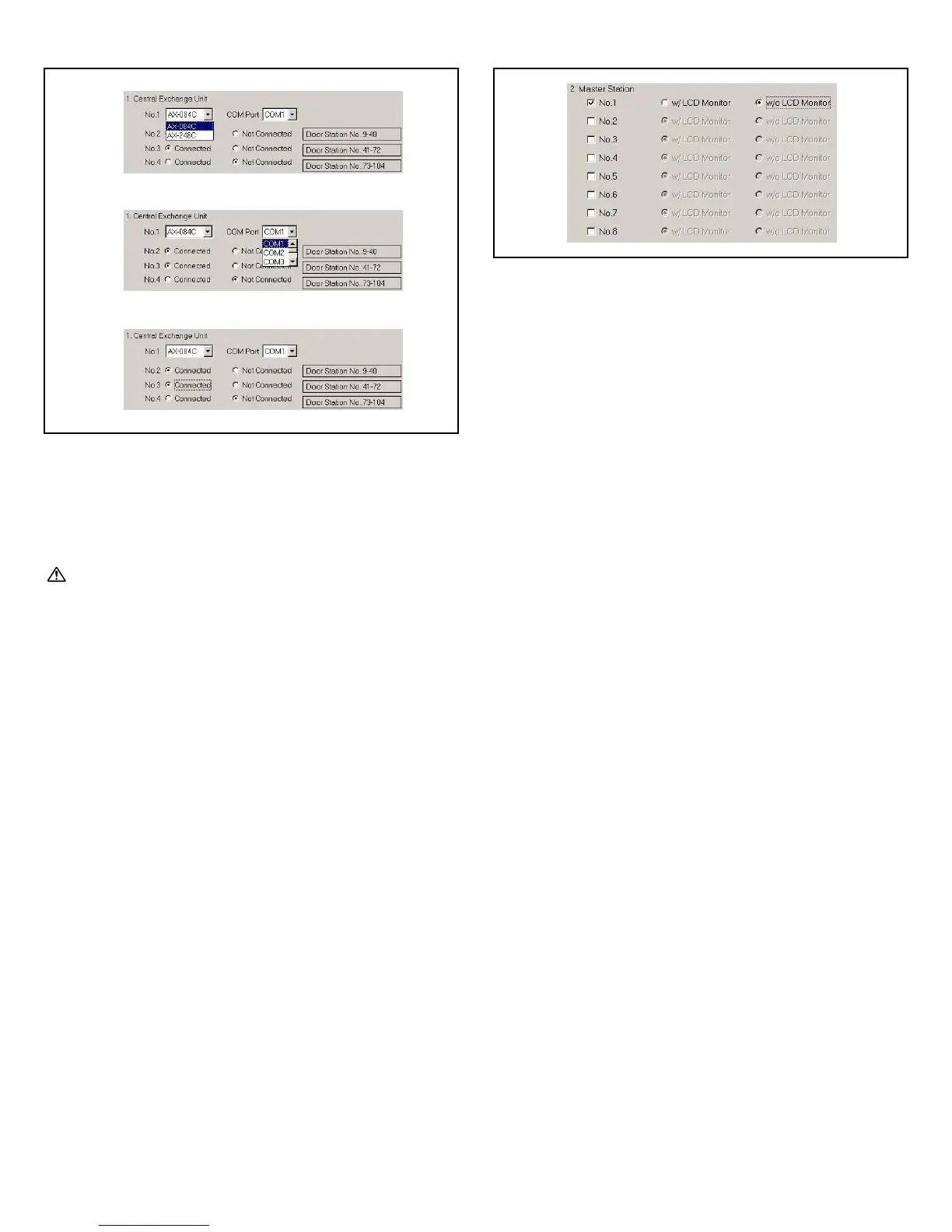

Central exchange unit setting
1. For the device used as "No.1", select "AX-084C" or "AX-
248C".
2. "COM Port" selects the serial communications port of the PC
connected to central exchange unit 1.
3. Select the add-on exchange unit to be connected from among
"No.2" through "No.4".
Add-on exchanges must be connected and assigned in
sequential order without skipping a position. (i.e. First AX-
320C is unit 2, second one is 3, third one is 4. The set-up tool
will not allow skipping exchange unit positions.
Master station setup input
1. Check the master units to be connected from among "No. 1"
through "No. 8".
2. When you select each master station to be included, the
selection of "w/LCD Monitor" or "w/o LCD Monitor" is
required. Select setting based on which style of master station
(AX-8MV or AX-8M) is connected to each input.
