Log

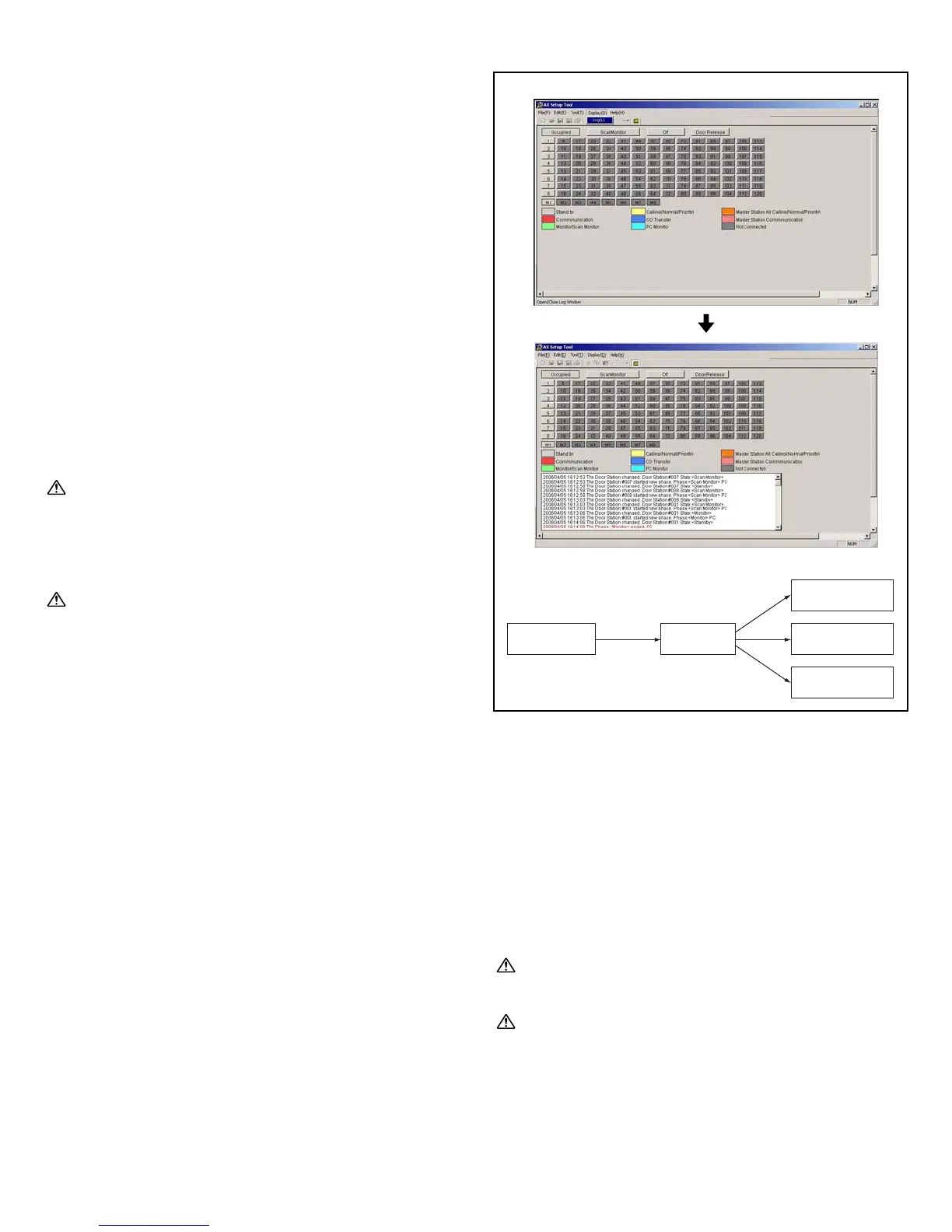

1. View menu
The view menu supports log display on the system monitor
screen. When you select "Log (L)" from "Display (D)", the log
screen is displayed and checks are placed next to menu items. If
you select a menu item again, the log screen display goes off.
2. Log file
The setup tool outputs the log data received from the central
exchange unit into a log file. This log file is created in the
startup directory for the setup tools. The file name is the date
plus a serial number: "yyyymmdd_nn.log". The log output is
added to the log file, but if the file date is changed or if the log
file exceeds 4 MB, a new file is created.
1. The log file is retained. It is not automatically deleted. The
retained log file may influence to PC operation. Delete or
save to external storage unit by yourself as necessary.
2. The dates and times in the log data depend on the PC's
internal clock.
System monitor
1. System monitor start
• When you select "Start System Monitoring (M)" from "Tool (T)",
the system monitor is started. The display switches from the
setup edit screen to the system monitor screen.
2. System monitor screen operation
On the system monitor screen, "Scan Monitor", "Door Station
button", "Off", and "Door Release" command buttons can be
clicked with the mouse.
[1] Scan monitor button
[2] OFF button
[3] Door release button
[4] Door station button
[5] Master station display
[6] Communicating display
• Sequential monitoring starts when the Scan Monitor button is
pressed. Individual station monitoring starts when a door station
selector button is pressed.
• When the OFF button is pressed, the PC monitor or scan monitor
is stopped.
• When the door release button is pressed, the electric lock is
released for the door station being monitored.
While the communicating display is lit, the system is in use
and the above operations are not possible.
3. System monitor end
When you select "Stop System Monitoring (S)" from "Tool
(T)", the system monitor is ended and the display switches to
the setup edit screen.
However, the system monitor cannot be started in the
following cases.
• Changed setup data has not been stored.
• Changed setup data has never been uploaded to the central
exchange unit.
• There is an error in the communications line between the PC and
the central exchange unit.
Log data
Log file
(20051018_01.log)
Log file
(20051019_01.log)
Log file
(20051018_02.log)
AX setup tool
AX Central
exchange unit 1
1
2
To Next Page
