MOUNTING
4-1
Mounting (Mullion door station)
1. Connect the CAT5e cable to the rear of the AX-DM. Use wires
#3 (white-green) and #6 (green) as one conductor, and #7
(white-brown) and #8 (brown) as the other conductor (RJ-45
jack not used at Mullion door station). The other pairs are not
used.
2. Connect the white-green/green pair to the red AX-DM wire,
and the white-brown/brown pair to the brown AX-DM wire.
(Non-polarized, so opposite connection will work as well.)
When connecting an IE/IF door station, connect white-
green/green pair to "1" and white-brown/brown pair to "2".
(Use TIA/EIA568B standard)
3. Lift up the front cover from the bottom and set aside.
4. Fasten unit to wall with the mounting screws. Align the front
cover with the top hook and clip on at the bottom.

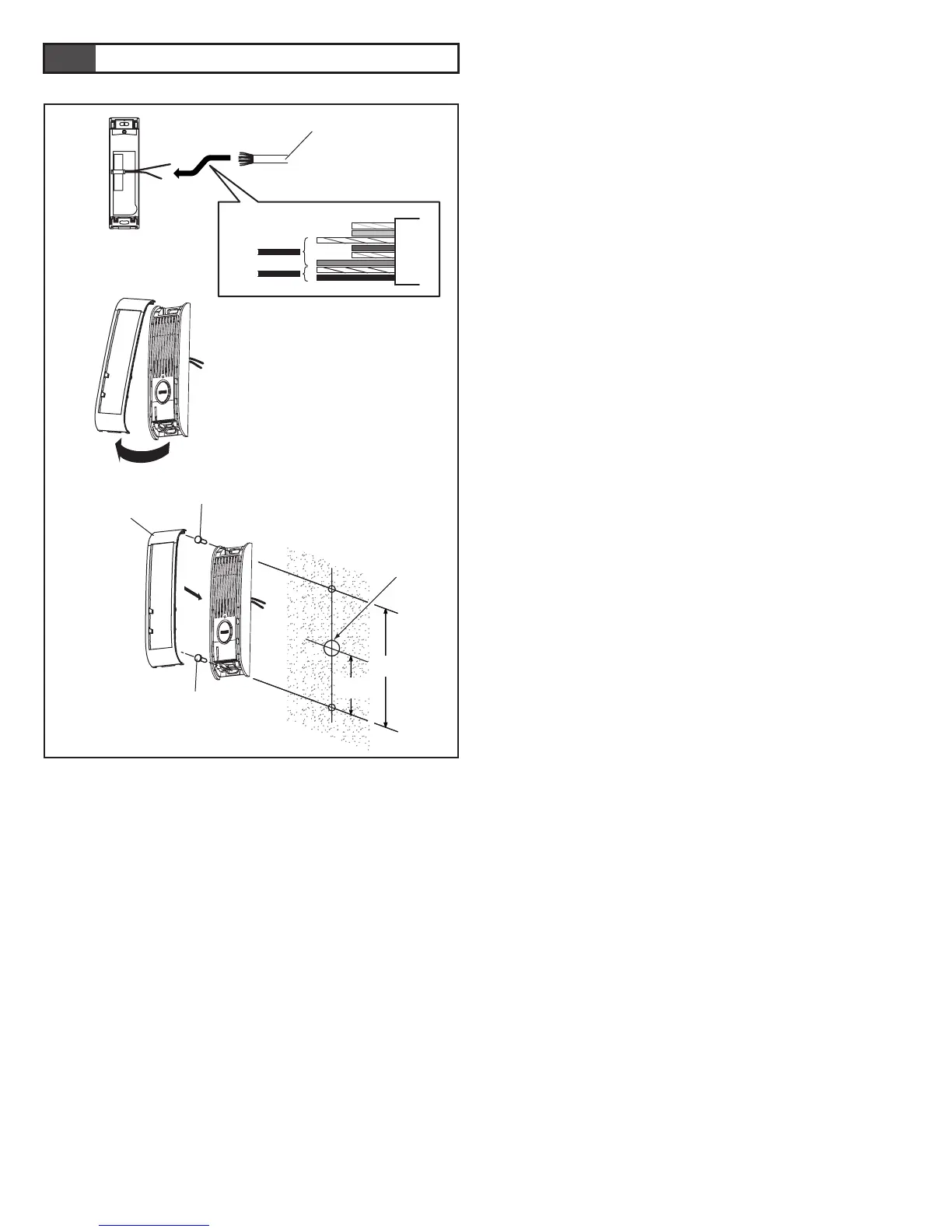

[1] CAT5e straight-thru cable
[2] Front cover
[3] Mounting screws
∗ When mounting AX-DM on a thin mounting surface
(aluminum plate, etc.), holes should be 3.5 mm diameter. If the
plate is thick, drill holes at least 25 mm deep; then mount with
self-threading screws."
[1]
1
3
AX-DM
CAT5e
[2]
[3]
[3]
4
2
142 mm
5-9/16"
71 mm
2-13/16"
Ø16 mm
5/8"
1
2
4
5
3
6
7
8
