Aiphone GT SERIES - 4 Wiring; Multi Building Consisting of Standard Systems

Aiphone GT SERIES
24 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
12
SW2
1 2 3
4
5 6 7
8
DC24V
Power
B2
B1
IN
A2
A1
OUT
R2
R1
ON
OFF
SW3
LAN
1 2 3
4
PS24
AC
DC24V
R1
R2
MODE
EXPAND
STANDARD
1P
NP
1P
NP
1P
NP
1P
NP
1P
NP
1P
NP
1P
NP
1P
NP
1P
NP
1P
NP
Entrance station 1
Entrance station 2
Entrance station 3
Entrance station 4
Guard station
Guard station
Entrance stations
Tenant section (standard system)
Video bus control unit
GT-VBC

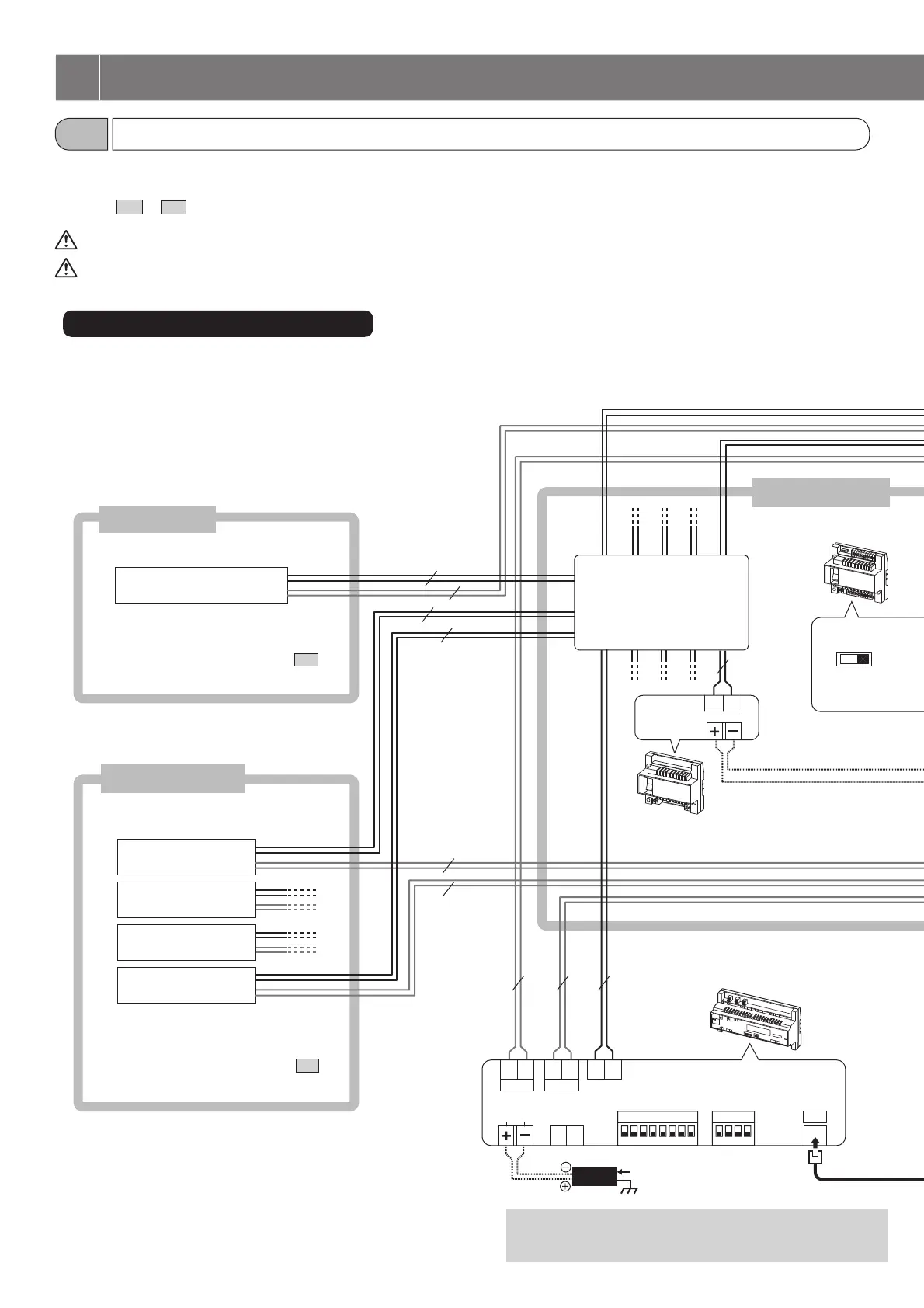

The following is a connection diagram example of a multi building system consisting of standard systems as tenant and main sections.
* The wiring methods differ depending on the equipment used. Refer to the installation manual GT SYSTEM/Standard & Expanded System
sections
4-2
to
4-4
for the detailed wiring diagrams of entrance stations, guard stations, and residential/tenant stations.
Each pair of wires should be in a separately jacketed cable (audio, video, and power wiring).
To prevent shorts, unused cables should be insulated.
Multi-building control unit
GT-MCX
Common area
Bus control unit
GT-BC
4 WIRING
Multi building consisting of standard systems
4-1
DP (Distribution Point)
(Not provided by
Aiphone except for
Europe and North
America.)
*1
*2
*2: NOTE: Do not route a CAT5e/6 cable outdoors from a multi-building
control unit directly. When routing a CAT5e/6 cable outdoors
from a switching hub, use a model that supports outdoor wiring.
Refer to the installation manual GT SYSTEM/
Standard & Expanded System section
4-2
for detailed connection diagrams.
Refer to the installation manual GT SYSTEM/
Standard & Expanded System section
4-3
for detailed connection diagrams.
