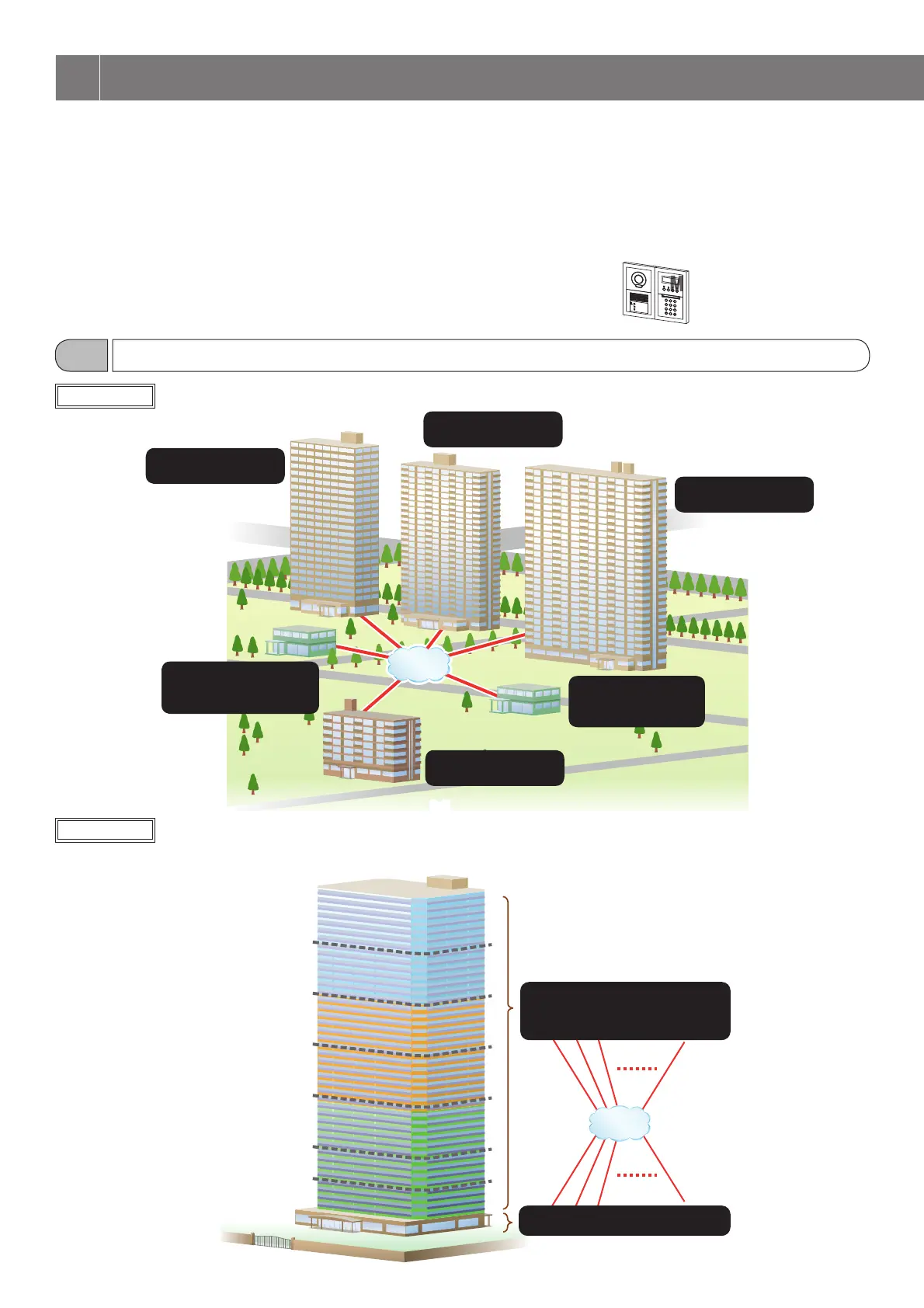

Example 1
: Multiple buildings
Example 2
: Large-scale single building
A multi building system can be applied to a large-scale single tenant building that includes more than 500 residential/tenant stations.
The GT system can be confi gured over an IP network so multiple buildings can be connected and controlled centrally as a large-scale system.
There can be a maximum of 5,000 residential/tenant stations in the system.
A multi building system consists of tenant and main sections, and a section consists of a standard or expanded system. All sections can be
confi gured via IP network connection.
Tenant section: Tenant section consists of residential/tenant stations. One multi building control unit, GT-MCX, is needed per section.
Up to 24 tenant sections can be set up in the same system. One tenant section can support up to 500 residential/tenant stations.
Main section: Main section consists of main entrance stations and main guard stations.
One multi building control unit, GT-MCX is needed per section.
Up to 8 main sections can be set up in the same system.
* A main section cannot include residential/tenant stations.
* A modular type entrance station cannot be included in a main section.
LAN
LAN
1 SYSTEM CONFIGURATIONS
Application examples
1-1
Tenant section
(expanded system)
Tenant section
(expanded system)
Tenant section
(standard system)
Tenant section
(expanded system)
Main section:
administration offi ce
(standard system)
Main section:
security center
(standard system)
Tenant sections 1 to 24
Main sections 1 to 8
Not available in Main section
