Aiphone GT SERIES Installation Manual

19
SUB2
A2
A1
A2
A1
A2
A1
A2
A1
A2
A1
A2
A1
A2
A1
A2
A1
COMMON2
B2
B1
B2
B1
CN2
4P
MODE
EXPAND STANDARD
OUT
IN IN IN
OUT OUT
DC24V
2
OUT
1
B2
B1
B2
B1
B2
B1
B2
B1
3 6
1 2 5
A2
A1
A2
A1
A2
A1
4P
LAN
1P
NP
PS24
AC

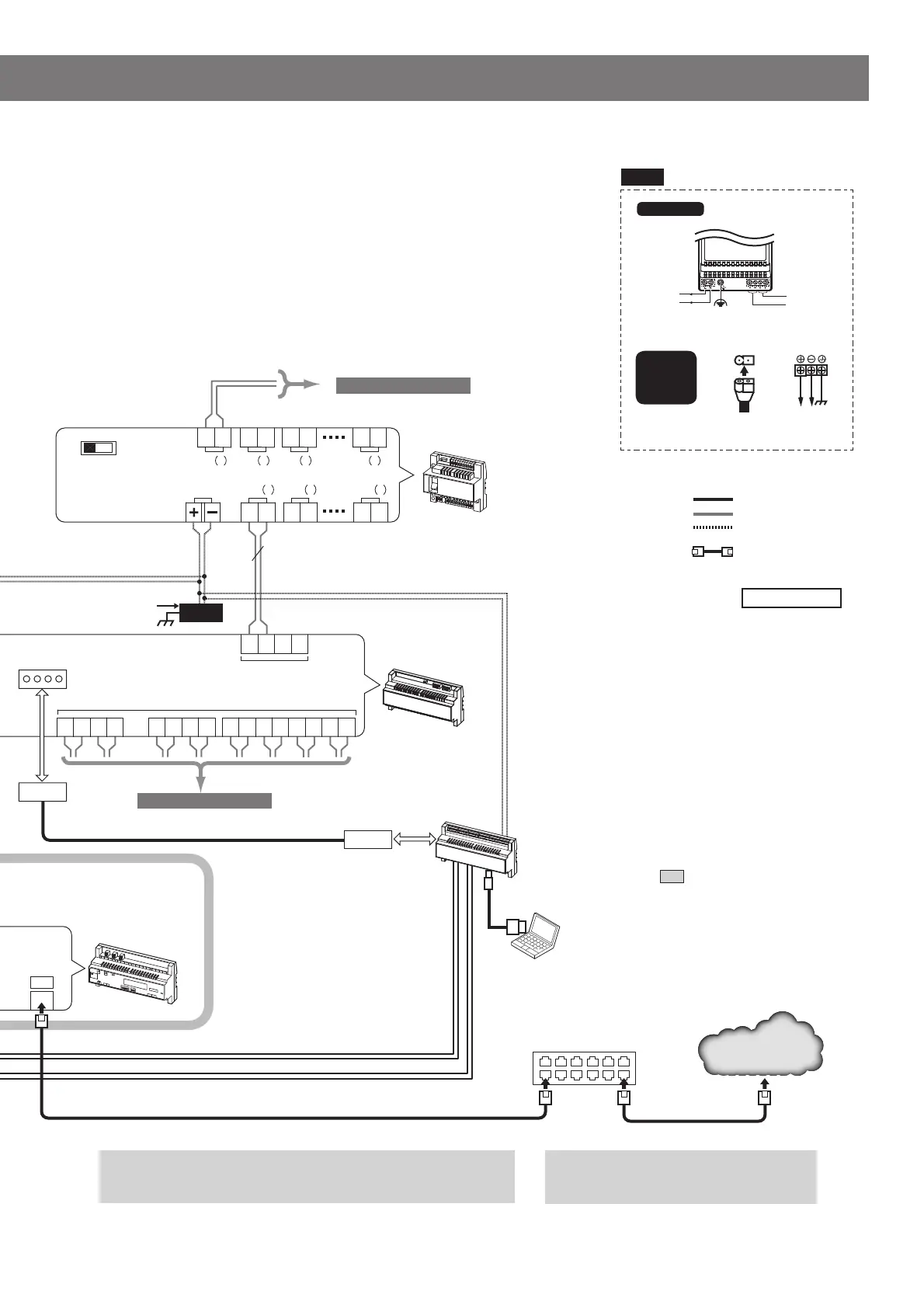

WIRING
Expanded video
bus control unit
GT-VBX
Multi-building
control unit
GT-MCX
Expanded bus control unit
GT-BCXB-N
PC
LAN
NP: Non-polarized
: Audio signal line
: Video signal line
: Power supply line
: CAT5e/6 cable
(100BASE-TX)
PS24
230 V AC 50/60 Hz
24 V DC2A
N
L
-
+
100V - 240V -
50/60 Hz
24V DC
2 A
PS-2420DM
PS-2420
PS-2420S
PS-2420UL
PS-2420BF
GT-VBC
(guard station)
(entrance stations)
*3: Do not route a CAT5e/6 cable outdoors from a multi-building control unit
directly. When routing a CAT5e/6 cable outdoors from a switching hub, use a
model that supports outdoor wiring.
*3
*3
Switching hub
*4
*4: Switching hub requirement (third party product)
• Packet delivery: Multicast
• Transmission rate: 100 Mbps or more
To
Common trunk line 2
To
Common trunk line 2
Refer to the installation manual GT SYSTEM/Standard &
Expanded System section
4-5
for detailed connection diagrams.

Aiphone GT SERIES Specifications

General

Hands-free Communication	Yes
Door Release	Yes
Video	Color
Weather Resistance	IP54
System Type	Video Intercom
Display	Color LCD
Camera	Integrated CCD camera
Wiring	2-wire
Expandable	Yes, up to 500 units
Mounting	Surface or flush mount
Capacity	Up to 500 stations
Operating Voltage	24V DC
Operating Temperature	-10°C to 60°C
