INSTALLATION
3. Drain to Facility Sewer Connection. Refer to Figure 5, item (3) for the location of the Air/
Waster Separator drain. Use the 1-inch hose provided to connect the separator drain to the
facility sewer. As shown by Figure 6, the sewer connection can be made as either a closed
vented drain or open drain pipe method.
4. System Electrical Connections. Refer to the Electrical Connections section (See Figure 7.)
and connect the pump to 220V facility power. Refer to Figures 8 and 9 when connecting the low
power remote switch.

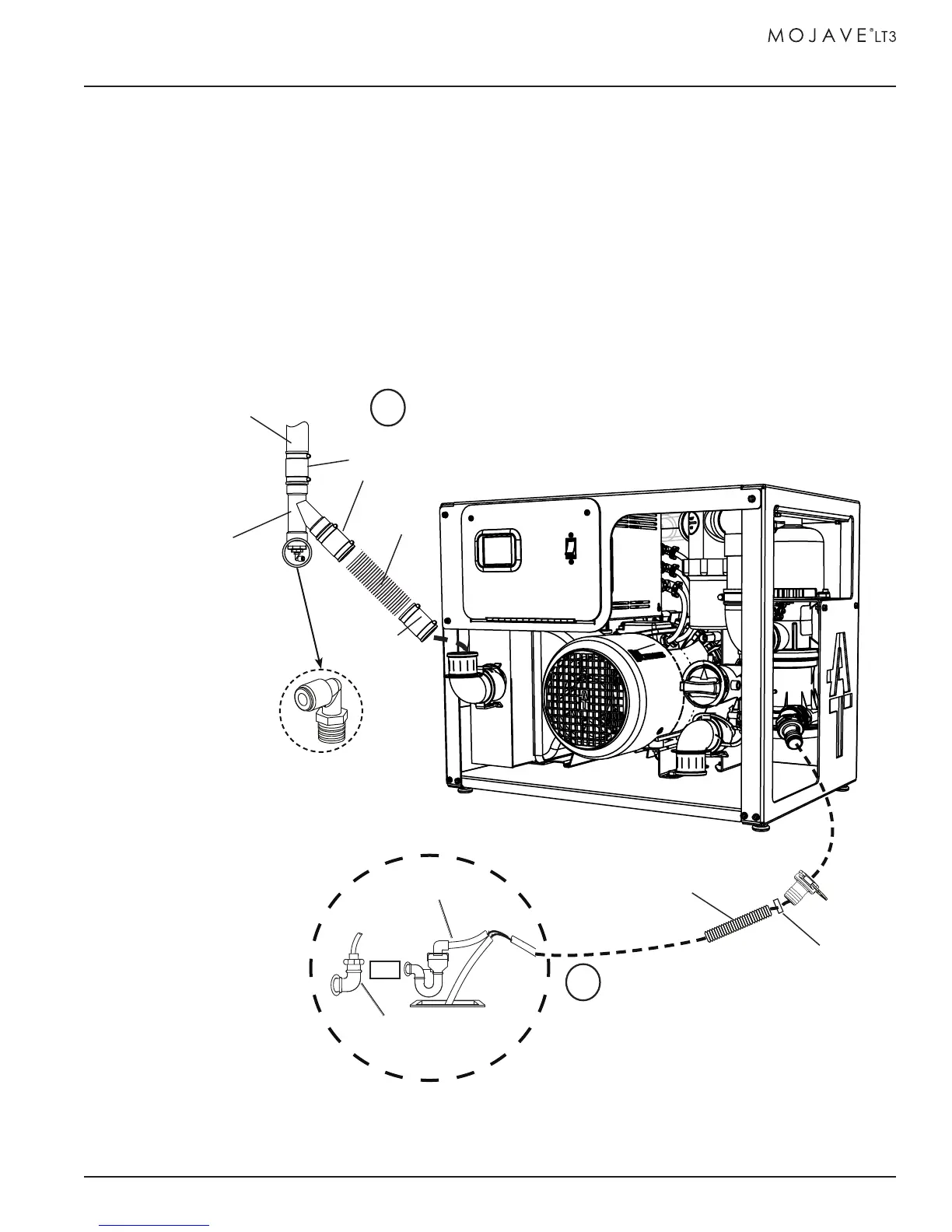

Figure 6. MOJAVE LT3 Detail Plumbing Connection
Drip Leg and
Exhaust Vent
Assembly
3
OR
Open Drain
Pipe
Closed Vented
Drain
Connection to
Facility Sewer
Drain
1" Drain Hose
Clamp
No
Hub
2
Heat Exhaust
Connection to
Outside Vent
1½" Schedule 40
Facility Vent Line
No
Hub
1/4-inch Vent
Condensation
Drain Port
Flex Tubing
