MOJAVE LT3 Dry Vacuum System Operation.
1. Air, water, and solids from the treatment room enter the system via the Inlet Port and are pulled
into the mechanical air/water separator assembly.
2. Air is then expelled to the outside vent through the pump heat exhaust
3. Liquids and solids exit through the drain line of the separator.
4.
The LCD touch screen provides the operational user interface for the MOJAVE LT3 system. It
monitors and displays the frequency, vacuum level, RPM reading and temperature as well as
recording the run time in hours.
Automatic Vacuum Adjustment.
When an instrument (suction tip) has been opened, the system senses an increase in vacuum demand
and responds by increasing the speed of the motor.
Conversely, when an instrument (suction tip) has been closed, the system reads the elevated vacuum level
and responds by slowing motor operation down due to decreased vacuum demand.
PRODUCT DESCRIPTION
Heat
Exhaust to
Outside
Vent
Gas/Liquids/Solids from the
Treatment Room
into Air/Water Separator
Liquids/Solids
from the Air/
Water Separator
to Sewer Drain

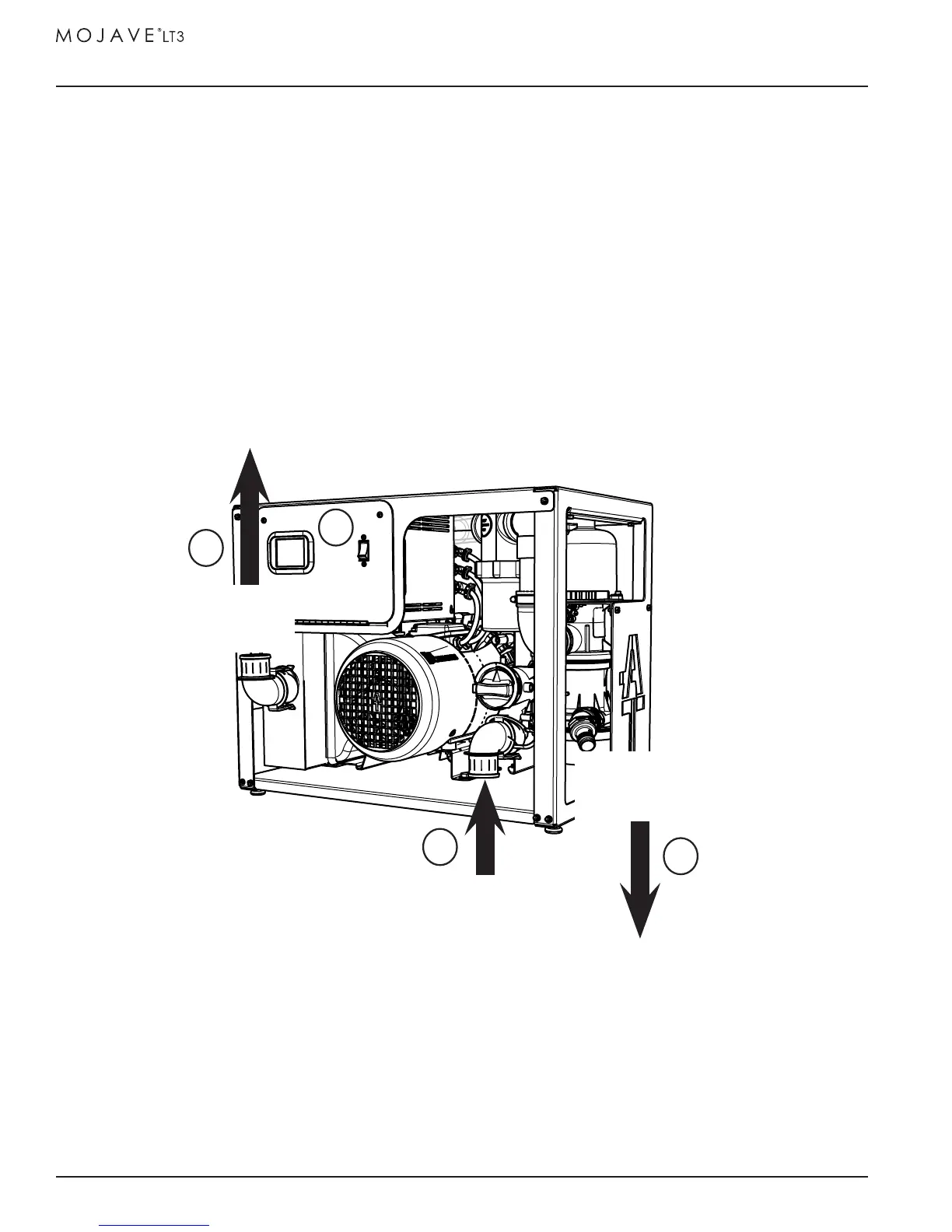

Figure 2. MOJAVE LT3 Functional Connection Points
1
3
2
4
