INSTALLATION INFORMATION
General. For new installations it is recommended to follow the following guidelines:

Make sure to install the system in accordance with all local electrical and plumbing codes.

The suction line should not have any sharp right angle bends and must be sloped a minimum
of ¼ inch for every 10 feet toward the MOJAVE LT3.

The drain on the base of the air/water separator must be connected to a vented or an open
floor drain capable of handling 5 gallons in 1 minute. Drain tube size 1 inch.

The drain line should be a short run with a maximum rise of 3 feet. Avoid any sharp right
angle bends.

Make sure to install the supplied exhaust vent assembly to the bottom end of the facility vent line.

The vent should be sloped ¼ inch per 10 feet towards the pump. Vent lines must be capable
of handling vapors and liquids.

The outside vent must be protected from rain and animals.

A flexible air exhaust hose is provided to connect to the 1½ inch diameter vent pipe and heat
exchanger. 1½ inch no-hub adapter is provided to secure hose to heat exchanger and pipe.

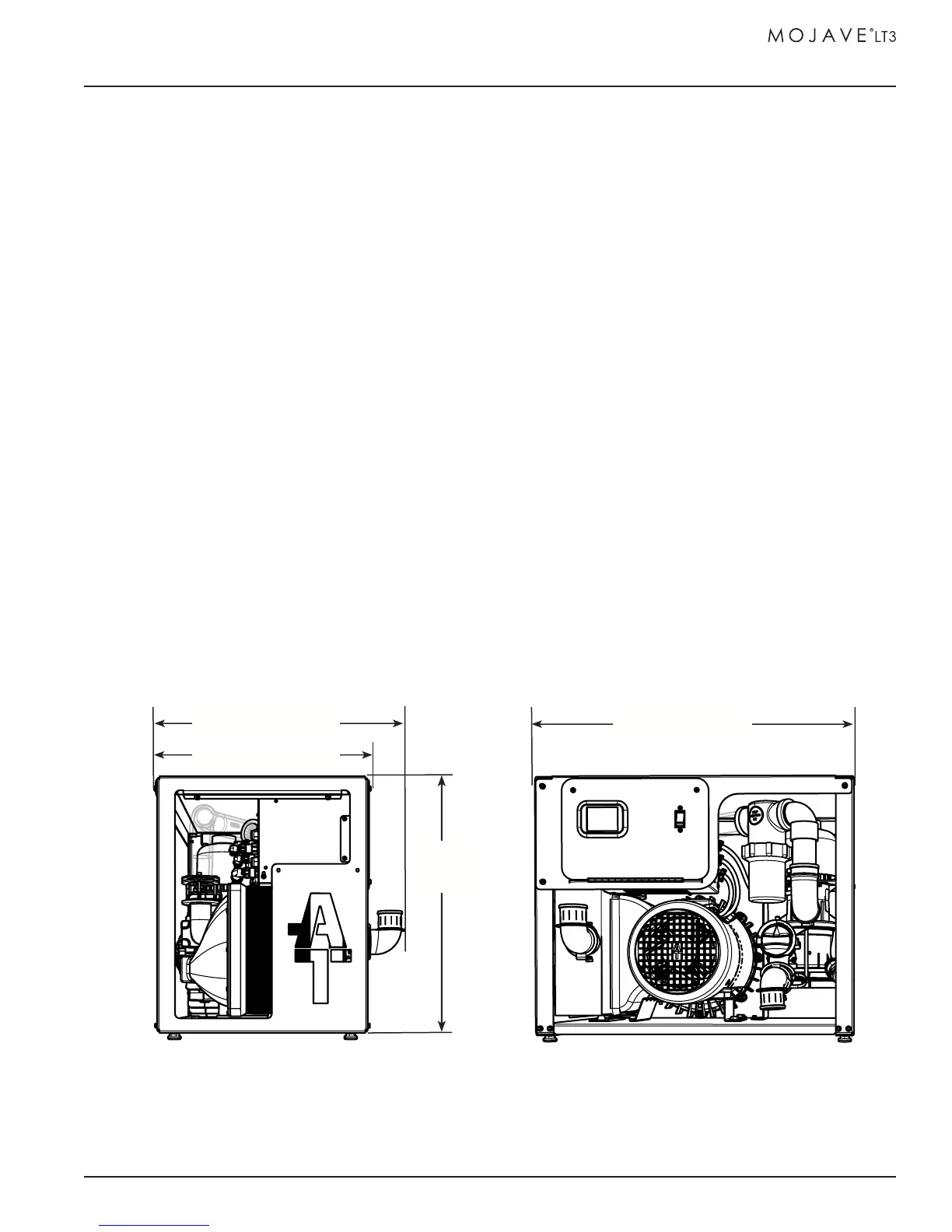

Figure 3. MOJAVE LT3 Vacuum Pump Dimensions
24 in. (61 cm)
Front View
Left Side View
20 in.
(51 cm)
16.5 in. (42 cm)
19.5 in. (50 cm)
