OPERATING INFORMATION
General.

The vacuum level is factory preset at 8 InHg. This vacuum set point is adjustable from 8.0 to
10.0 inHg in increments of 0.5 inHg via the touch screen.

System operation is automatically controlled. Parameters can be adjusted via the touch screen

The system is capable of running continuously and should be put into standby mode when not
in use.

The system may be turned ON or put into standby mode from a single, convenient location
within the dental office using an optional Remote Control Panel switch.
Note: The motor power circuit breaker must be kept in the ON position and should not be
used as a switch for the unit operation.
Pump Power On/Off Switch with Circuit Breaker.
As the Mains power disconnect of the pump, this combination switch and circuit breaker controls
application of the connected input power and protects the pump from overloads and short circuits.
When set to the ON (1) position, it applies input power to the internal electronics.

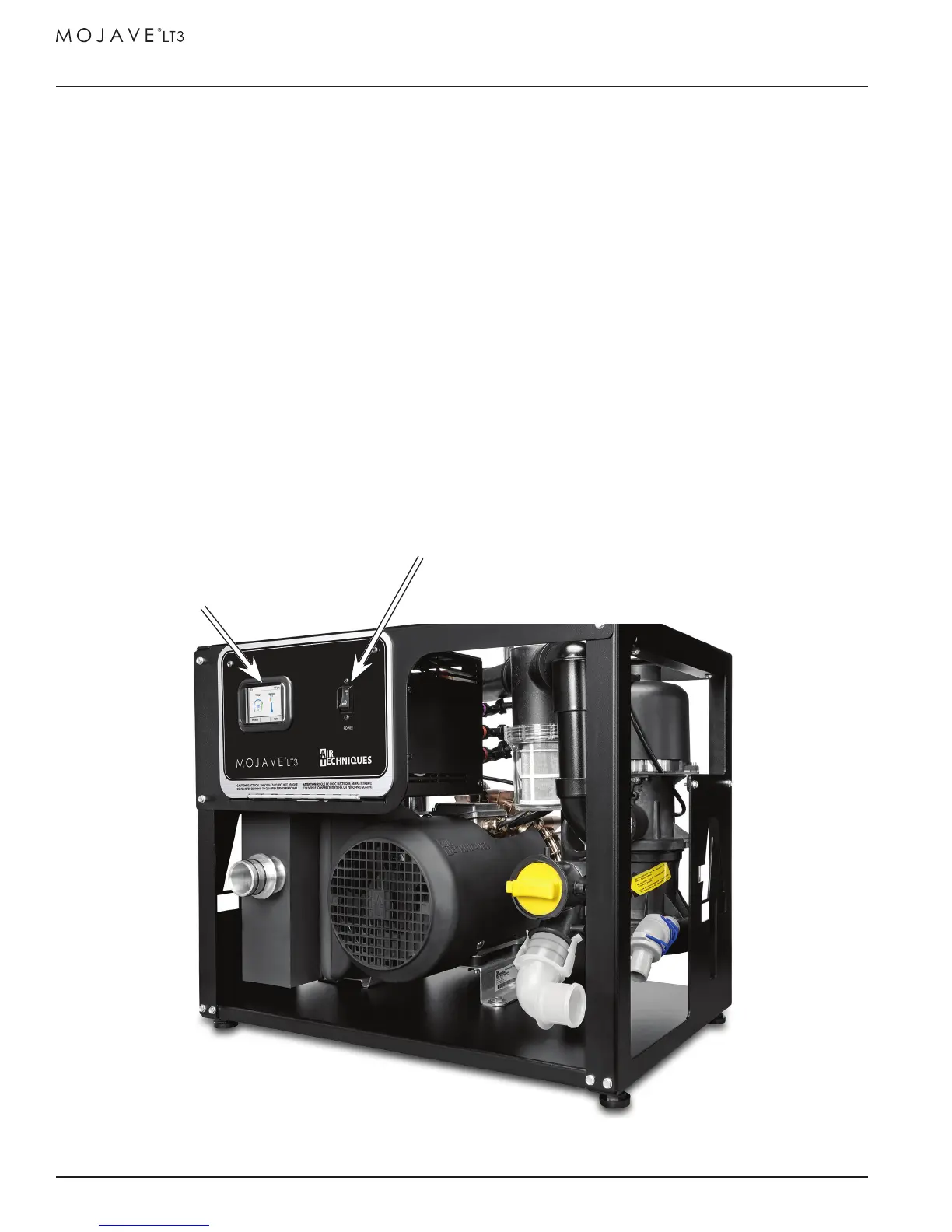

Figure 10. MOJAVE LT3 Front Panel Controls and Indicators
Pump Power On/Off
Switch and Circuit
Breaker
Touch
Screen
