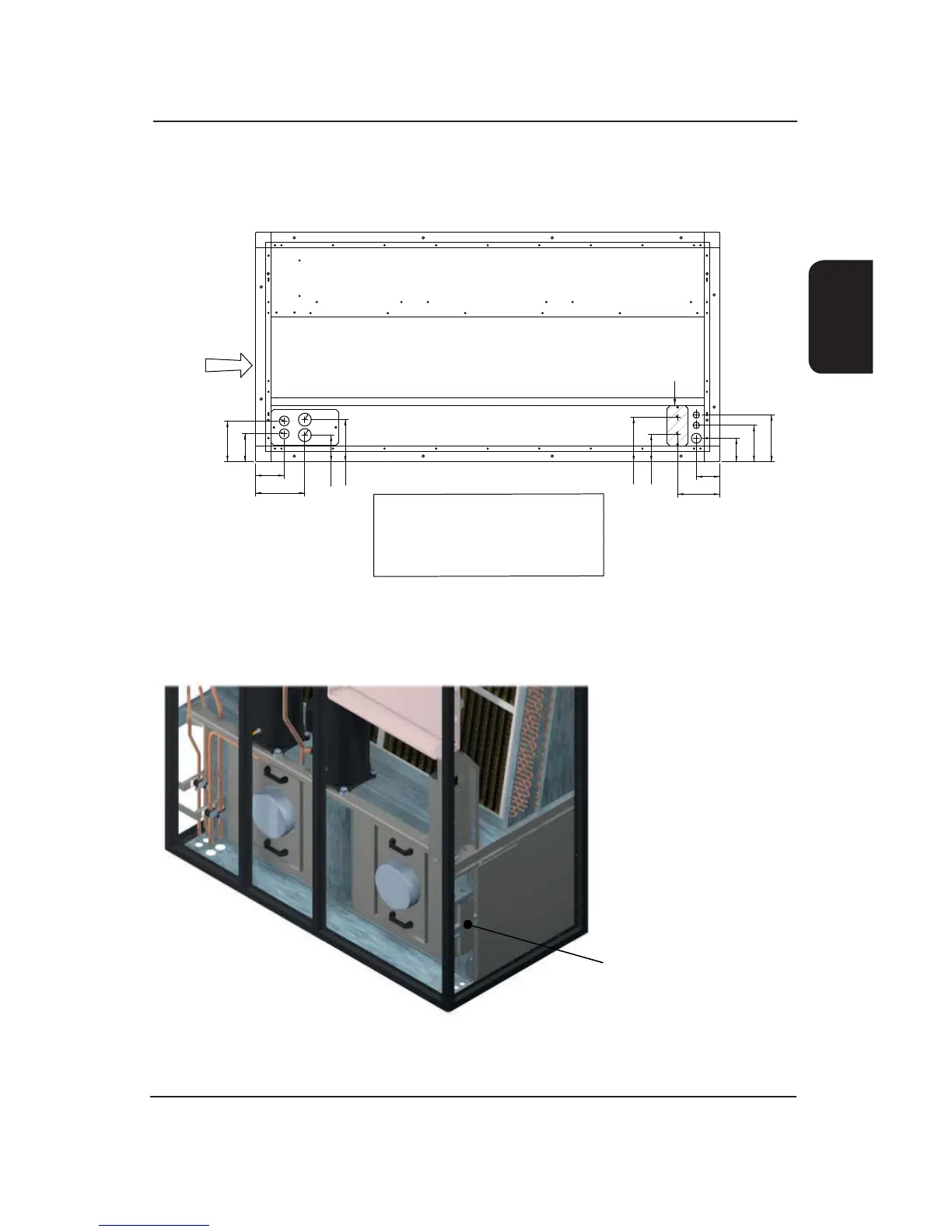

Electrical Incoming Services
FRONT OF UNIT
B
B
WATER FEED, DRAIN
AND ALTERNATIVE
MAINS POWER AND
COMMUNICATIONS
G
G
A
C
E
SC18D HOLE / PIPE SPECIFICATION
HOLE 'A' Ø38MM COMMUNICATIONS
HOLE 'B' Ø5MM MAINS POWER
HOLE 'C' Ø50MM Ø7/8" DISCHARGE LINE (CIRCUIT 1)
HOLE 'D' Ø50MM Ø7/8" DISCHARGE LINE (CIRCUIT 2)
HOLE 'E' Ø38MM Ø5/8" LIQUID LINE (CIRCUIT 1)
HOLE 'F' Ø38MM Ø5/8" LIQUID LINE (CIRCUIT 2)
HOLE 'G' Ø25MM OUT GOING CR/DR POWER
NOTE:
REMOVABLE GLAND PLATE
FOR INCOMING MAINS POWER
F
D
91
163.5
91
141
181
106
172
163
111
191
103
108
158
Incoming Services
X1X1
