AIRLESSCO 450 - Airless Spray Gun

10 11
AIRLESS SPRAY GUN
FIG. 11
3*
9
8
76
5
4
2*
1*
13
19
16
15
14
12
11
10*
17
18

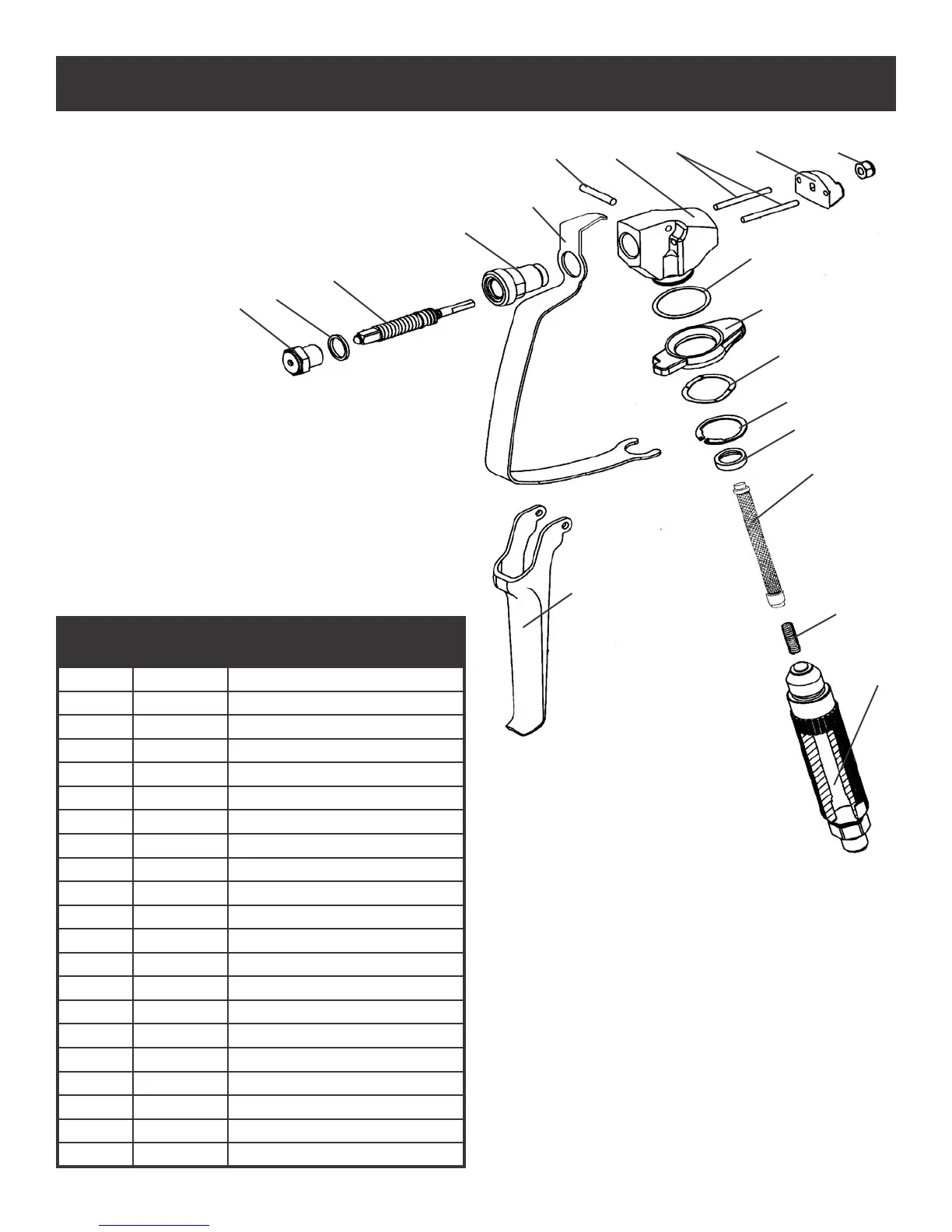

PARTS LIST FIGURE 11
Item No. Part No. Description
1 120-530* Gun Seat Assembly
2 120-535* Gasket-Seat
3 120-520* Needle Assembly
4 120-529 Gun Seat Adapter
5 120-562 Trigger Guard
6 120-539 Pivot Trigger Pin
7 120-509 Gun Head
8 120-540 Actuator Pin (2)
9 120-536 Gun Plate
10 120-038* Nut
11 120-056 Plastic Washer
12 120-538 Gun Trigger Lock
13 120-055 Wave Washer
14 120-049 Retaining Ring
15 120-082 Handle Seal
16 120-090CX Gun Filter-Coarse
120-090FX Gun Filter-Fine
17 120-088 Spring
18 120-099 Gun Handle Assy
19 120-506 Gun Trigger (008 Gun)
* 120-534 Gun Repair Kit
