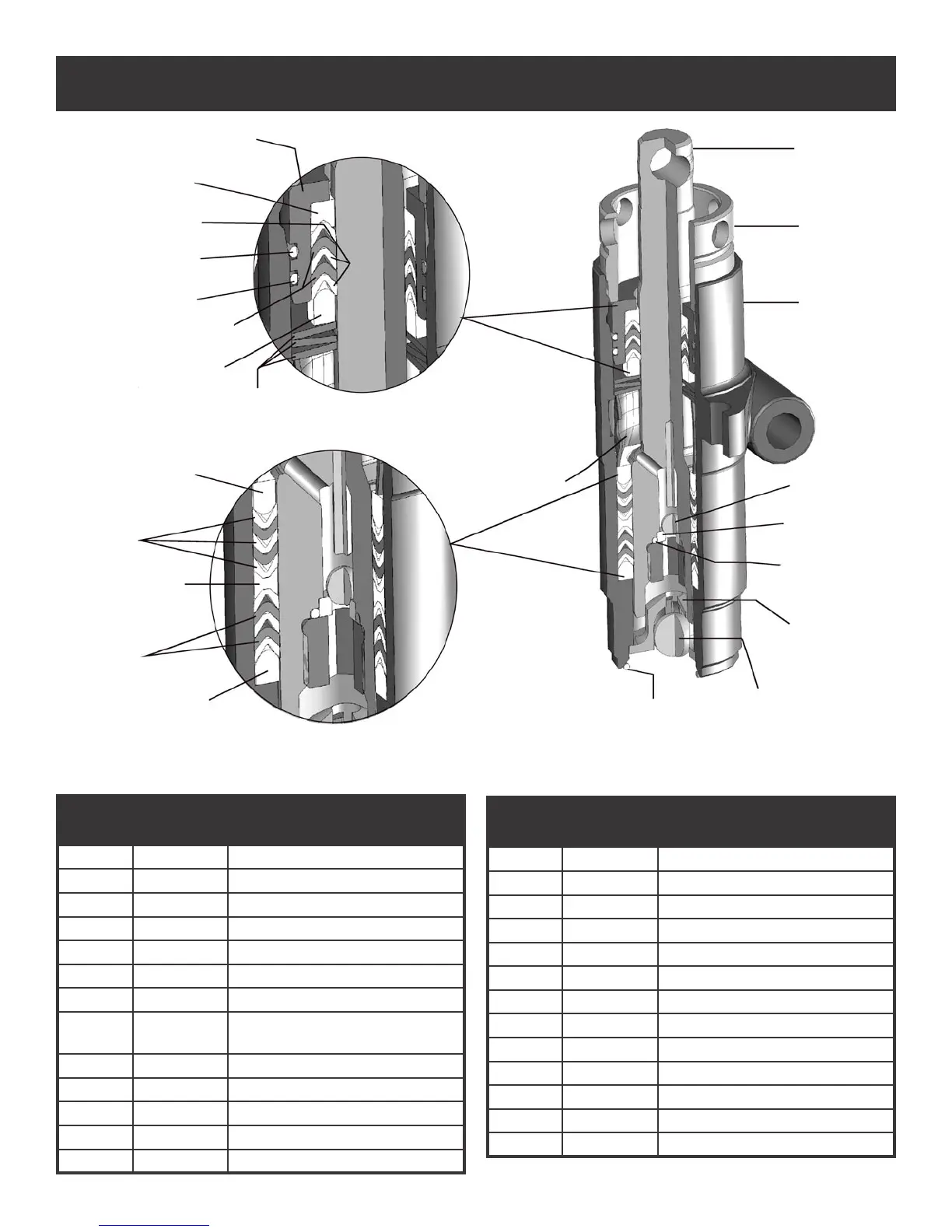

AIRLESSCO 450 - PACKING REPLACEMENT PROCEDURES

18
19
15*
25*
14
13*
12*
11
20*
19*
18*
17*
16*
24*
23*
22*
21
7*
6*
5
4
3*
2*
1*
1*
PARTS LIST FIGURE 17 & 18
Item No. Part No. Description
1* 331-014 Male Gland
2* 331-016 Packing Polyethylene
3* 331-308 Female Adaptor
4 331-011 Fluid Pump Body
5 331-029 Suction Ball Guide
6* 331-030 Suction Ball
7* 106-011 O-Ring
8 331-409
331-292
Suction Seat (Carry & Lo-Boy)
Suction Seat (Hi-Boy)
9 331-034 Suction Nut
10 331-314 Outlet Seat Retainer
11 331-026 Outlet Seat
12* 331-100 O-Ring
13* 331-027 Outlet Ball
PARTS LIST FIGURE 17 & 18 CONT.
Item No. Part No. Description
14 331-708 Piston
15* 331-018 Spacer
16* 331-025 Belleville Springs
17* 331-022 Male Gland
18* 331-023 Packing Polyethylene
19* 331-021 Female Gland
20* 331-019 Packing Holder
21 331-037 Packing Nut
22* 331-307 Packing Leather
23* 331-306 Packing Leather
24* 106-009 White O-Ring
25* 106-010 Black O-Ring
* 331-210 Packing Kit
FIG. 18
PACKING REPLACEMENT PROCEDURES
NOTE: Original packing set was (1) 331-016 and (2) 331-306, less than the standard LP setup. When repacking, use
standard packing kit (331-210)
