AIRLESSCO 450 - Complete Sprayer; 21 Frame Assy

20
21

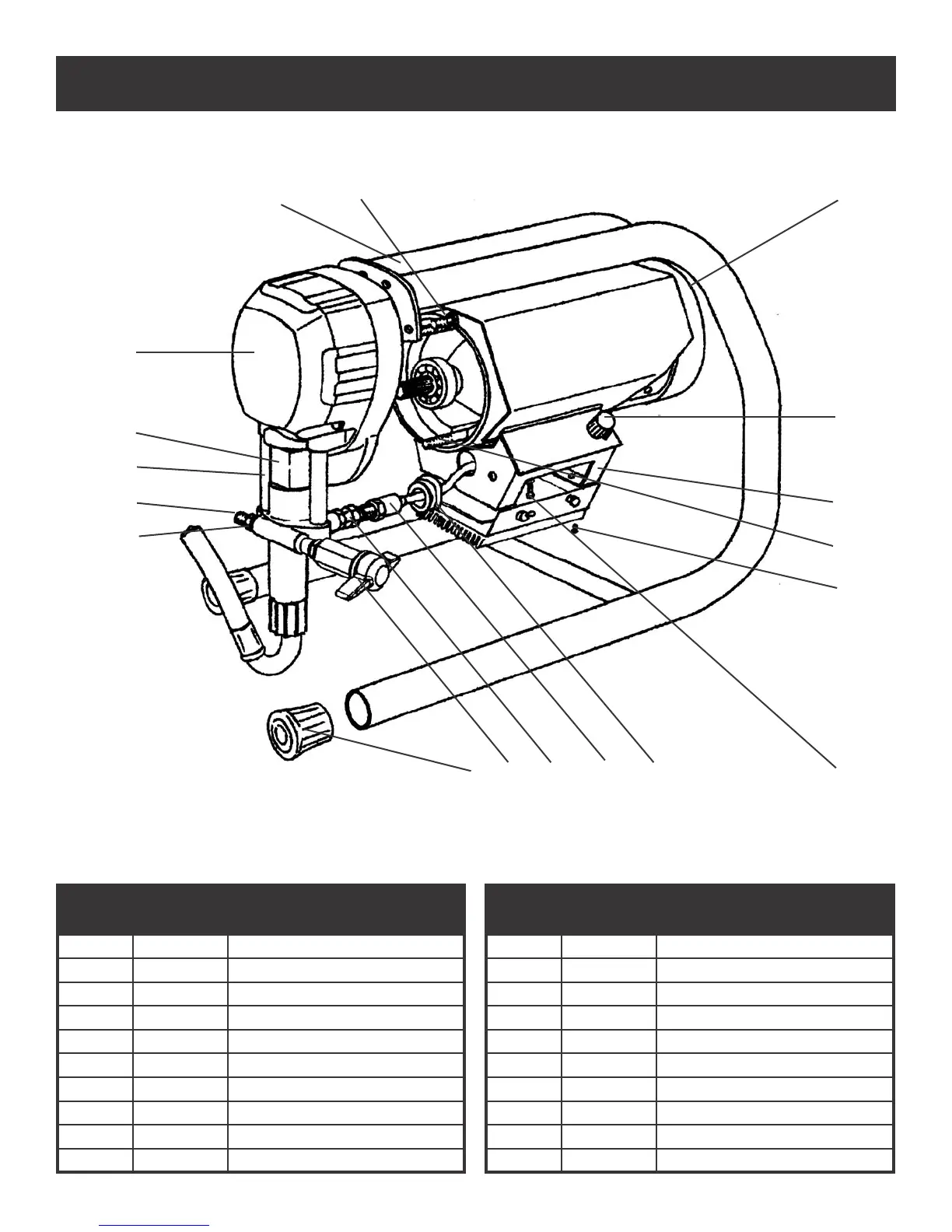

PARTS LIST FIGURE 21
Item No. Part No. Description
1 331-785 Fan
2 331-786 Fan Cover
3 117-090 Fan Cover Screws (3)
4 117-044 Knob
5 331-321 Terminal Box
6 331-787 Bolt (.6HP)
7 111-037 Heatsink Screw (4)
8 100-382 Screw (2)
9 106-500 Sensor Seal
10 331-294-99 Sensor
PARTS LIST FIGURE 21 CONT
Item No. Part No. Description
11 100-003 Swivel
12 100-180 Prime Valve
13 331-048 Rubber Boot (2)
14 100-318 Bolt (2)
15 115-019 Hose Connector (1/4”)
16 331-074 Tube Spacer (2)
17 331-111 Shield
18 331-234 Cover
19 331-401 Frame
20 119-048 Screw (4)
CARRY FRAME MODELS
FIG. 21
1, 2, 3
4
5
6
7
8910111213
14
15
16
17
18
19 20
