Shutdown and Cleaning
22 3A0994E

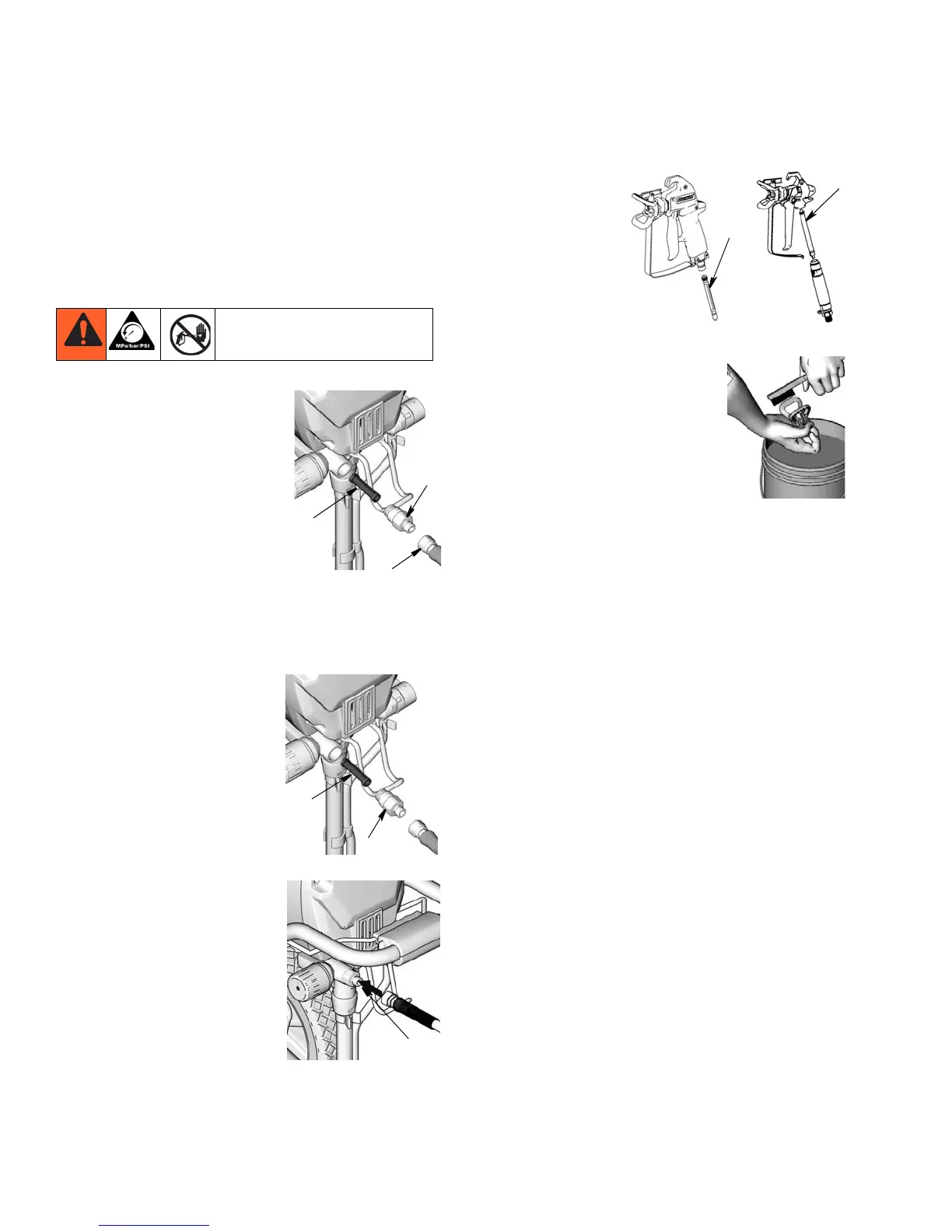

Cleaning InstaClean
™
Fluid
Filter (SP300, Mustang 3100
Only)
The InstaClean Fluid Filter prevents particles from
entering paint hose. After each use, remove and clean it
to insure peak performance.
1. Relieve pressure, page 10.
2.
a. Disconnect airless spray
hose (a) from sprayer
b. Unscrew outlet fitting (b).
c. Remove InstaClean Fluid
Filter (c).
3. Check InstaClean Fluid Filter (c) for debris. If
needed, clean filter with water and a soft brush.
a. Install closed
(square) end of Insta-
Clean Fluid Filter (c)
in sprayer.
b. Screw outlet fitting
(b) into sprayer.
4. Tighten outlet fitting and
reconnect hose (a) to
sprayer. Use two wrenches to
tighten securely.
Cleaning Gun
• Clean gun fluid fil-
ter (d) with water
or flushing solvent
and a brush every
time you flush the
system. Replace
gun filter if
damaged.
• Remove tip and
guard and clean with water or
flushing solvent. A soft brush can
be used to loosen and remove
dried on material if needed.
• Wipe paint off outside of gun
using a soft cloth moistened with
water or flushing solvent.
a
b
c
ti9347a
c
b
ti9347a
a
ti9674a
ti9668a
d
(ASM 500)
d
ti11455a
(Mustang 2)
ti9671a
