Installation
44
GasEye Cross Duct SG and MG
Operat
ing instructions,
0
5
/202
1
Receiver unit
1. Cautiously dismount housing lid by unscrewing each of the four bolts. Do it
carefully because receiver unit lid is not attached to the rest of the unit by any
other way than the bolts.

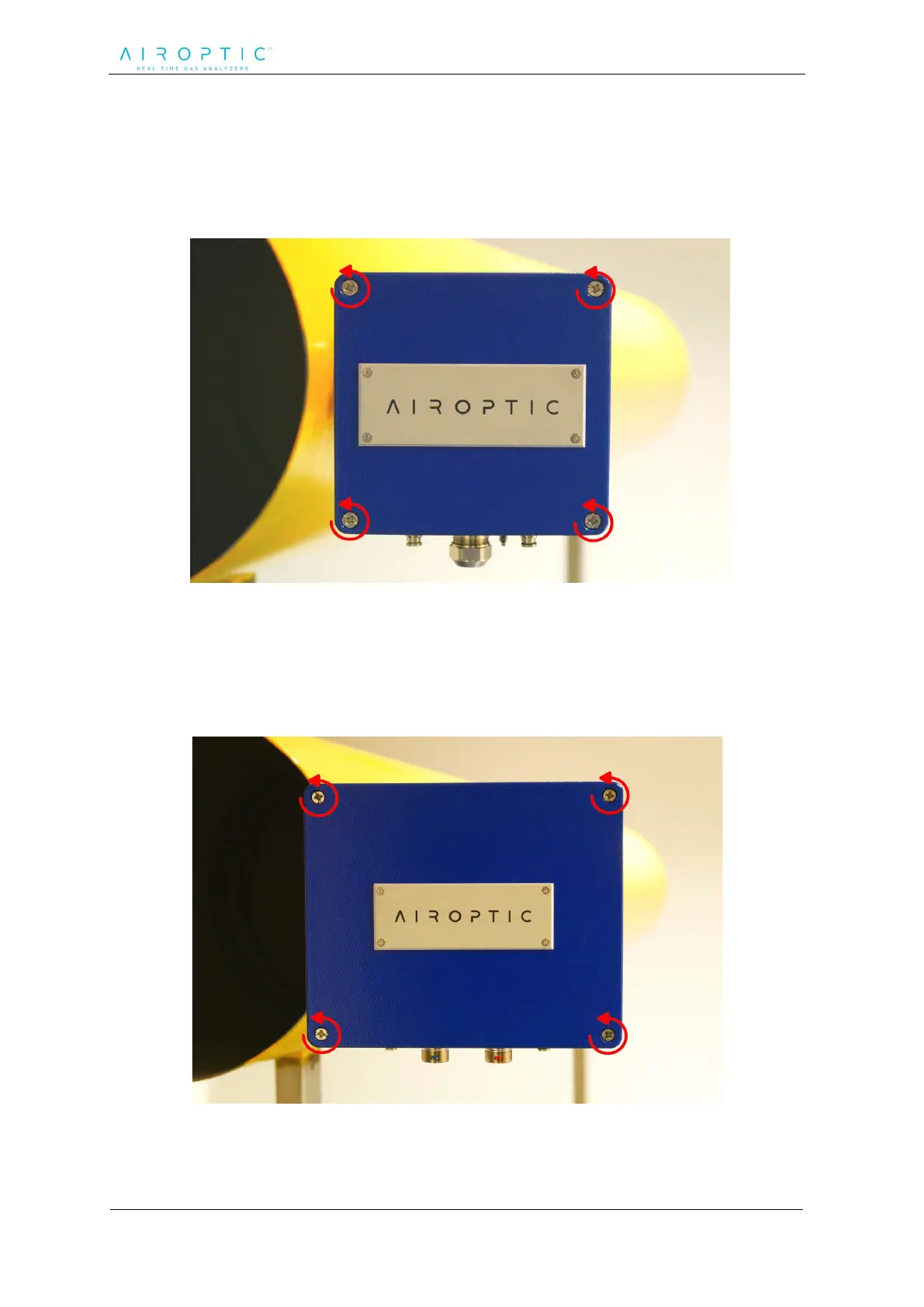

Figure 42. Receiver unit housing lid bolts.
Transmitter unit
1. Cautiously dismount housing lid by unscrewing each of the four bolts. Do it
carefully because receiver unit lid is not attached to the rest of the unit by any
other way than the bolts.
Figure 43. Transmitter unit lid bolts.
