Electrical installation
56
GasEye Cross Duct SG and MG
Passive analog outputs
Passive analog outputs require external powering for operation. Please refer to Figure
55 for output signal connection.

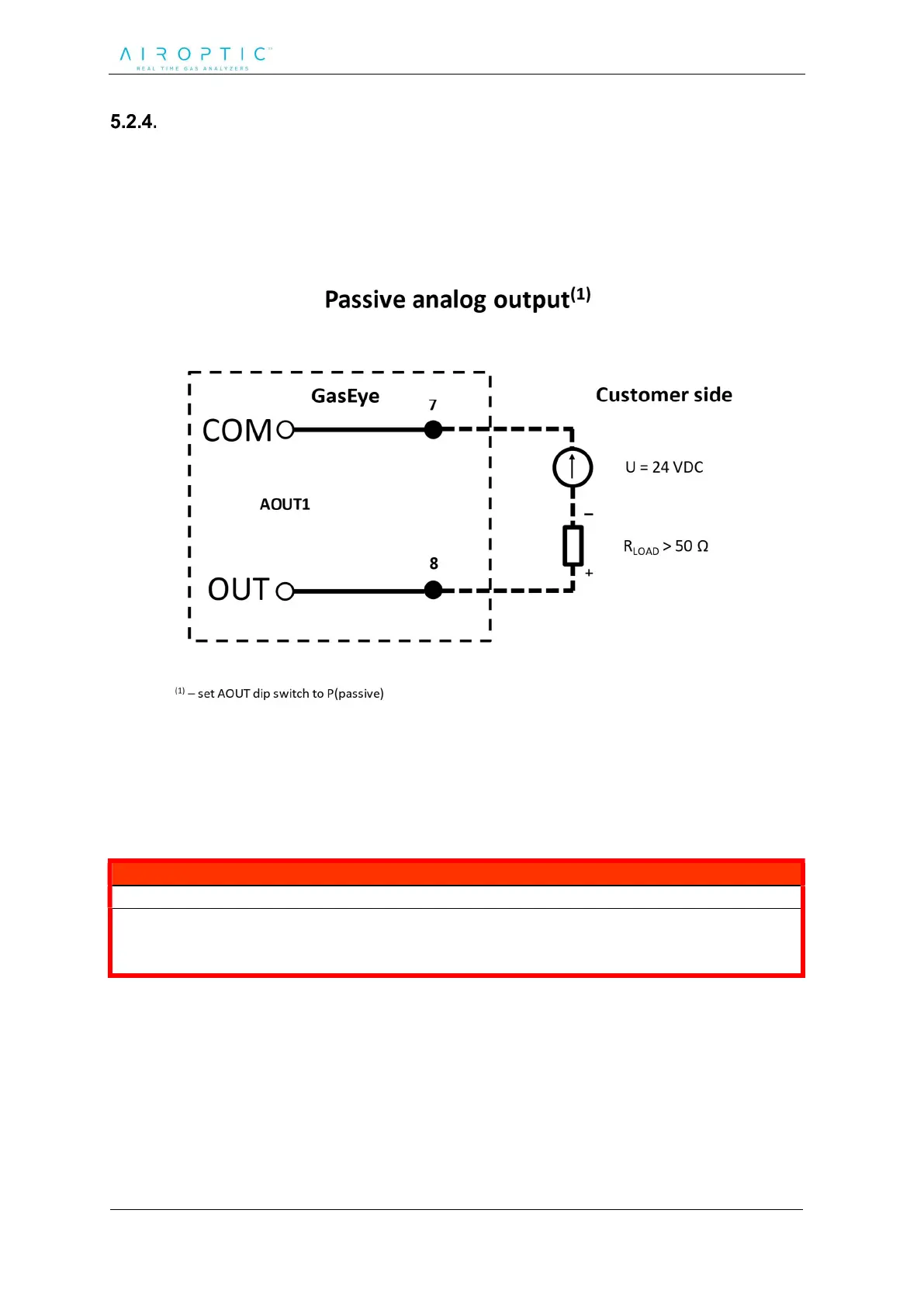

Figure 55. Exemplary usage of passive analog output.
R
LOAD
should be at least 50Ω
GasEye Cross Duct does not provide supply voltage for the passive analog outputs,
thus they MUST BE powered externally. Please set the dip switch to Passive (P)
before powering up the system.
