Airoptic GasEye - Receiver Unit - Loop Cable Installation Instruction

Electrical installation
GasEye Cross Duct
Operating i
nstructions,
0
5
/202
1
65

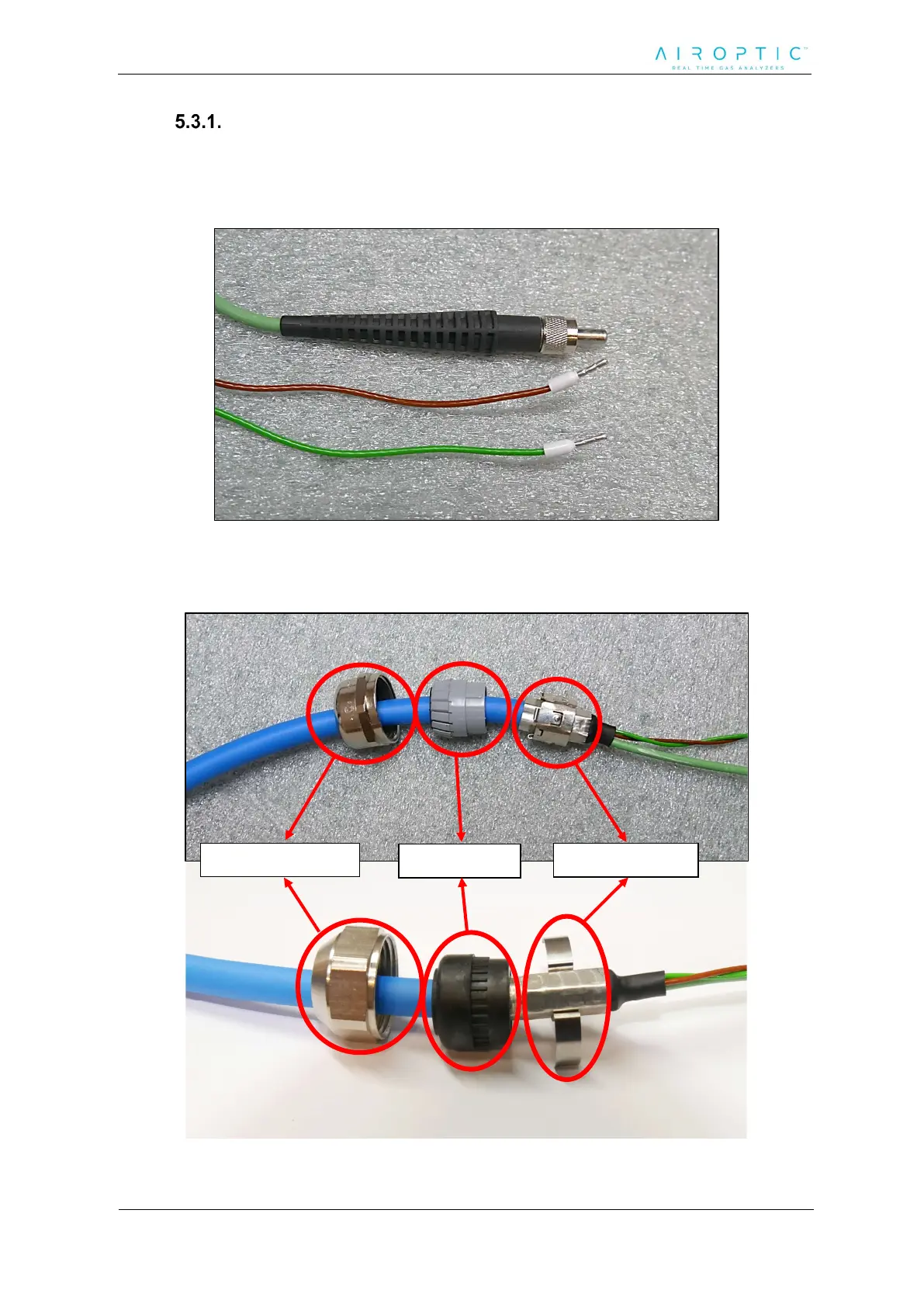

Receiver unit – loop cable installation instruction:
1. Cautiously dismount housing lid by unscrewing each of the four bolts.
2. Prepare the hybrid loop cable for connections.
Figure 65. Hybrid loop cable details.
3. Place the sealing nut and the claw on the hybrid loop cable.
Figure 66. Hybrid loop cable – sealing nut and claw.
Claw
Sealing nut
EMC contact
