Airoptic GasEye - Central Unit - Loop Cable Installation Instruction

Electrical installation
GasEye Cross Duct
Operating i
nstructions,
0
5
/202
1
71

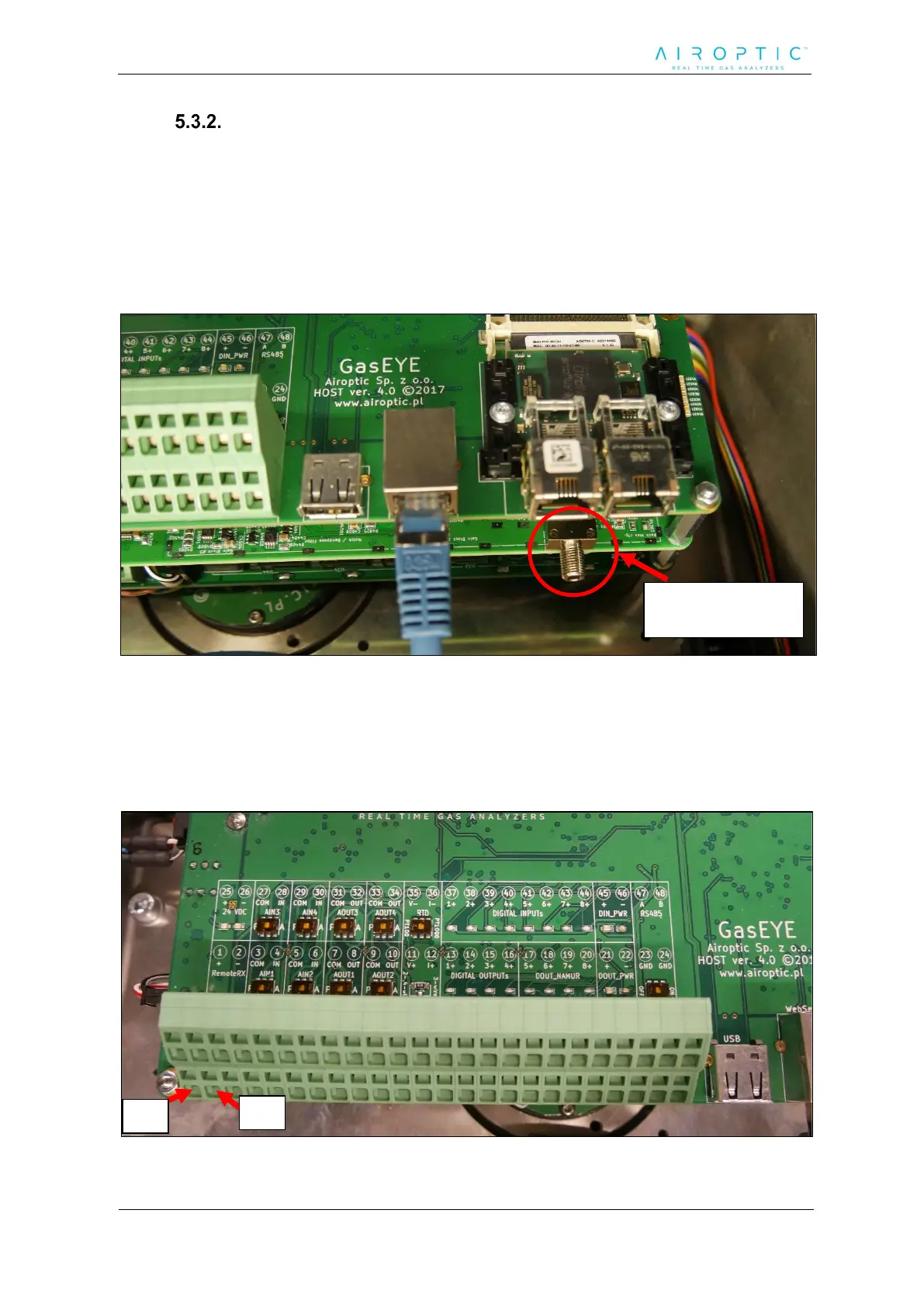

Central unit – loop cable installation instruction:
1. Place the other side of hybrid loop cable in the gland and using two wrenches
(size 24) tighten the connection. The hybrid loop cable should now be blocked
in the gland. This can be checked by slightly pulling the hybrid loop cable.
2. Place the fiber optic cable in the connector. Lock the cable by twisting the nut
on the thread.
Figure 73. Fiber cable connector (central unit).
3. Place the other two wires from the hybrid loop cable in the ports of the terminal:
c. Brown –> 1
d. Green –> 2
Figure 74. Placing wires from the hybrid loop cable in the terminal.
Fiber cable
connector
1
2
