26’ Flying Cloud (30 Amp)

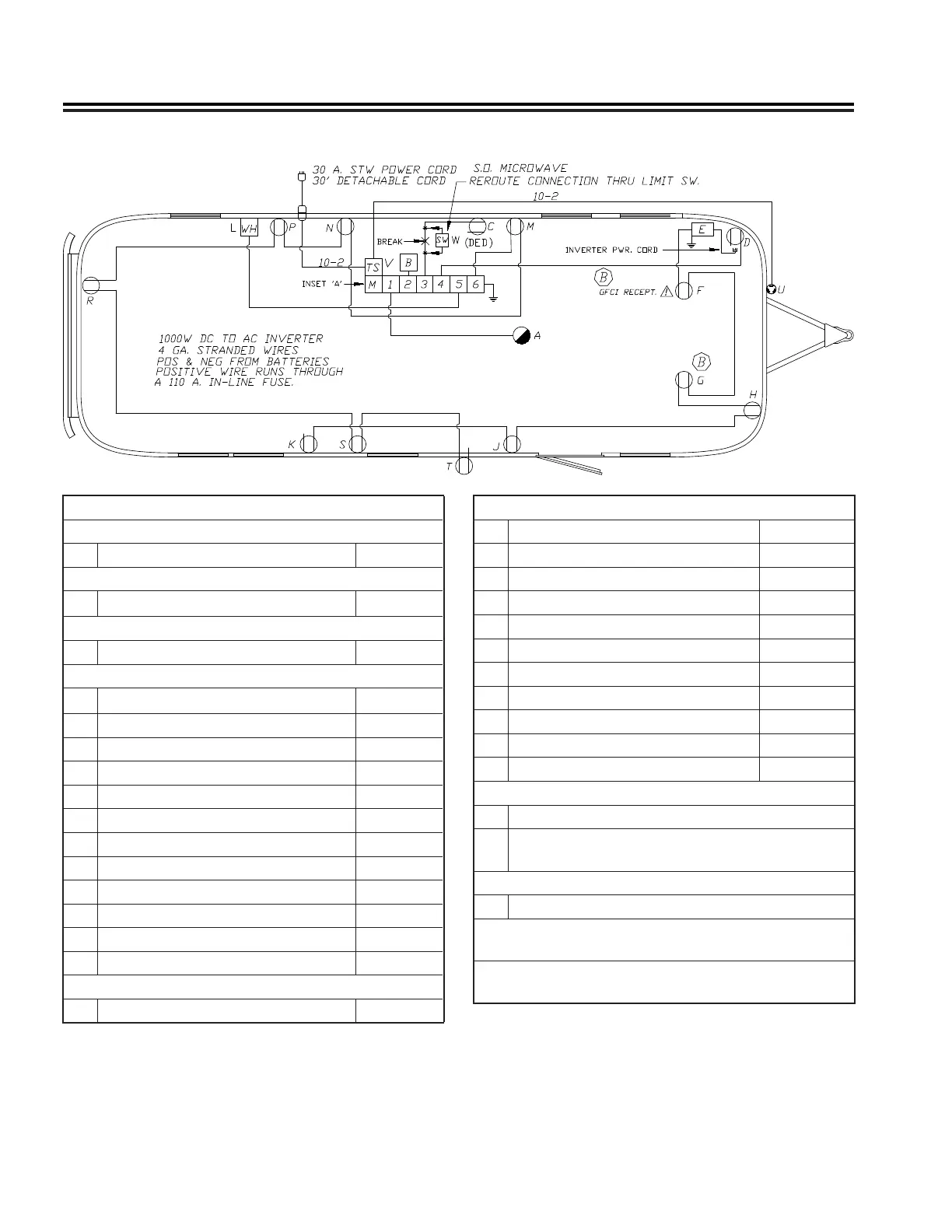

Main Circuit, 30 Amp
Circuit 1, 20 Amp
A Air Conditioner 16.0 Amps
Circuit 2, 20 Amp (15 Amp - CSA)
B Converter (Wired Direct) 8.0 Amps
Circuit 3, 20 Amp (15 Amp - CSA)
C Microwave Receptacle 12.0 Amps
Circuit 4, 20 Amp (15 Amp - CSA)
D Inverter Receptacle 1.25 Amps
D Inverter Receptacle - (CSA) 1.0 Amps
E Inverter 0.0 Amps
F RS Dinette Receptacle (GFCI) 1.5 Amps
F RS Dinette Receptacle (GFCI) 1.0 Amps
G CS Dinette Receptacle 1.5 Amps
G CS Dinette Receptacle - CSA 1.0 Amps
H Blu-Ray Player Receptacle .15 Amps
J Lounge TV Receptacle 1.5 Amps
J Lounge TV Receptacle - CSA 1.0 Amps
K Bedroom TV Receptacle 1.5 Amps
K Bedroom TV Receptacle - CSA 1.0 Amps
Circuit 5, 20 Amp (15 Amp - CSA)
L Water Heater (Wired Direct) 12.0 Amps
Circuit 6, 20 Amp (GFCI) (15 Amp - CSA)
M Galley Receptacle 1.5 Amps
M Galley Receptacle - CSA 1.0 Amps
N Refrigerator Receptacle 2.7 Amps
P RS Bedroom Receptacle 1.5 Amps
P RS Bedroom Receptacle - CSA 1.0 Amps
R Bedroom NS Receptacle 1.5 Amps
R Bedroom NS Receptacle - CSA 1.0 Amps
S Bathroom Receptacle 1.5 Amps
S Bathroom Receptacle - CSA 1.0 Amps
T Outside Receptacle 1.5 Amps
T Outside Receptacle - CSA 1.0 Amps
Remote Generator Hookup Circuit
U 30 Amp Power Inlet
V 30 Amp Transfer Switch UL - CSA Rated
(Attached to back of Power Center)
Slide-out Microwave Option
W 10 Amp Limit Switch UL - CSA Rated
DC to AC 1000W Inverter Rated at 8.5 Amp
Inverting
15 Amp Fuse for Overcurrent. Transfer Switch rated
at 15 Amp. UL 458 Tested. ULC
