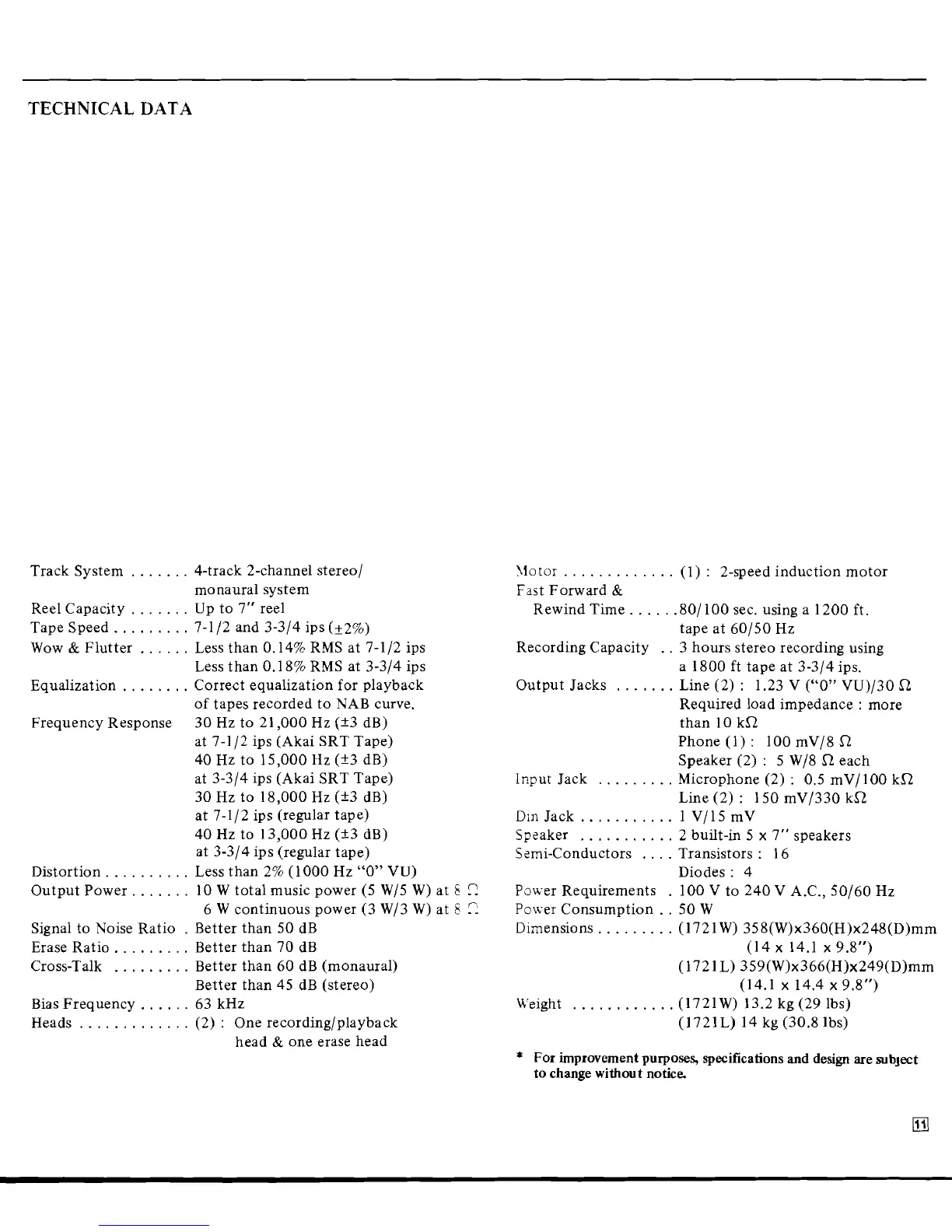

TECHNICAL DATA
Track System ....... 4-track 2-channel stereo/
monaural system
Reel Capacity
.......
Up to 7" reel
Tape Speed
.........
7-112 and 3-314 ips (f2%)
Wow
&
Flutter
......
Less than 0.14% RMS at 7-112 ips
Less than 0.18% RMS at
3-314 ips
Equalization
........
Correct equalization for playback
of tapes recorded to NAB curve.
Frequency Response 30 Hz to 21,000 Hz
(k3 dB)
at
7-11? ips (Akai SRT Tape)
40 Hz to 15,000 Hz
(f
3 dB)
at
3-314 ips (Akai SRT Tape)
30 Hz to 18,000 Hz
(f
3 dB)
at
7-112 ips (regular tape)
40 Hz to 13,000 Hz
(k3 dB)
at
3-314 ips (regular tape)
Distortion.
.........
Less than 2% (1000 Hz "0" VU)
Output Power
.......
10 W total music power (5 W/5 W) at
E
.".
6 W continuous power (3 W/3
W)
at
E
-?
Signal to Noise Ratio . Better than 50 dB
Erase Ratio
.........
Better than 70 dB
Cross-Talk
......... Better than 60 dB (monaural)
Better than 45 dB (stereo)
Bias Frequency
...... 63 kHz
Heads
.............
(2)
:
One recording/playback
head
&
one erase head
Motor
.............
(1)
:
2-speed induction motor
Fast Forward
&
Rewind Time
.....
.80/ 100 sec. using a 1200 ft.
tape at
60150 Hz
Recording Capacity
.
.
3 hours stereo recording using
a 1800
ft tape at 3-314 ips.
.......
Output Jacks Line (2)
:
1.23 V ("0" VU)/30
R
Required load impedance
:
more
than 10
kR
Phone (1)
:
100 mV/8 52
Speaker (2)
:
5 W/8
R
each
......... Input Jack Microphone (2)
:
0.5 mV/ 100 kR
Line (2)
:
1 50 mV/330 kR
...........
Din
Jack 1 V/ 1 5 mV
Speaker ........... 2 built-in 5 x 7" speakers
.... Semi-Conductors Transistors
:
16
Diodes
:
4
Pswer Requirements . 100 V to 240 V A.C., 50160 Hz
Power Consumption
.
.
50 W
D~mensions
.........
(1721W) 358(W)x360(H)x248(D)mm
(14 x 14.1 x 9.8")
(172 1 L) 359(W)x366(H)x249(D)mm
(14.1 x 14.4 x 9.8")
U'elght
............ (1 72 1 W) 13.2 kg (29 lbs)
(1721L)
14 kg (30.8 lbs)
*
For
improvement purposes, specifications and design are subject
to change without notice.
