Akai AP-D210/C

Tone Arm Lifter
Auto-Return
Adjustment
Screw
Height Adjustment Screw

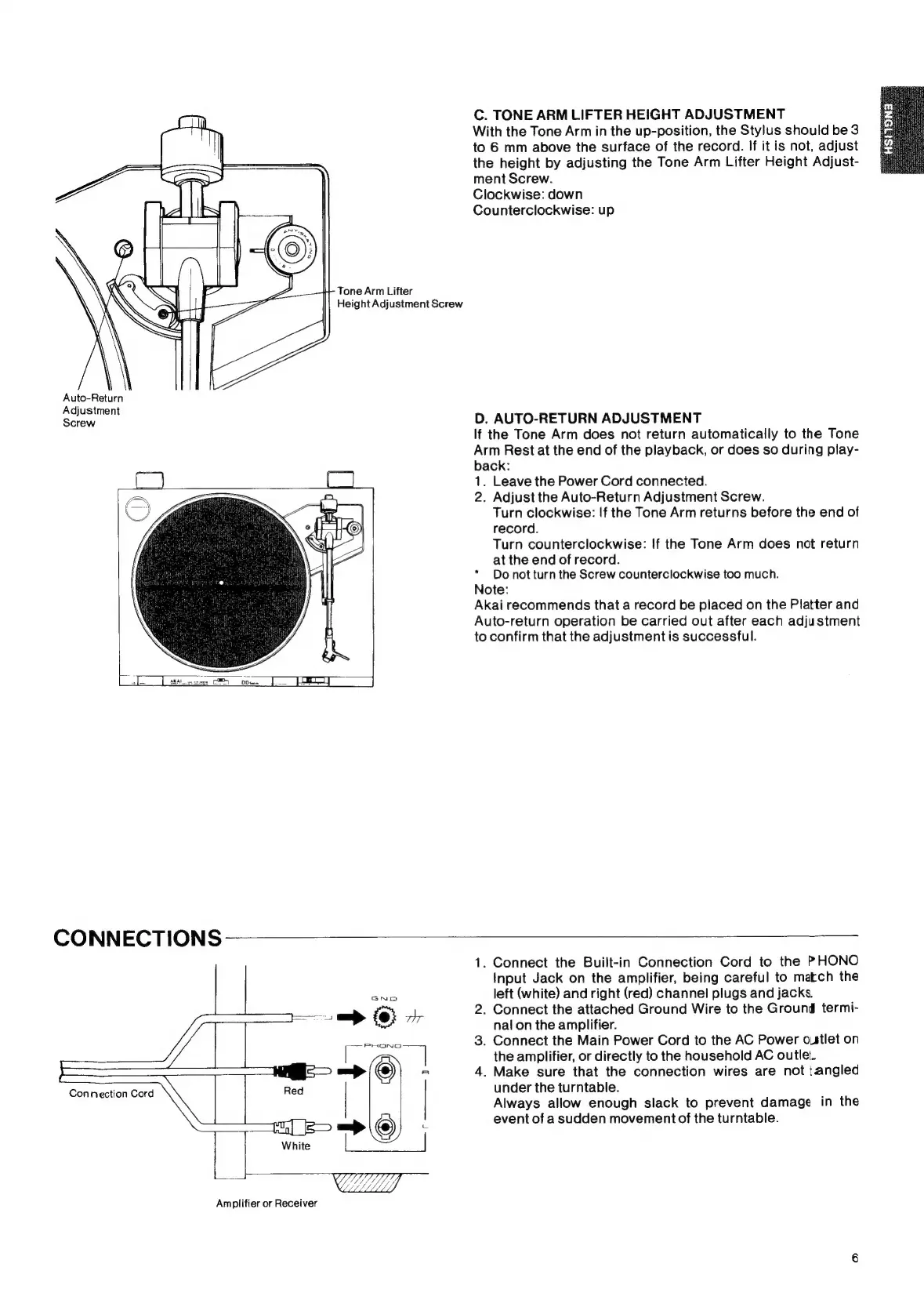

C. TONE ARM LIFTER HEIGHT ADJUSTMENT
With the Tone Arm in the up-position, the Stylus should be 3
to 6 mm above the surface of the record. If it is not, adjust
the height by adjusting the Tone Arm Lifter Height Adjust-
ment Screw.
Clockwise: down
Counterclockwise: up
D. AUTO-RETURN ADJUSTMENT
If the Tone Arm does not return automatically to the Tone
Arm Rest at the end of the playback, or does so during play-
back:
1. Leave the Power Cord connected.
2. Adjust the Auto-Return Adjustment Screw.
Turn clockwise: If the Tone Arm returns before the end of
record.
Turn counterclockwise: If the Tone Arm does not return
at the end of record.
Do not turn the Screw counterclockwise too much.
Note:
Akai recommends that a record be placed on the Platter and
Auto-return operation be carried out after each adjustment
to confirm that the adjustment is successful.
*
CONNECTIONS
GND
> te} she
x \| [ |
we
=>
:
Connection
=X
Red
|
i
15L E> —p>\@) -
White © |
= CLL
Amplifier or Receiver
4
1. Connect the Built-in Connection Cord to the PHONO
Input Jack on the amplifier, being careful to match the
left (white) and right (red) channel plugs and jacks.
2. Connect the attached Ground Wire to the Ground termi-
nal on the amplifier.
3. Connect the Main Power Cord to the AC Power oustlet on
the amplifier, or directly to the household AC outlet.
. Make sure that the connection wires are not tangled
under the turntable.
Always allow enough slack to prevent damage in the
event of a sudden movement of the turntable.
£
