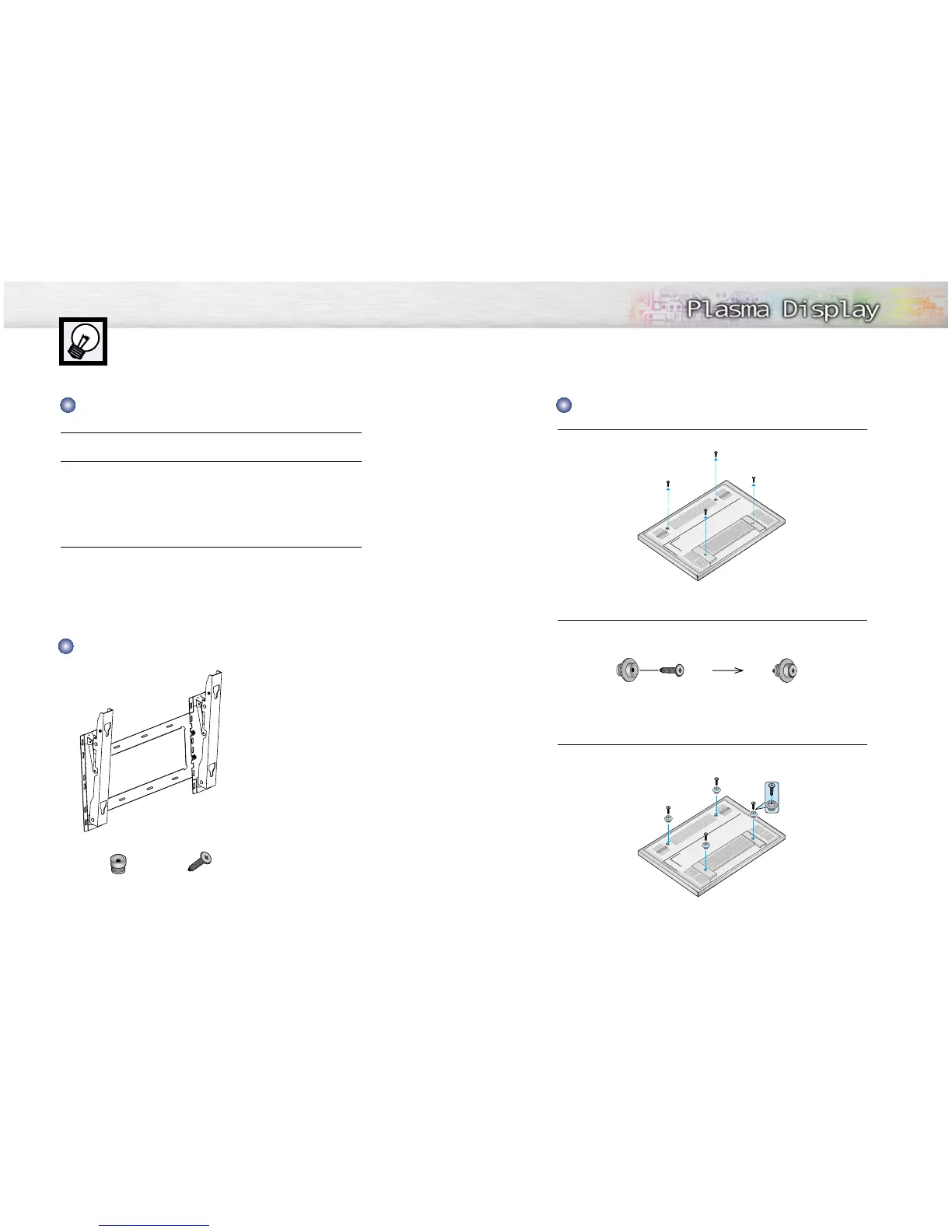

Wall Installation Instructions
14
1
Remove the screws on the rear of the PDP panel.
2
Connect Insulation holders to screws. (see the illustration below)
3
Tighten the screws connected to the Insulation holders on the rear of the PDP panel.
1
Do not install the PDP in any location other than a vertical wall.
2
To protect the performance of the PDP and prevent problems, avoid the following
places.
• Do not install next to smoke and fire detectors.
• Do not install in an area subjected to vibration.
• Do not install in an area subjected to high voltage.
• Do not install near or around any heating apparatus.
3
Use only recommended parts and components.
Screws
(4 EA)
Insulation holders
(4 EA)
Installation Notes
Parts (Wall attachment panel is sold separately. Check with your dealer)
Fixing the PDP panel to the wall attachment panel bracket
Removing four screws
Connecting four screws
Wall attachment panel
To Next Page
