AKG C314 - Application Areas; Lead Vocals

C314 25
Using the Microphone
To mount the H85 on a stand with a 5/8" thread, remove the tread insert and
screw the H85 directly on the stand.
To remove the H85 from the microphone, rotate the bayonet-type lock at the
lower end of the H85 CCW to the point that the H85 unlocks.
Lead Vocals

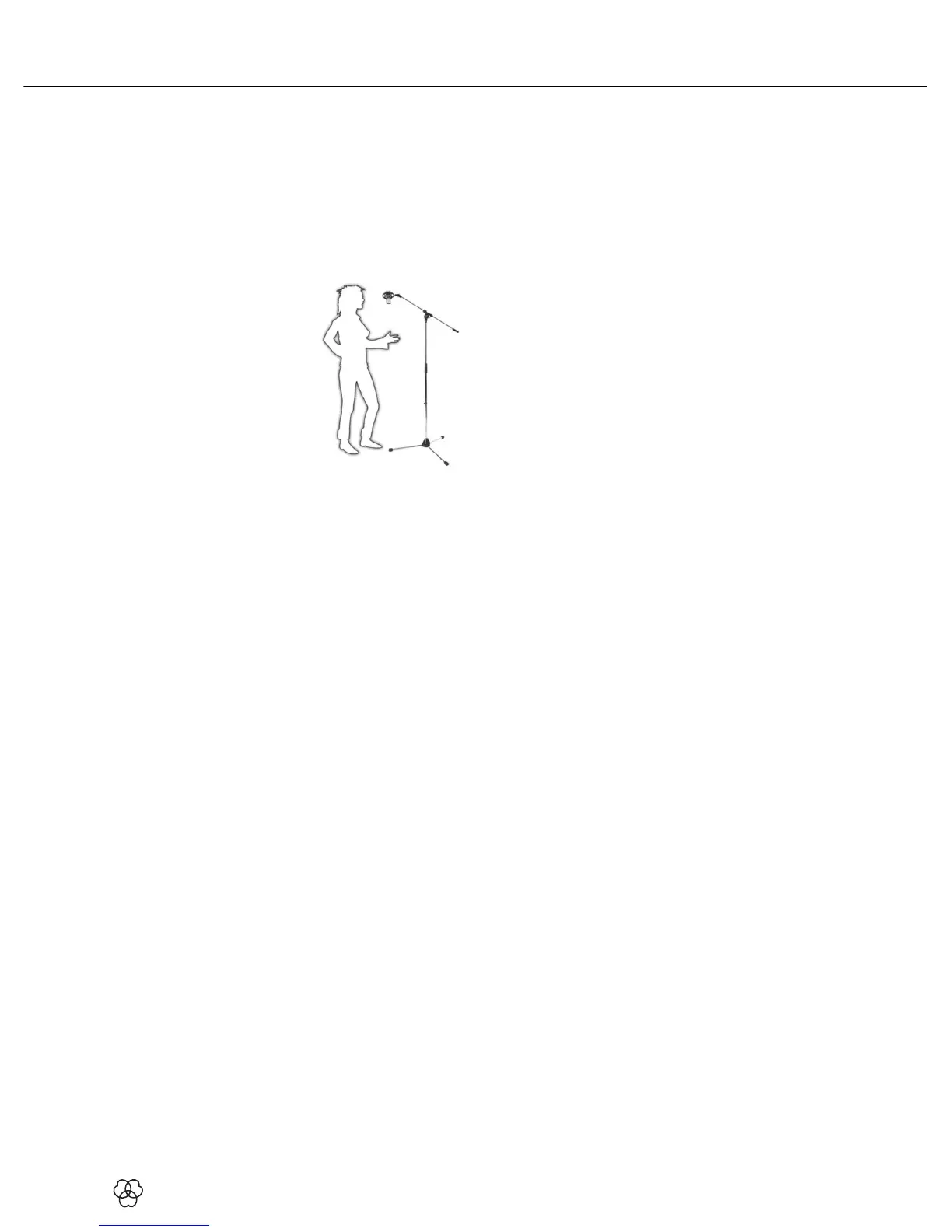

Figure 4: Solo vocalist
 Working distance: 6 to 12 in. (15 to 30 cm)
 Polar pattern: cardioid
 Bass cut: ON
 For best results, be sure to use a pop screen, e.g. the PF80 from AKG. If no
pop screen is available, use at least the supplied W214 windscreen.
Application Areas
