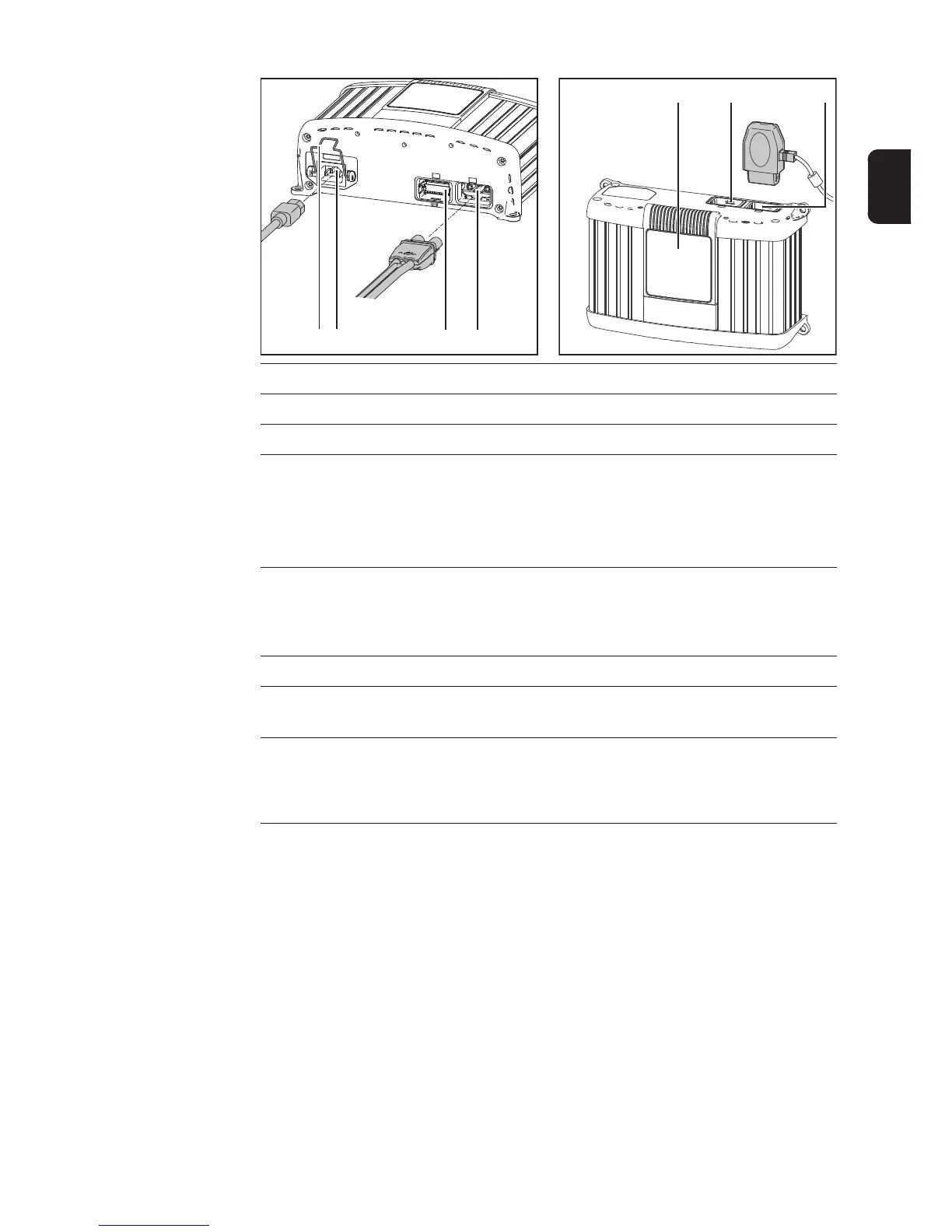

Connections
No. Function
(1) Mains cable safety clip
(2) AC input - mains socket
(3) Connection P2 - I/O port - no function, can be retrofitted however
for connecting the options:
- Immobiliser
- Common error message
- Immobiliser and common error message
(4) Connection P1 - charger lead socket
used to connect the charger lead
also for connecting the temperature-controlled charging or external Start/Stop op-
tions
(5) Removable display
(6) Connection P3 - visual port
for connecting the internal display
(7) Connection P4 - multiport
for connecting the options:
- Status lamp
- Software update via USB connection
(1)(2)
(3) (4)
