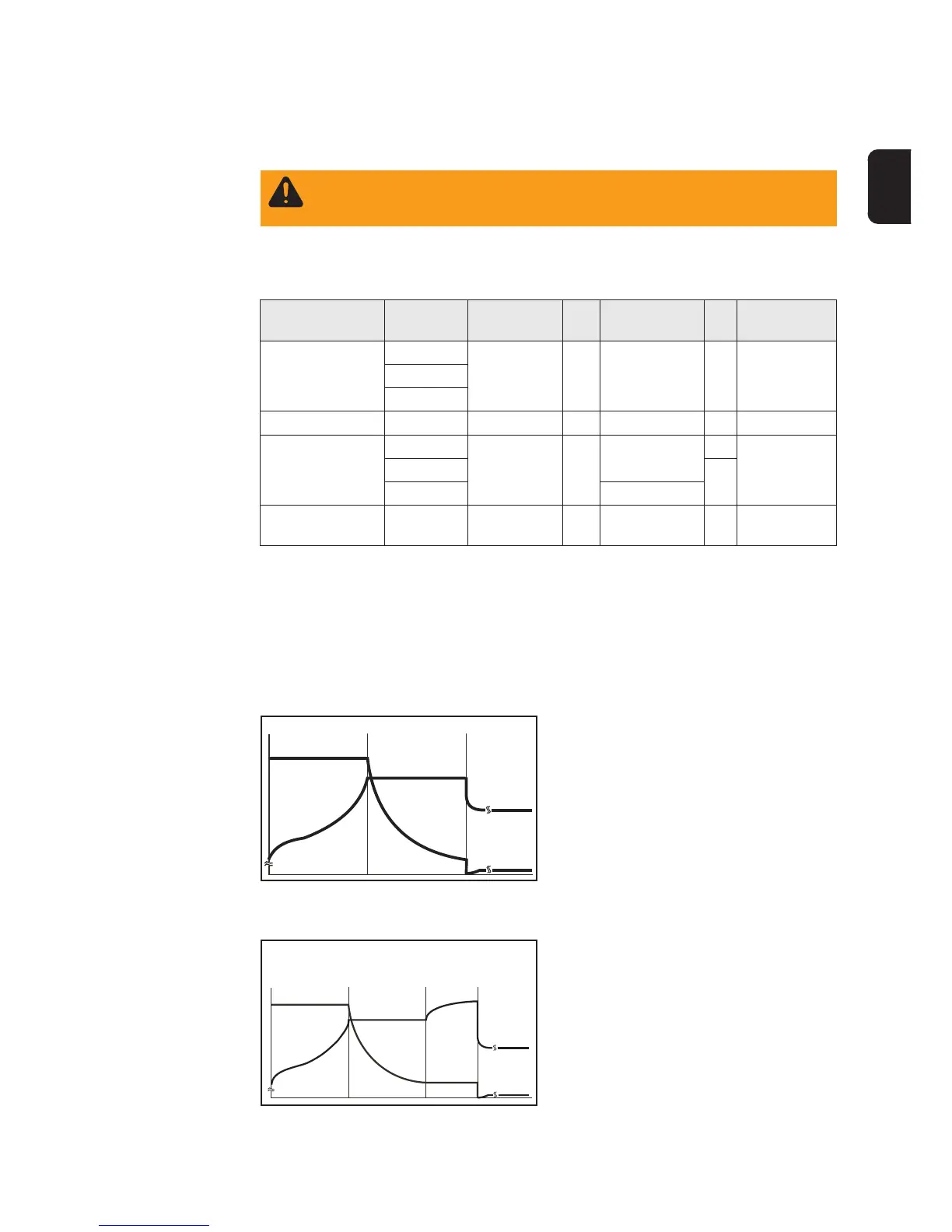

Charging characteristic IUoU:
I
1
= Main charging current
U
1
= Final charging voltage
U
2
= Conservation charging voltage
Refresh characteristic IUIoU:
I
1
= Main charging current
U
1
= Final charging voltage
I
2
= Recharging current
U
2
= Conservation charging voltage
WARNING! Operating the equipment incorrectly can cause serious injury and
damage. Follow the battery manufacturer's instructions. The battery must not be
connected to the charger when setting parameters.
Operating mode Battery Characteris-
tic
I
1
U
1
[6/12/24V] I
2
U
2
[6/12/24V]
Charging WET IUoU 35* 7.2/14.4/28.8 - 6.75/13.5/27
AGM
GEL
Back-up mode All IU 35 6.75/13.5/27 - -
Refresh WET IUIoU 35* 7.2/14.4/28.8 4 6.75/13.5/27
AGM 1,2
GEL 7.05/14.1/28.2
Power Supply
mode
None IU 35 6.75/13.5/27 - -
I
1
Main charging current [A]
maximum device current: 35 A
* 20 A per 100 Ah of specified battery capacity
U
1
Final charging voltage [V]
I
2
Recharging current [A] per 100 Ah of specified battery capacity
U
2
Conservation charging voltage [V]
