Plumbing
21

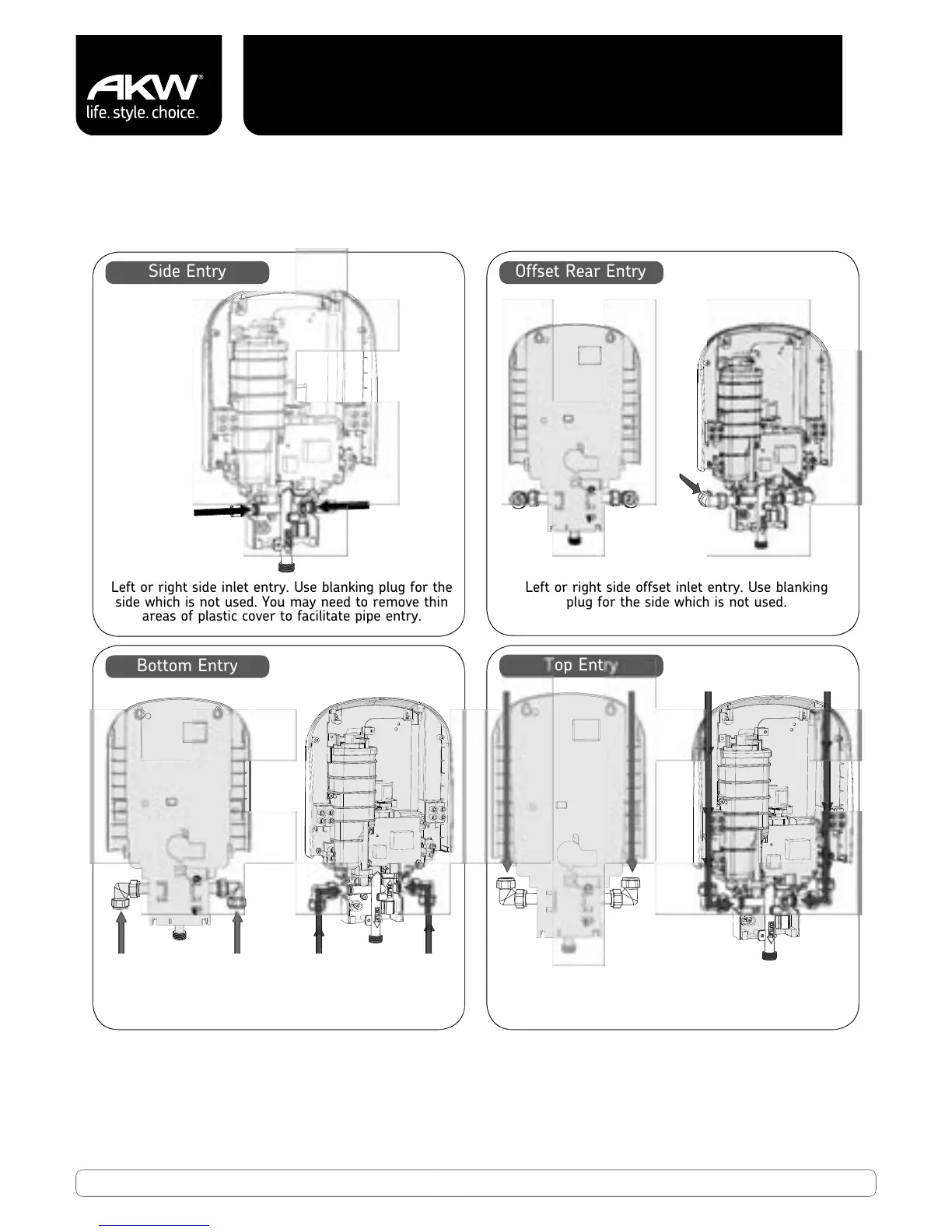

Plumbing Entry Points
Determine pipework position and select the inlet option most suited to your situation. Always
prime pipework and flush clear of debris.
Note - Some water from the factory testing may escape when the blanking plugs are removed.
Side Entry Offset Rear Entry
Bottom Entry
Top Entry
Left or right side inlet entry. Use blanking plug for the
side which is not used. You may need to remove thin
areas of plastic cover to facilitate pipe entry.
Left or right side offset inlet entry. Use blanking
plug for the side which is not used.
Left or right side top inlet entry. Use blanking plug
for the side which is not used.
Left or right side bottom inlet entry. Use blanking
plug for the side which is not used.
