Check List
Make sure the shower unit is fixed firmly in correct position and the mounting screw fixings are
fully tightened.
Ensure electrical connections are tightly secured.
This shower appliance must be earthed: The earth conductor must be sleeved.
The shower must be connected to its own independent electrical circuit connected to RCD
consumer unit 30 mA (must be fitted) and in-turn have a dedicated isolating switch near the
shower appliance.
DO NOT connect any other device to the same power source as the shower.
The current carrying capacity of the cable must be at least that of the shower circuit protection.
Trim and replace the pipe and cable entry covers.
DO NOT connect any other fittings to this shower.
DO NOT use silicone sealant to seal the shower appliance to the wall.

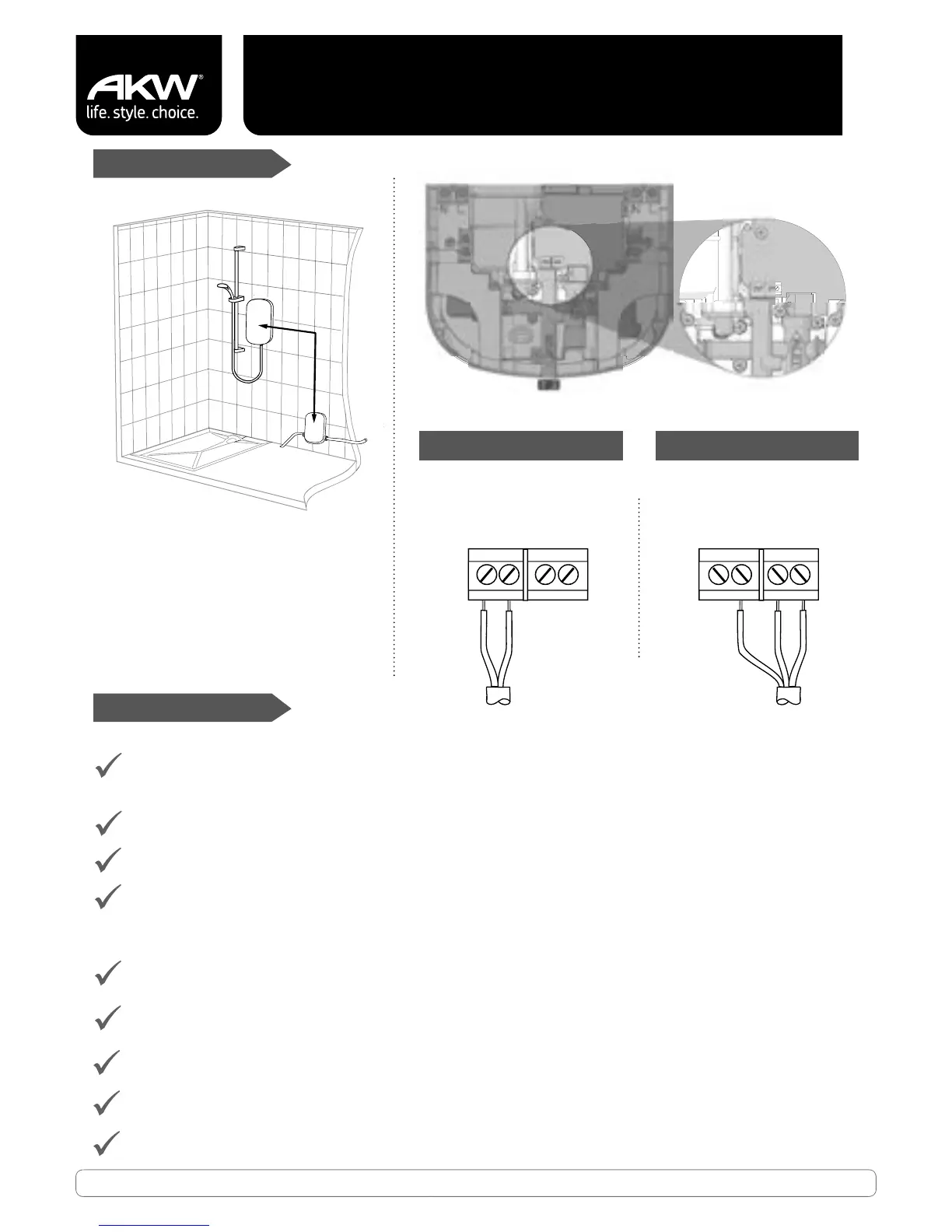

To connect the pump using wired
connectivity, please follow the
diagram shown. If you wish to connect
the pump to the shower wirelessly,
an optional wireless pump module is
required. Please enquire using stock
code: 29014 as a reference.
Electrical Check List
Connecting Waste Pump
Digital Pump Connections
Fixed Speed Pump Connections
CN6 CN7CN6 CN7
Gnd
Sig
X
No
Connect
X
No
Connect
Any polarity
White
Red
Black
(Use electrical insulating sleeve)
