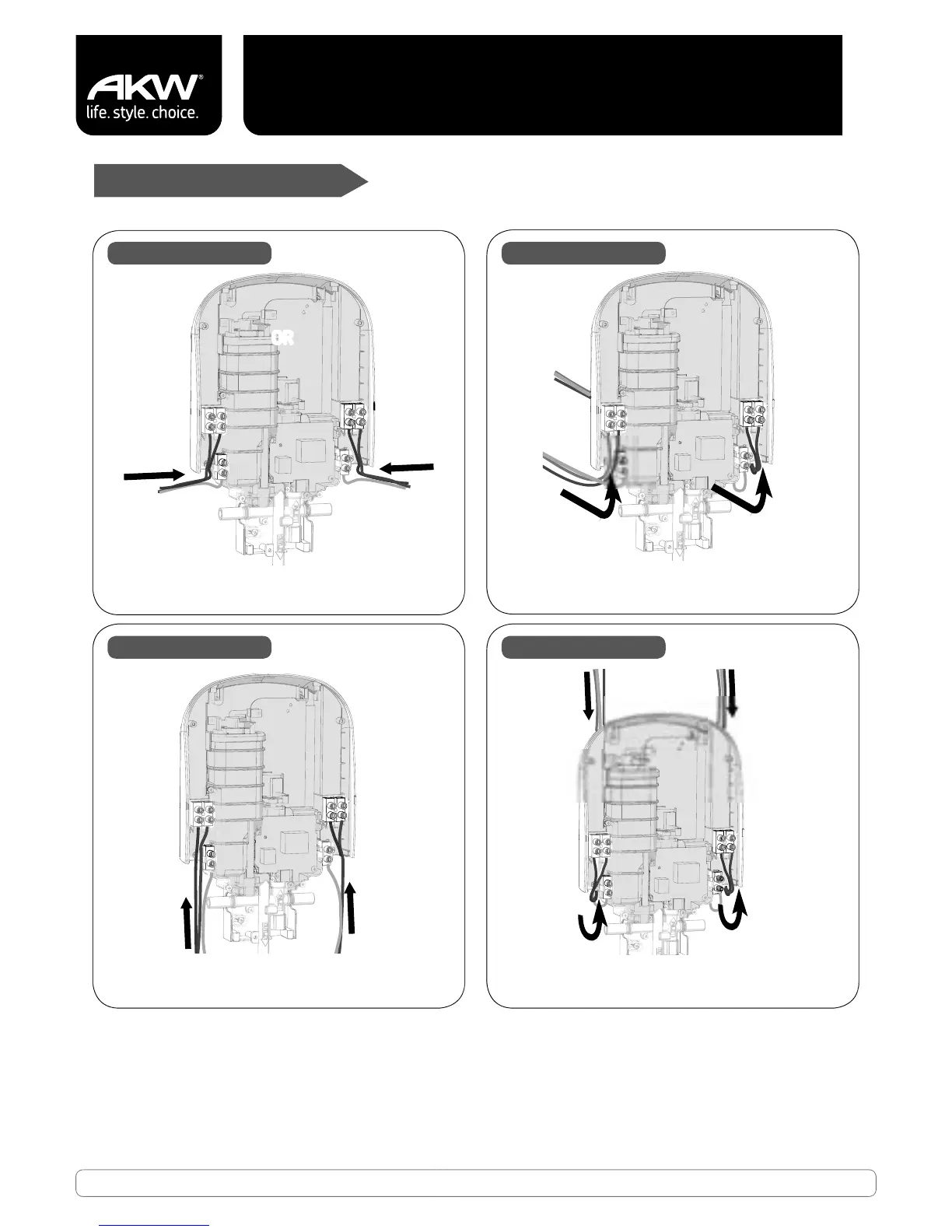

Electrical Entry Points
Determine cable entry position
Side Entry
Rear Entry
Bottom Entry Top Entry
Left or right side cable entry, you may need to remove
thin areas of plastic cover to facilitate Cable entry.
Left or right side rear cable entry.
Left or right side top cable entry. Left or right side bottom cable entry.
Trim and replace pipe and cable entry covers.
Note: Depending on cable size and entry point used, it may be necessary to strip back the outer cable sheath
sufficiently to allow cables to be directed to the terminal connection block within the unit.
L=Brown
N=Blue
E=Green
LEFT
OR RIGHT
