SPLITTER
CONNECTIONS
ADJUSTMENT
M
M
P1
15V
M
Power supply ground
Video signal common
M
Video signal input
Video signal output
Power supply (15 Vdc)
DIV-124
cod. 9730032
M
M
Video signal input
Power supply
P1
15V
Video risers Video risers
DIV-124
cod. 9730032
Internal
conductor
Mesh
COAXIAL
CABLE

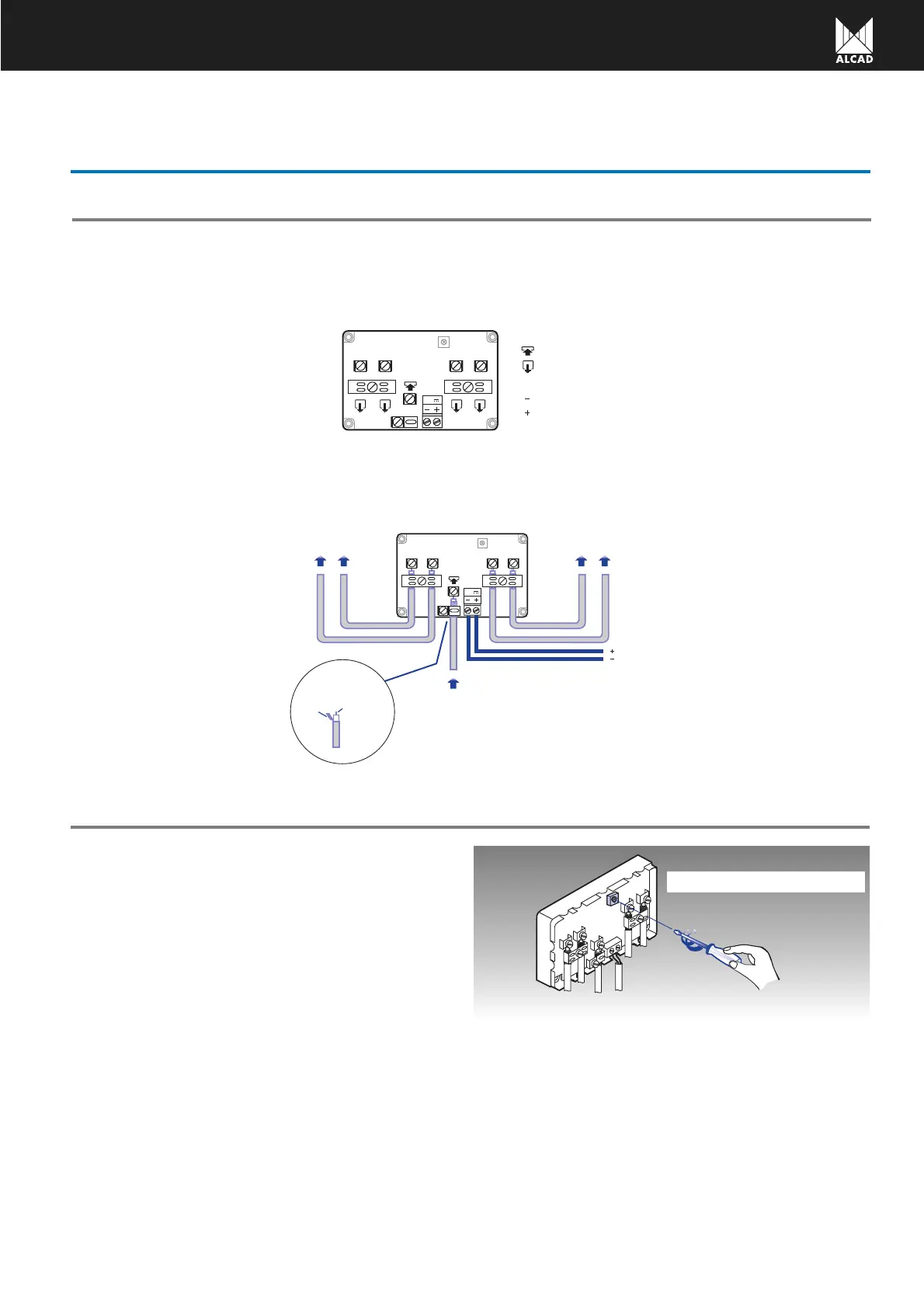

Make the terminal connections as shown. For more information consult the installation wiring diagrams at the back
of this manual.
Description of terminals:
Wiring diagrams:
Amplification of the video signal
Depending on the installation, it may be necessary to
amplify the level of the video signal of the outputs of the
splitter. Use the power control P1 until the desired level
of signal is obtained. The maximum output level which
can be achieved is 1.3.
P1 Amplification of the video signal
