The commissioning of Alcatel-Lucent 8 series and Alcatel-Lucent IP Touch 8 series phone
Extended Edition is the same.
In the following sections, when Alcatel-Lucent IP Touch 4028 Phone, Alcatel-Lucent IP Touch
4038 Phone and Alcatel-Lucent IP Touch 4068 Phone are mentioned, they refer to the two
ranges of sets (Alcatel-Lucent 8 series and Alcatel-Lucent IP Touch 8 series phone Extended
Edition), unless specifically indicated.

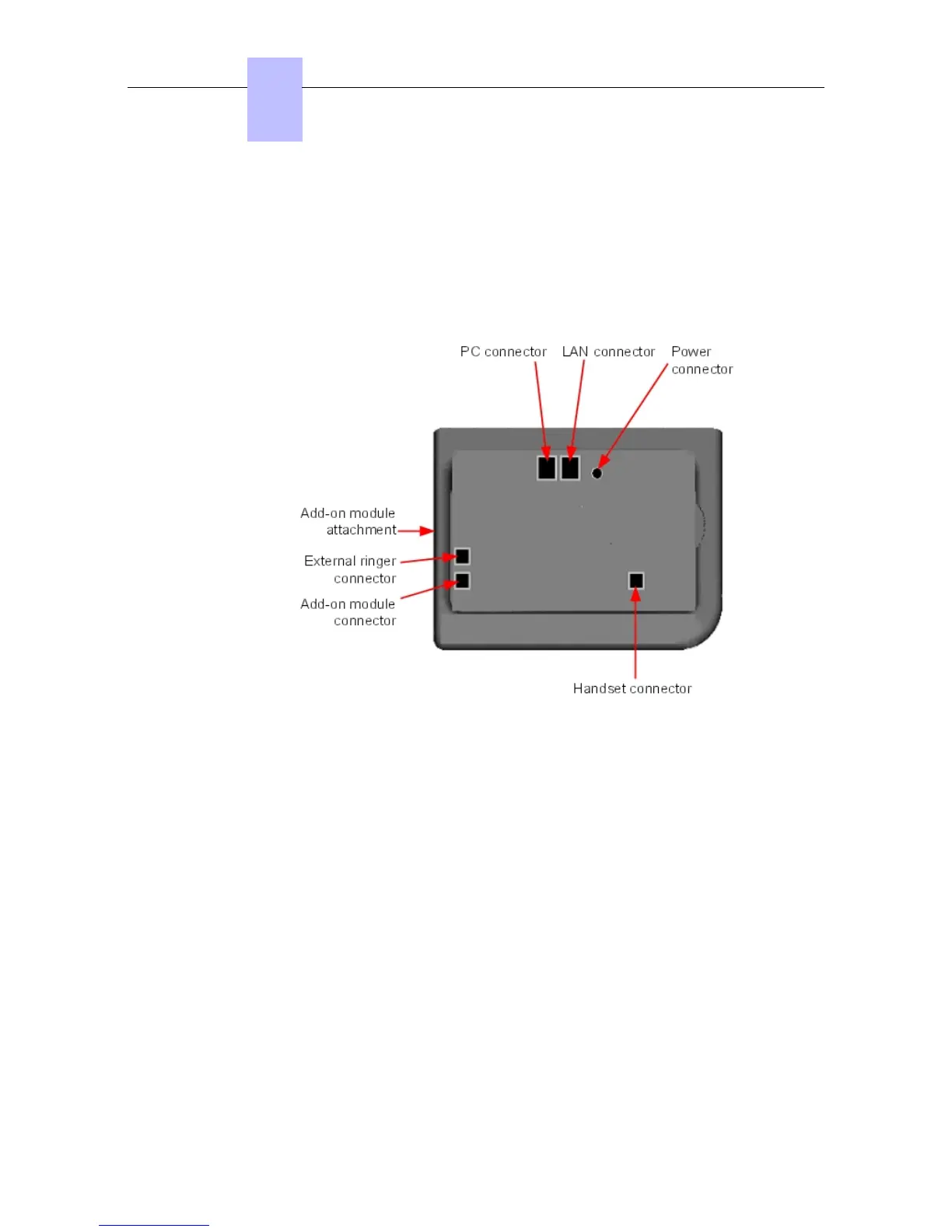

The following figure illustrates the connectors on the base of each set.
Figure 4.45: Alcatel-Lucent IP Touch 4028 Phone, Alcatel-Lucent IP Touch 4038 Phone and
Alcatel-Lucent IP Touch 4068 Phone connectors
4.5.2.1.2 Commissioning the sets
This section describes how to:
- Connect the sets
- Initialize the sets
- Connect optional equipment
- Program keys
Prerequisites
None.
Connecting the sets
This section describes how to:
Chapter
4
&'(
4-64
