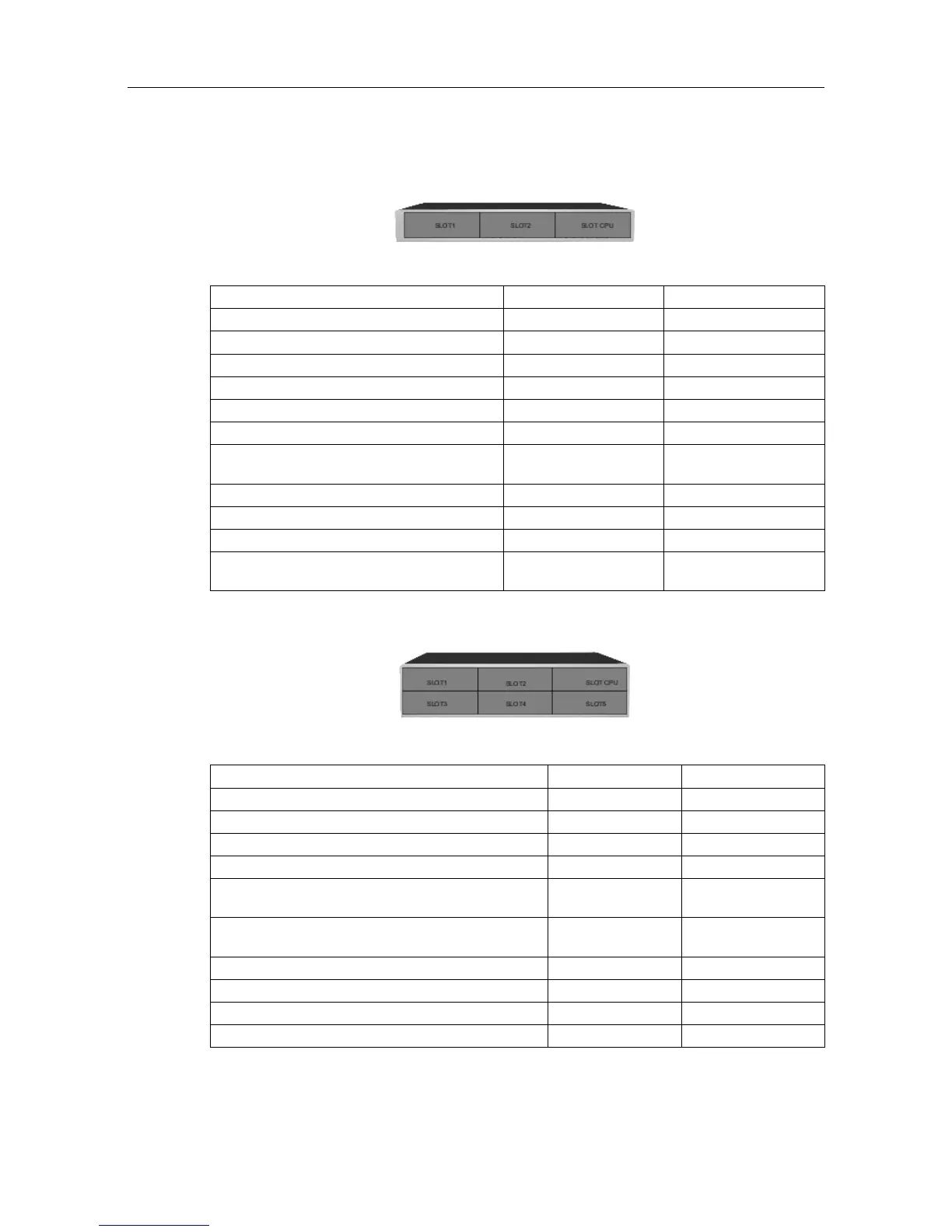

Alcatel-Lucent OmniPCX Office RCE Small User Manual

Boards Slots 1-2 CPU Slot
PowerCPU No Mandatory
MIX x/y/z Yes No
AMIX-1 x/y/z Yes No
UAI4, UAI8, UAI16, UAI16-1 Yes No
SLI4, SLI8, SLI4-1, SLI8-1, SLI4-2, SLI8-2 Yes No
SLI16, SLI16-1, SLI16-2 No No
PRA-T2, PRA-T1, DASS2, DLT2, T1-CAS,
PCM R2
Yes No
APA4, APA8 Yes No
DDI2, DD14 No No
BRA2, BRA4, BRA8 Yes No
LANX8, LANX16, LANX16-1, LANX8-2,
LANX16-2
Yes No
2.4.2.14.3 OmniPCX Office RCE Medium
Boards Slots 1-2-3-4-5 CPU Slot
PowerCPU No Mandatory
MIX x/y/z Yes No
AMIX-1 x/y/z Yes No
UAI4, UAI8, UAI16, UAI16-1 Yes No
SLI4, SLI8, SLI16, SLI4-1, SLI8-1, SLI16-1,
SLI4-2, SLI8-2, SLI16-2
Yes No
PRA-T2, PRA-T1, DASS2, DLT2, T1-CAS, PCM
R2
Yes No
APA4, APA8 Yes No
DDI2, DD14 Yes No
BRA2, BRA4, BRA8 Yes No
LANX8, LANX16, LANX16-1, LANX8-2, LANX16-2 Yes No
 ! "#  "$
        
2-15

Alcatel-Lucent OmniPCX Office RCE Small Specifications

General

Users	Up to 50
Maximum Users	50
SIP Trunks Supported	Yes
VoIP Protocols Supported	SIP, H.323
IP Trunking	Yes
Storage Temperature	-20°C to 70°C
Type	IP PBX
Target Market	Small Businesses
Voicemail	Integrated
IP Phones Supported	Yes
Management Interface	Web-based, CLI
Physical Dimensions	440 x 44 x 280 mm
Power Supply	100-240V AC, 50-60Hz
Operating Temperature	0°C to 40°C
Relative Humidity	10% to 85% non-condensing

Summary

Chapter 1 General Presentation

1.2 Security

Information regarding security aspects, safety rules, and declarations.

1.3 Protection against Interferences

Guidelines and procedures for preventing and mitigating interference.

Chapter 2 Hardware: Platform and Interfaces

2.1 Overview

2.2 Platforms

2.4 Equipment

Information about available hardware boards and optional components.

Chapter 3 System Services

3.1 Software Licence Management

Management of software licenses, modes, and features.

3.2 Software Keys

Explanation of software keys, their types, and management.

3.3 Detailed description

3.4 Descriptions

Chapter 4 Installation and Cabling

4.1 Presentation

4.2 Connections and Cabling

Detailed descriptions and diagrams of system connections.

4.3 Power Supply

Procedures for installing and connecting power supplies and batteries.

4.4 SIP Terminals

Installation and commissioning procedures for SIP terminals.

4.5 8 Series Sets

4.6 9 Series Sets

4.7 V24/CTI Interface Module

Hardware description and connections for the V24/CTI module.

4.8 AP Interface Module

Hardware description and connections for the AP Interface Module.

4.9 S0 Interface Module

Hardware description and connections for the S0 Interface Module.

4.10 Intelligent Base Stations

Installation, configuration, and safety recommendations for base stations.

4.11 IP-DECT Base Stations

Detailed description and connection of IP-DECT base stations.

4.12 PIMphony

4.13 Reflexes Terminals

4.14 Extending Your Installation

4.15 My IC Social Networks

4.16 ACD applications

Chapter 6 Start-Up

6.1 System Startup from a Phone Set

Procedure for starting and configuring the system using a phone set.

6.2 System Startup from OMC

Procedures for starting and configuring the system using OMC.

Chapter 7 Maintenance Services

7.1 Maintenance Level 1

7.1.1 Maintenance

Detailed maintenance procedures for hardware.
