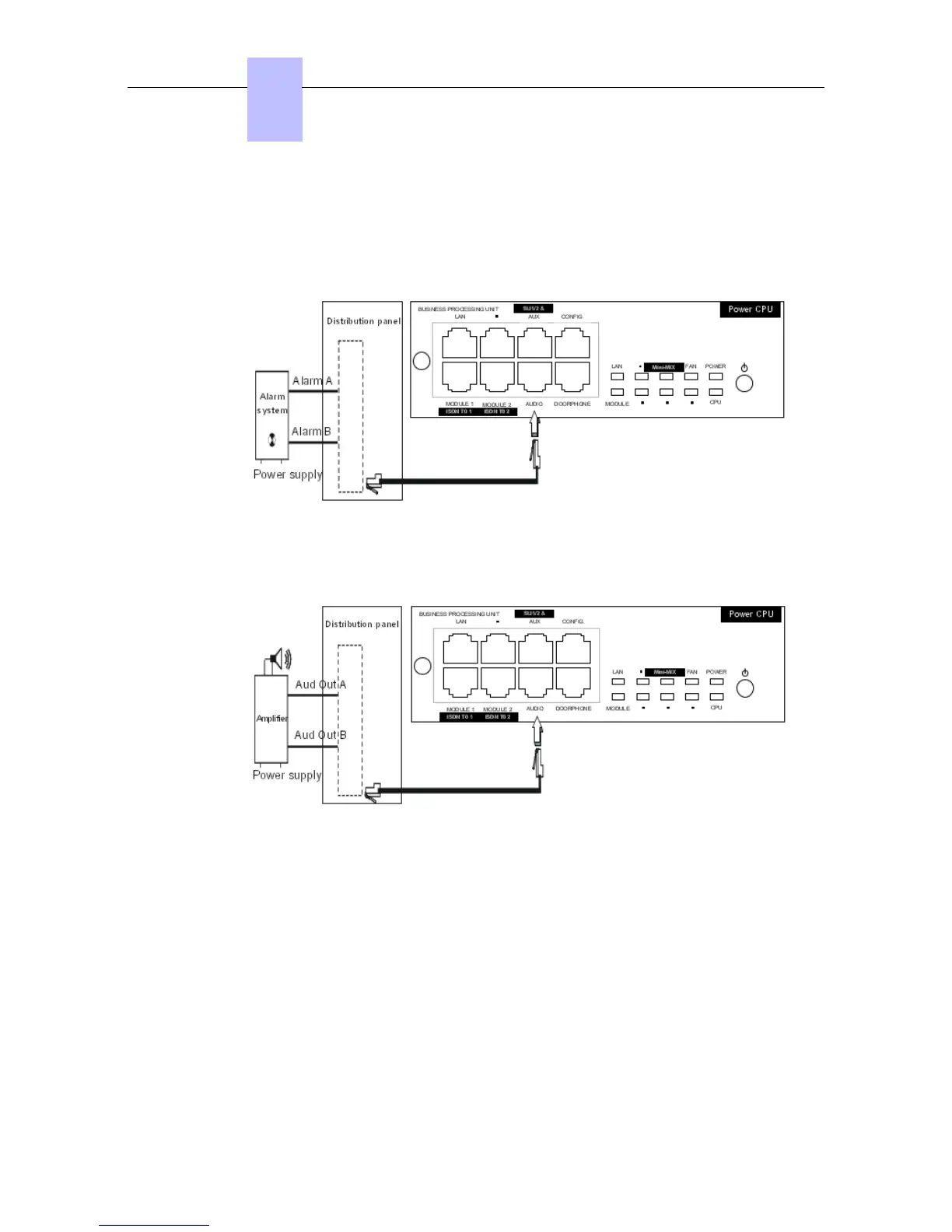

4.2.1.7.3 Connecting an Alarm
The alarm is activated in the event of a false stopping of the system.
It is connected via the ALARM output (control contact closed when idle) of the AUDIO
connector.
4.2.1.7.4 Connecting a Broadcast Loudspeaker
Broadcast loudspeakers are connected via the AUDOUT output of the AUDIO connector.
Audio Output Characteristics:
- Output impedance: < 500 Ohms
- Output level: access + 3 dBr
4.2.1.7.5 Connecting a General Ringer
The general ringer is connected via the CENRG output of the AUX connector.
