Chassis Details OmniSwitch Backup Power Shelf/System (BPS)
page 4-2 OmniSwitch 6860 Hardware Users Guide May 2014
Chassis Details

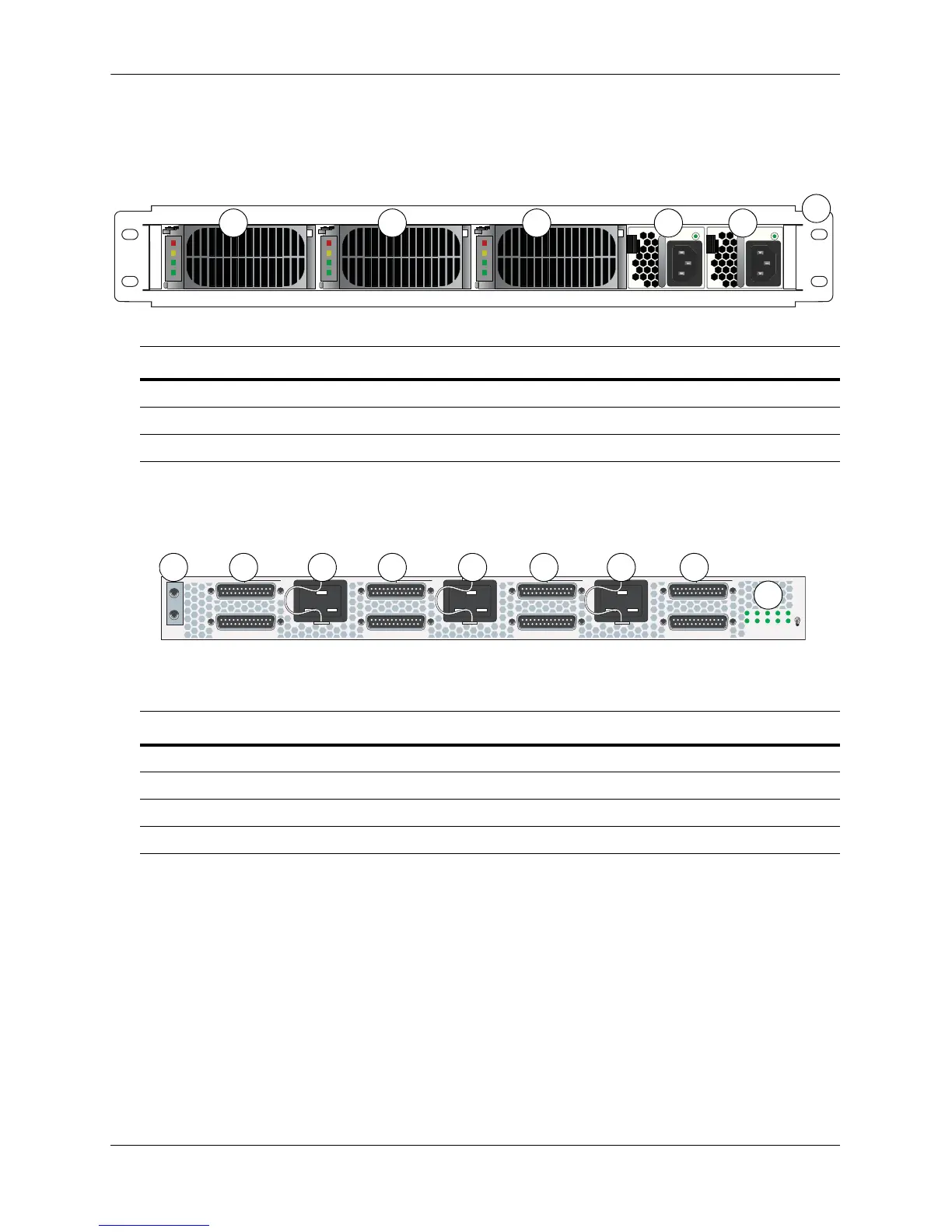

OmniSwitch Backup Power Shelf/System (BPS) Front Panel
OmniSwitch Backup Power Shelf/System (BPS) Rear Panel
Item Description
A - C
PoE Power Supply Bays
D and E
System Power Supply Bays
F
Removable Mounting Plate
Item Description
A
Chassis Grounding Lug
B
DB25 Power Connectors (providing system power to OS6860 switches)
C
Power Cord Connectors for PoE Power Supplies
D
Chassis LEDs
DB C EA
F
OmniSwitch BPS
OK
C2 C4 C6 C8
C8C6C4C2
C1
C3 C5 C7
A
D
B C B C B C B
