Alcoa 200 - Service Tool Kit 42-233; Fill and Bleed Unit 970-100

200 Series Tooling Alcoa Fastening Systems
42
Fill and Bleed Unit, Model 970-100, is designed
for the rapid and efficient filling of a tool with
hydraulic fluid and bleeding air from the hydrau-
lic system. It can be used to fill and bleed a
Model 200, Model 970, 10000 or 40000 Huck
Installation Tool. The Fill and Bleed Unit weighs
FILL AND BLEED UNIT MODEL 970-100
50 pounds as shipped, without hydraulic fluid.
The outside dimensions are 14” wide x 16” long
x 14” high.
The unit operates on 110 volt, single phase,
50/60 hertz electrical power.

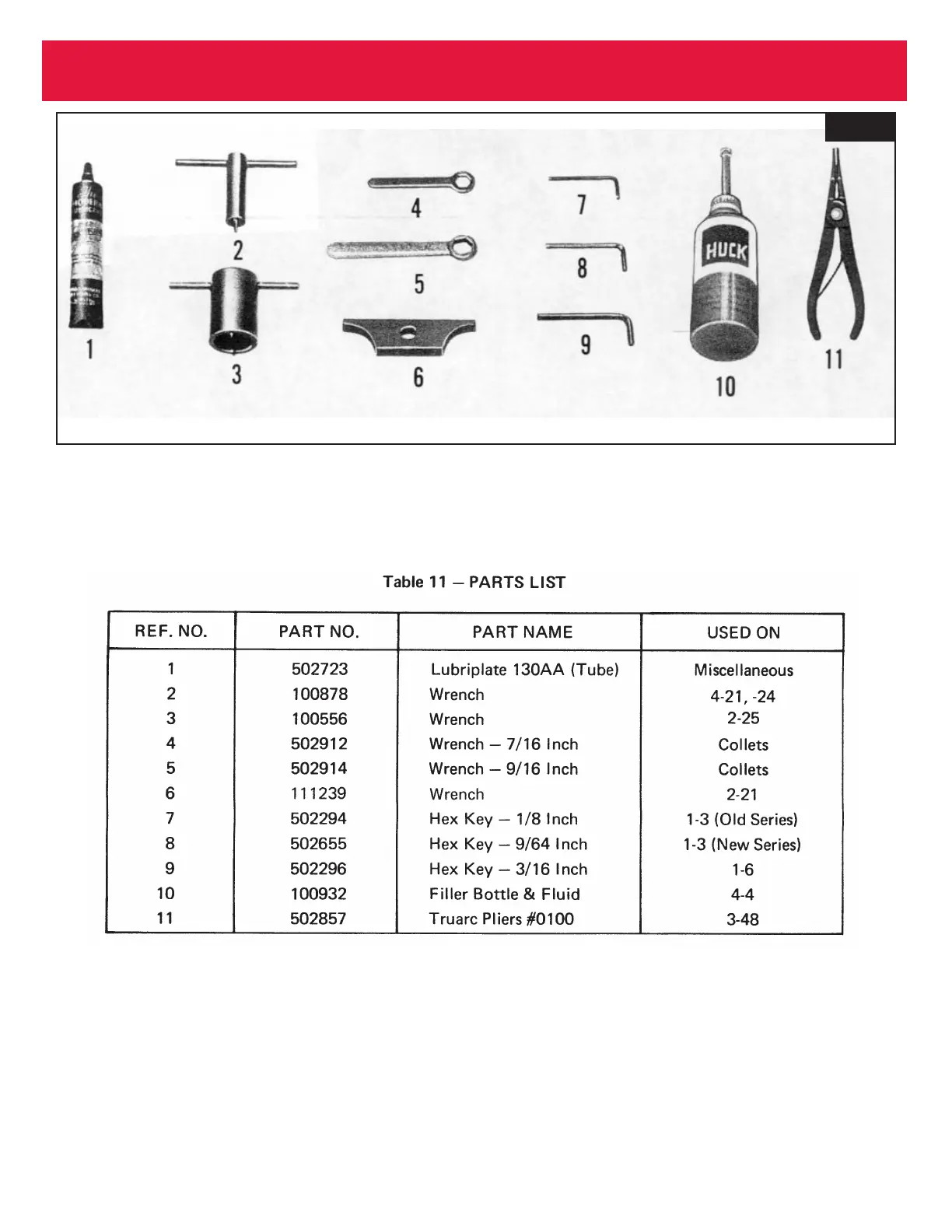

SERVICE TOOL KIT 42-233
Service Tool Kit 42-233 contains the tools re-
quired ( in addition to common screwdrivers,
etc.) to disassemble and reassemble the
Model 200 Installation Tool.
Fig. 11
