Alcoma ZENITH 80 - Page 15


MicrowaveradiorelaylinkZENITH80 
 15/52 1.2

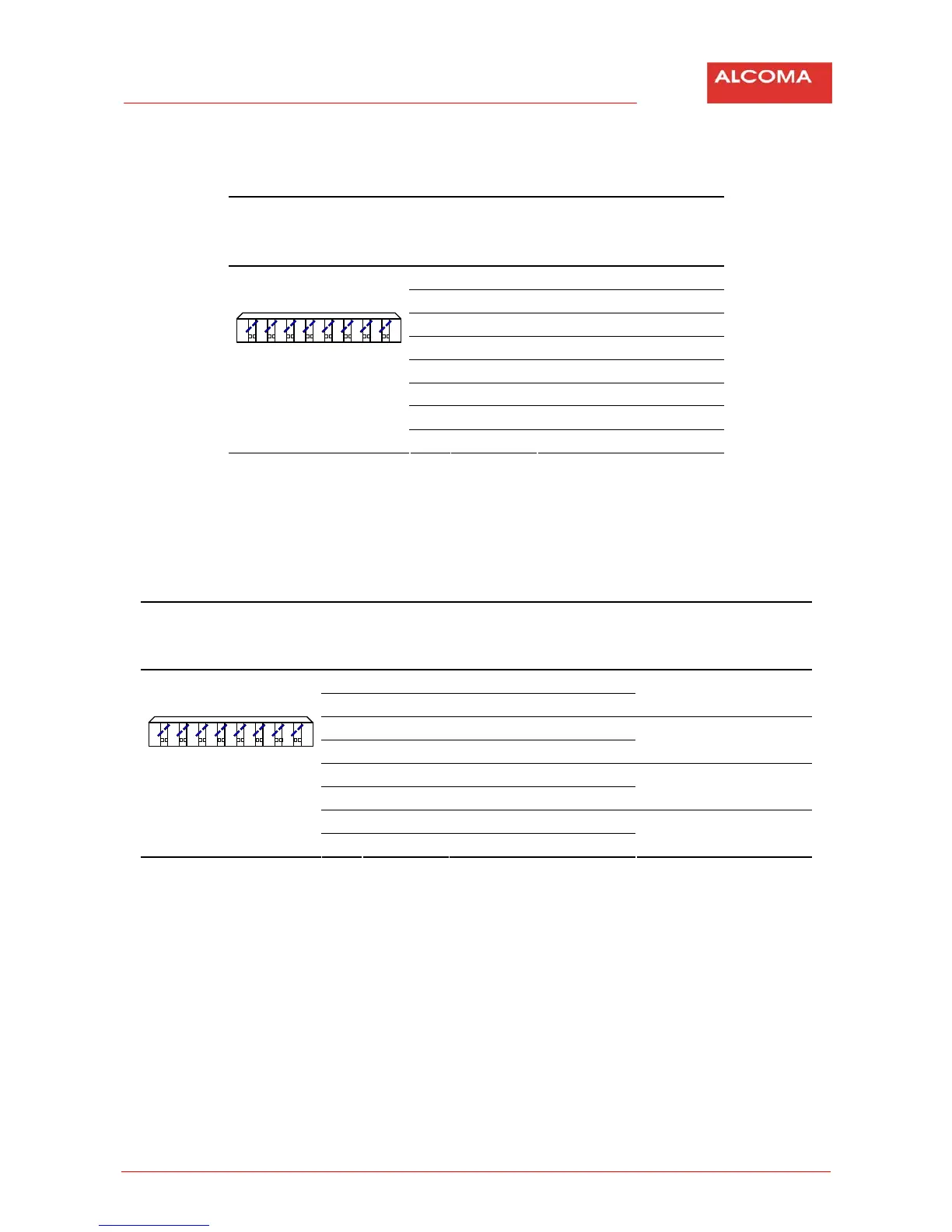

Inputconnector
Cuttingbox„Krone“fortheline2
Themarkingofcable
conductors
Wiring Pins Description
S‐STPCat7
1 D‐ Brown
2 D+ White
3 C‐ White
4 C+ Blue
5 B‐ Orange
6 B+ White
7 A‐ Green


1
8
8 A+ white
ForsimplerdescriptionthetabledoesnotconsidertheactivefunctionsAUTOMDIX
Table4 Theoutdoorunit‐cuttingbox“KRONE“fortheline2


Cuttingbox"Krone"fortheline3+power
Themarkingofcable
conductors

Powerfeeding
Wiring Pins Description
S‐STPCat7
1 D‐ Brown
2 D+ White
+
3 C‐ White
4 C+ Blue
‐
5 B‐ Orange
6 B+ White
+
7 A‐ Green


1
8

8 A+ white
‐
Shielding S1 ÷ S4 for the cable ACOME S‐STP Cat 7 is connected to ground through the metal input
grommet.
Table5 Theoutdoorunit‐cuttingbox“KRONE“fortheline3+power

